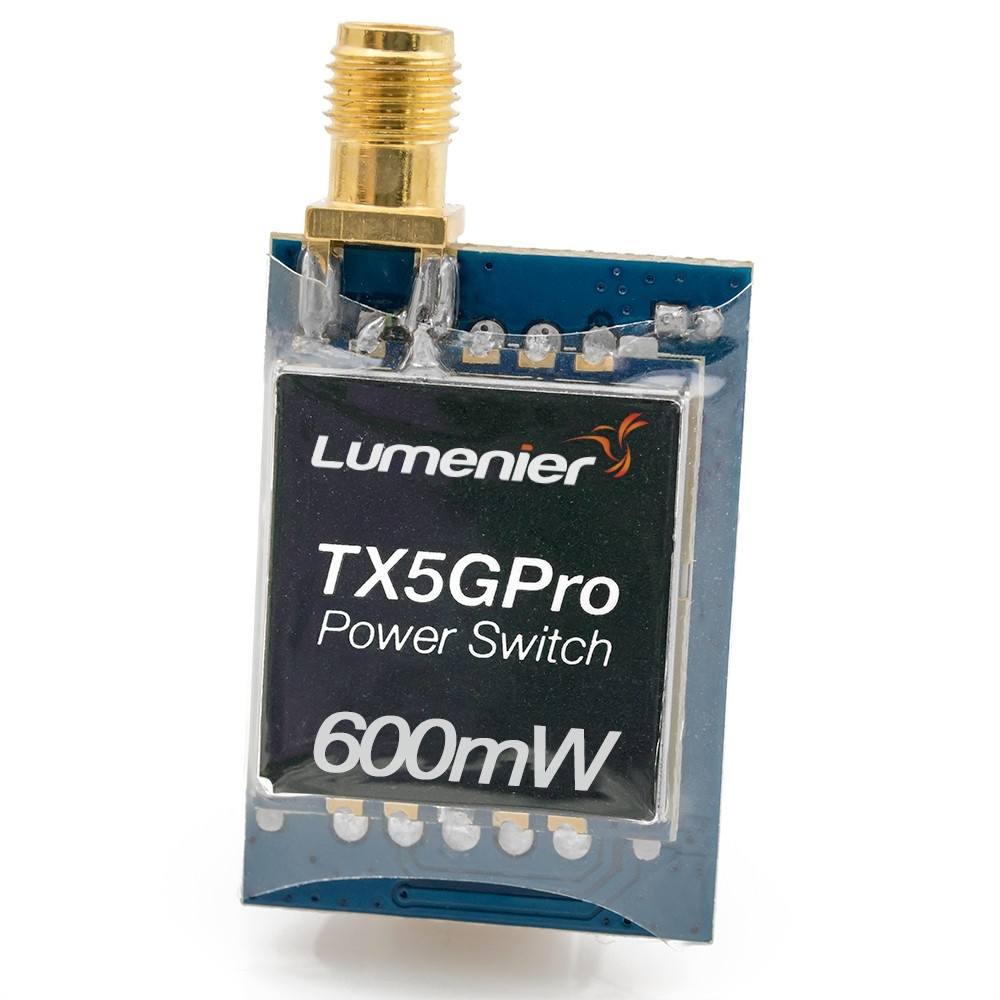

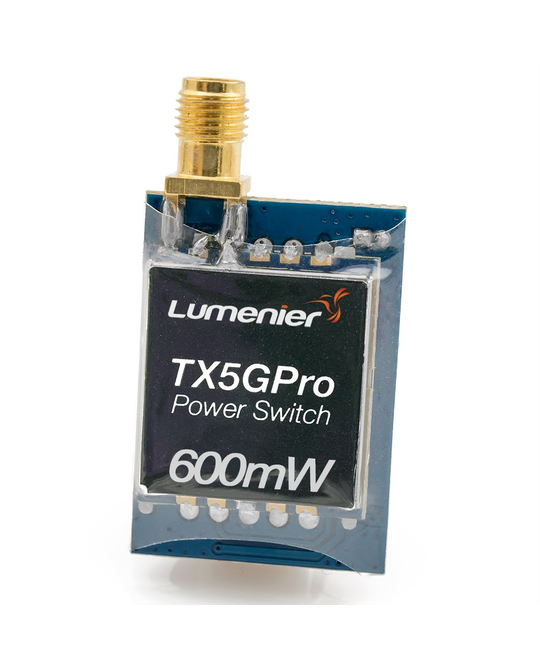

TX5GPro Mini 600mW 5.8GHz FPV Transmitter with Power Switch

$99.90
Code:GF4391

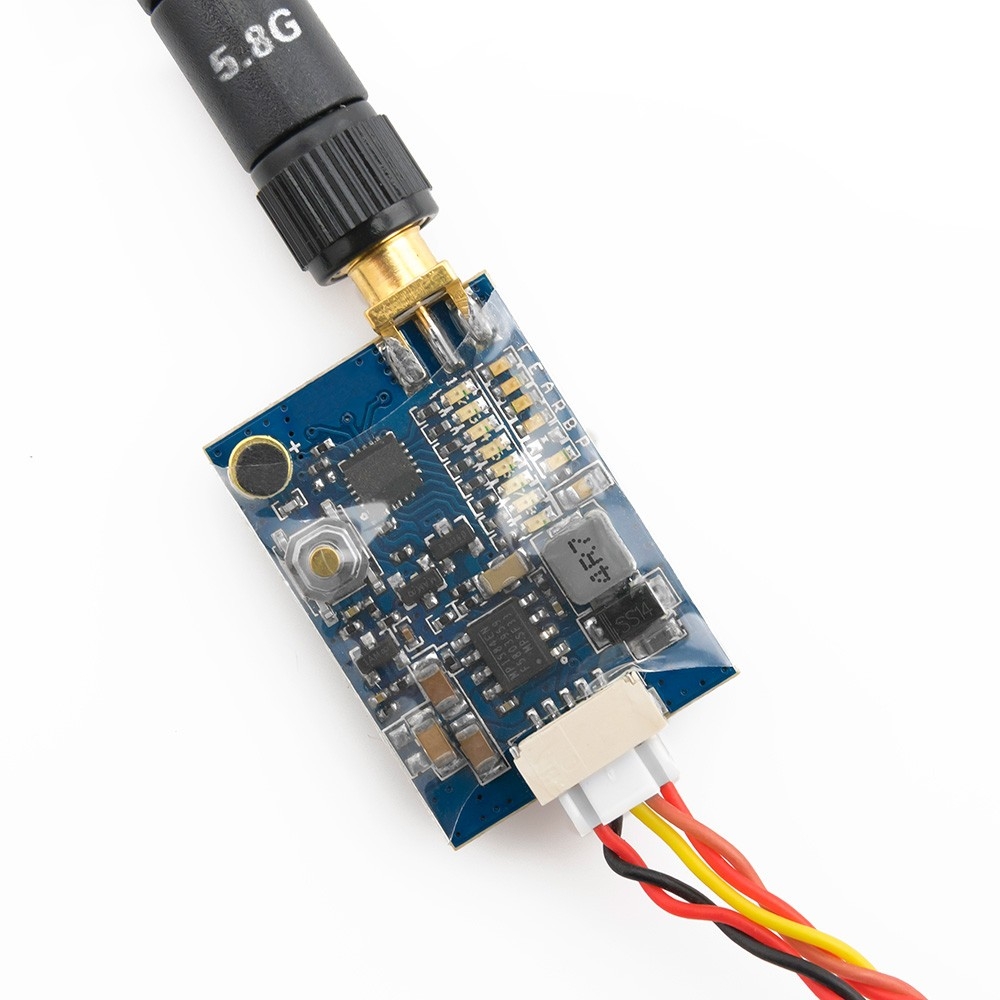

The Lumenier TX5GPro Mini 600mW 5.8GHz FPV Transmitter with Power Switch is small in size and big on power. Toggle the RF power, perfect for FPV racing.

The Lumenier TX5GPro Mini 600mW 5.8GHz 32CH FPV video transmitter is the perfect VTX for long range FPV, and FPV racing where you need the extra power.
The new Pro series of transmitters feature a RF toggle switch, meaning you can power on your aircraft without broadcasting your FPV signal. Now you can get the benefit of an easy to use press button transmitter combined with the peace of mind that you won't interfere with other FPV signals when powering on your aircraft while on the ground! To start the RF transmission simply power your TX and then press and hold the function button for 2 seconds. A green LED will indicate that the TX transmitter is actively broadcasting. In addition the Pro series includes a new and upgraded on-board 5v regulator. This new regulator can handle the high current spikes generated by newer ESCs that have aggressive braking enabled.

The high output 600mW transmission power means longer range and better signal penetration compared with lower power transmitters. The TX5GPro has 32 channels including the new Raceband frequencies. Our friends from ImmersionRC first divided the 5.8 band into 8 channels evenly spread out 37MHz from each other, which allows more racers flying at the same time on the same band. Lumenier Raceband transmitters are fully compatible with FatShark and ImmersionRC receivers. The Tx includes a 5v output to power FPV cameras and an on-board microphone to transmit audio to your receiver.

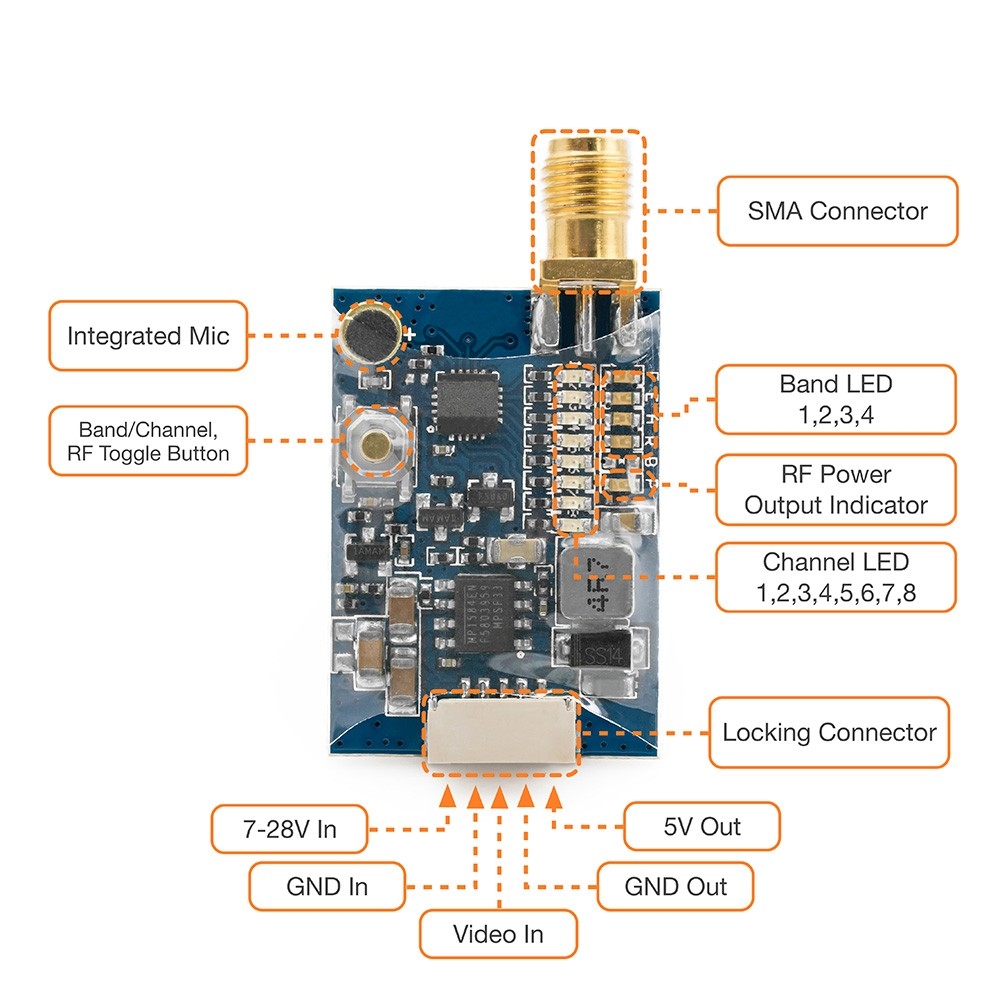

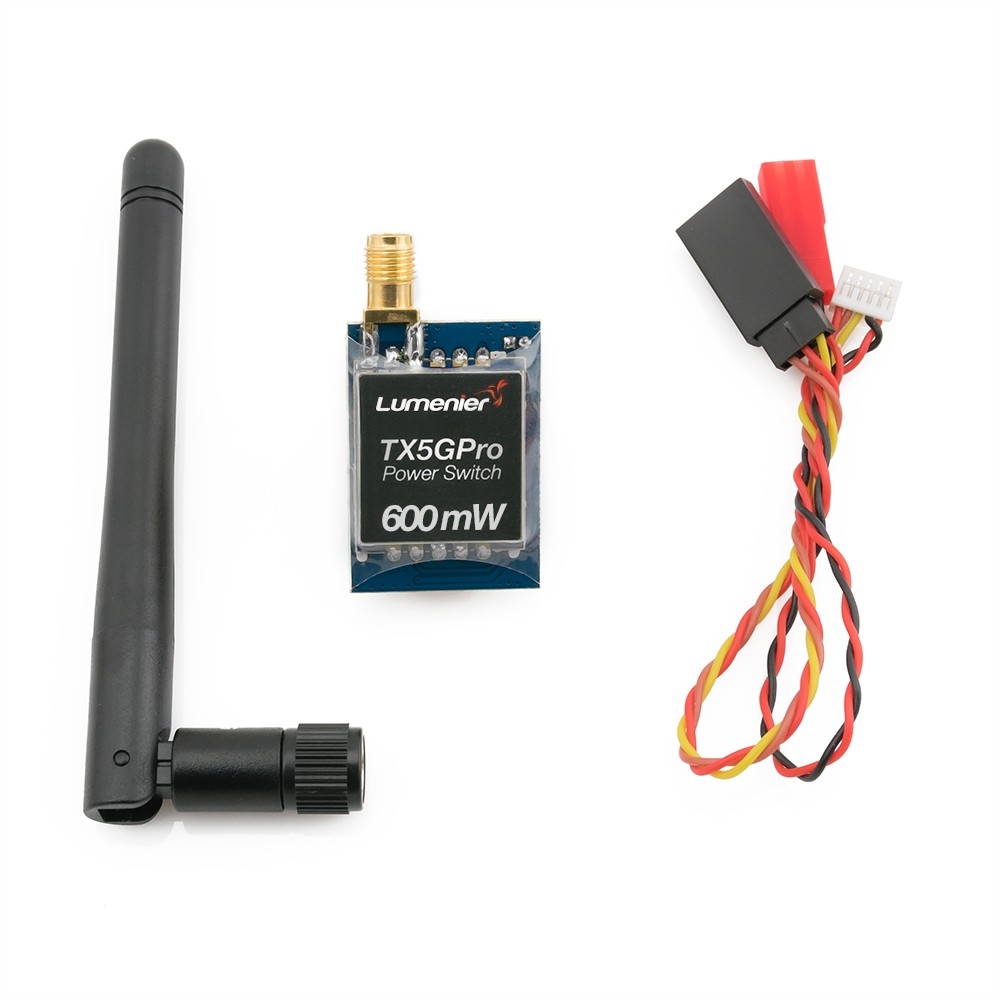

The TX5GPro features an easy to use single button, LED interface. It also comes with a clean pre-wired harness, and only weighs 7.5g! This transmitter outputs a lot of power, so mount it in an area where will have good air flow.

Features

  • 32 channels: Covers 4 Bands
  • Intuitive and easy to use button and LEDs for frequency selection
  • Provides 5v power output for FPV cameras (New upgraded voltage regulator)
  • Small sized and light weight
  • Transmitter frequency: 5658-5925MHz with 600mW power output
  • Transmitting distance >  2000m (open area)
  • SMA Antenna connector
  • Dimensions: 32*22*9mm (not including SMA adapter)
  • Audio: Includes on board microphone

  • Frequency Selection:
    • Press and hold button for 2 seconds to toggle RF power output.
    • Press button once to change Channel.
    • Double press button to change Band.

Frequency and channel table:

Band Channels
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
 Band 1   FS / IRC 5740 5760 5780 5800 5820 5840 5860 5880
 Band 2   Lumenier / DJI  5705 5685 5665 5752 5885 5905 5925 5866
 Band 3   Boscam A 5865 5845 5825 5805 5785 5765 5745 5725
 Band 4   Raceband 5658 5695 5732 5769 5806 5843 5880 5917

Compatible with Fatshark, ImmersionRC, Boscam, Foxtech and other generic branded FPV receivers within the same frequency range


Price: $99.90
Availability:
Add to wishlist
Specs
  • Operating Voltage: 7 - 28V
  • Supply current: 260 mA
  • Operating Temperature: -10 +85 C
  • Video Band Width: 5-6 MHz
  • Audio carrier Frequency: 6.5 MHz
  • Video Input Level: 0.8,1.0,1.2 Vp-p
  • Video Input Impedance: 75 Ohm
  • Audio Input Level: 0.8 ,2.0 Vp-p
  • Audio Input Impedance: 10K Ohm
  • Weight: 7.5g (without antenna)
  • Antenna Connector:SMA Female Connector
  • Video Format: NTSC/PAL
