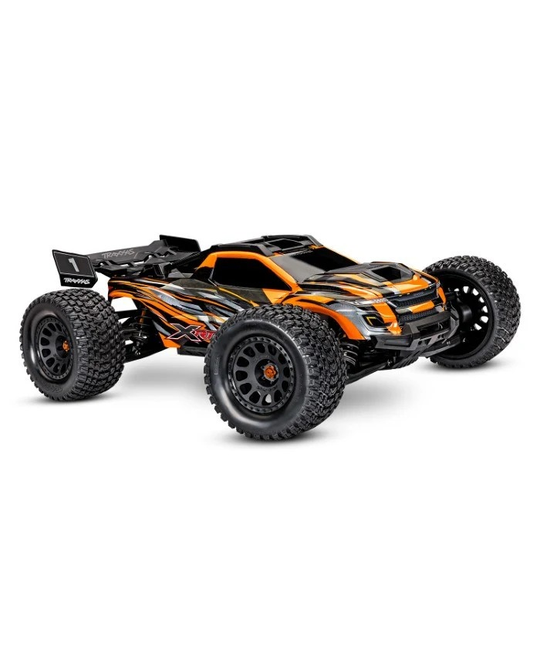

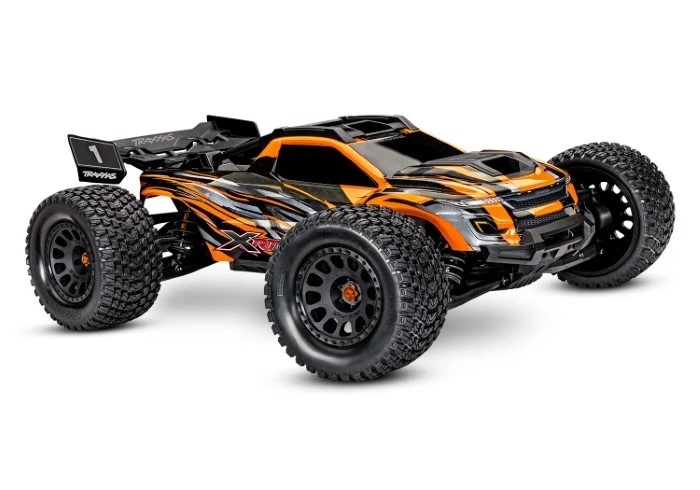

XRT Brushless Electric Race Truck VXL-8S, Orange

The Traxxas XRT® fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed.



Built For Speed And Handling
XRT was engineered with a focus on speed, handling, and performance. XRT’s low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+MPH.

Proven Tough All-Metal Driveline
XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminum center shaft. It’s a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx.

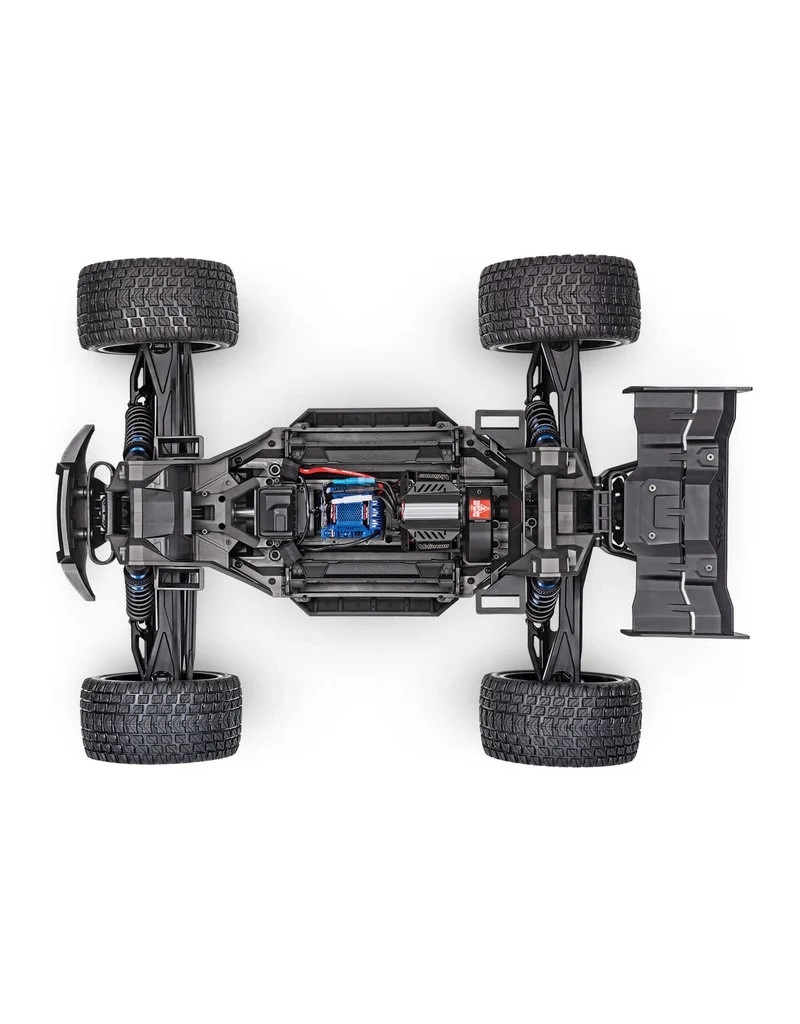

Race-Inspired Low-CG Chassis
XRT’s performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components.

Patent-Pending Clipless Body
XRT’s patent-pending clipless body easily removes and installs in just seconds and yet it locks in place with incredible strength and security. The system uses a cage inside the body to minimize flex while external skids are strategically placed to protect the body.

Gravix® Race Tires
XRT’s Gravix® race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision.

VXL-8s Power System
Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire RPM range. More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.

Specifications:

Length (including wing): 31.41 inches (798mm)
Front Track: 23.43 inches (595mm)
Rear Track: 23.43 inches (595mm)
Ground Clearance: 1.93 inches (49mm)
Weight: 19.70 pounds (8.94kgs) - without body
21.03 pounds (9.54kgs) - with body
23.87 pounds (10.83kgs) - with body & two 4s 6700mAh LiPos
Height: 10.15 inches (258mm) - ride height
12.12 inches (308mm) - full droop
Wheelbase: 18.9 inches (480mm)
Shock Length (front): 6.79 inches (173mm)
Shock Length (rear): 6.79 inches (173mm)
Tires (Pre-Glued): 7.4 x 4.0 inches (188mm x 102mm)
Wheels: 4.3 x 5.7 inches (110mm x 147mm)
Speed Control: Velineon® VXL-8s
Motor (electric): Velineon® 1200XL Brushless
with heat sink and dual fan shrouds
Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch (Spur and Pinion): Module 1.0
Chassis Structure/Material: Composite Nylon Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2.4GHz Transmitter with TSM® receiver™
Servo: Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
Top Speed: 60+ MPH with two 4s LiPo batteries and included optional gearing
Skill Level: 5
Battery Tray: 186mm x 51mm x 44mm
Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery (x2)

MODEL 78086-4: XRT™ Brushless Electric Race Truck, with TQi™ Traxxas Link™ Enabled 2.4GHz Radio System, Velineon® VXL-8s brushless ESC (fwd/rev), and Traxxas Stability Management (TSM)®
