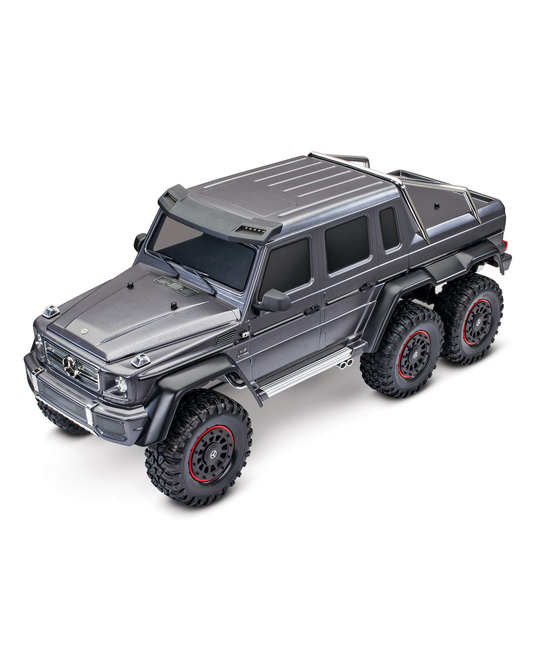

TRX-6 Mercedes-Benz G 63 AMG 6x6 - Silver - 88096-4 S

TRX-6 Scale and Trail Crawler with Mercedes-Benz G 63 AMG 6x6 body:
1/10 scale 6WD electric trail truck, Ready-To-Drive, with TQi Traxxas Link
enabled 2.4GHz radio system, XL-5 HV ESC (fwd/rev), and Titan 550 motor.



The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6x6 with an officially licensed detailed scale replica built on the proven TRX-6 platform. Six drive wheels, three T-Lock remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.

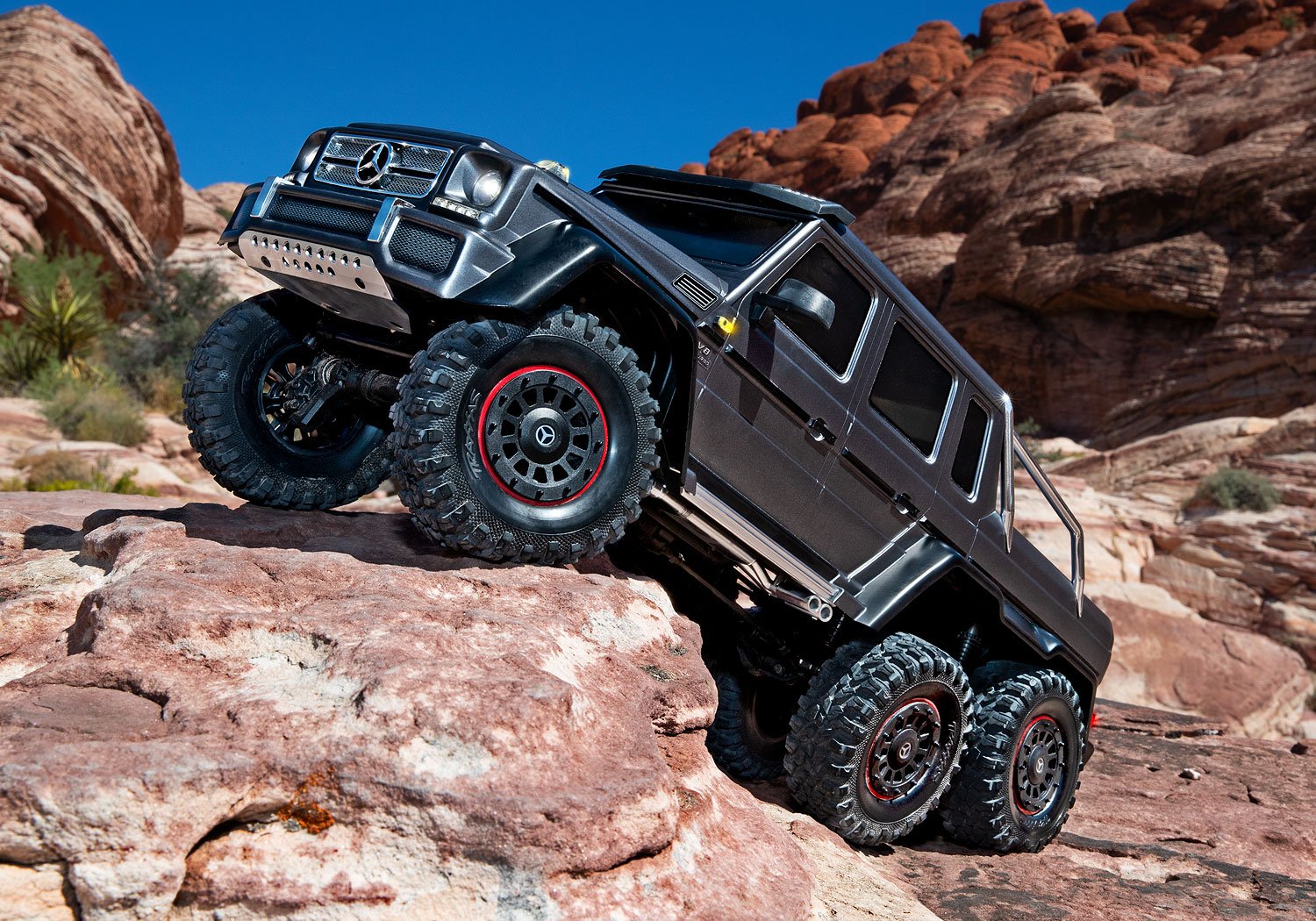

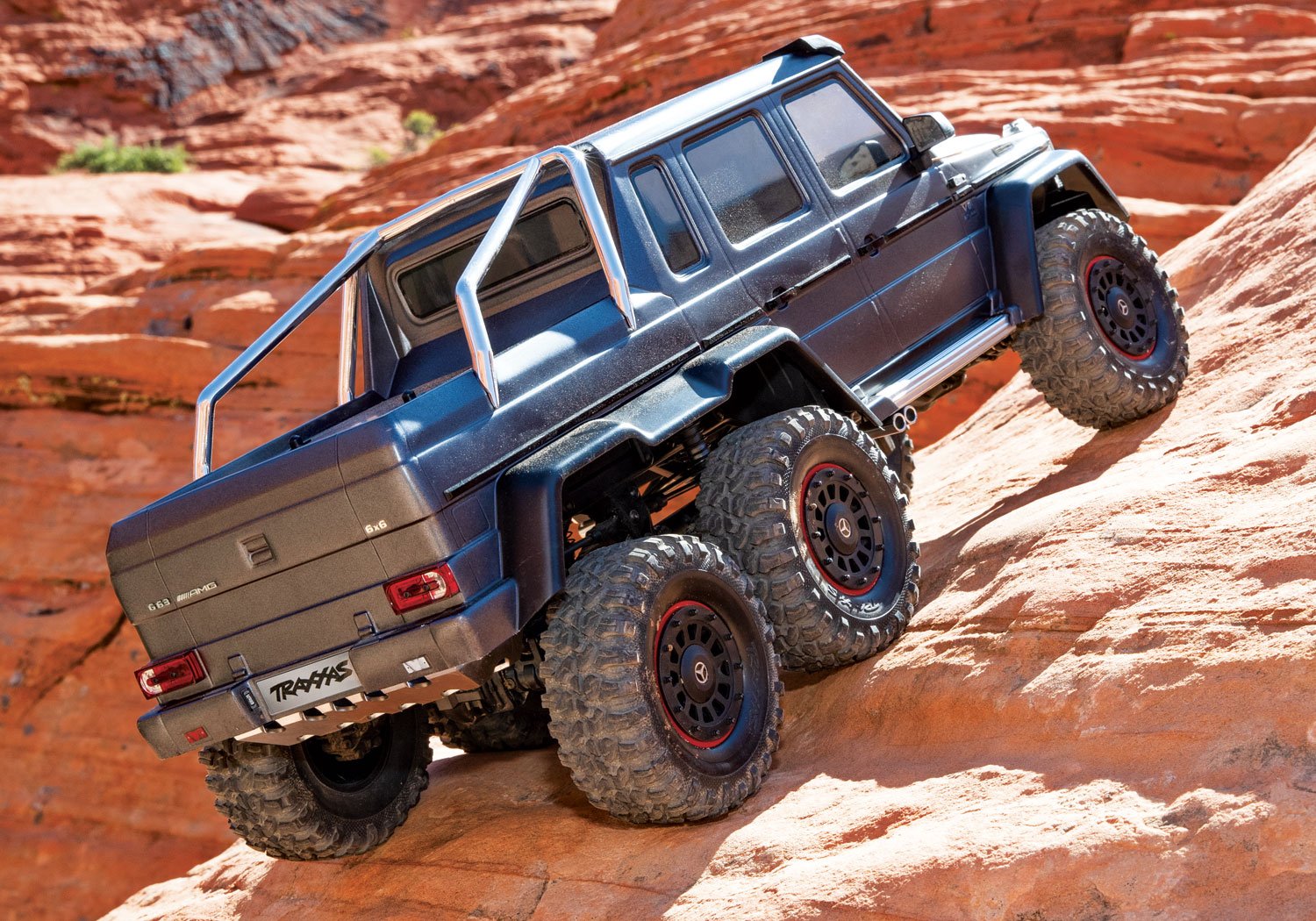

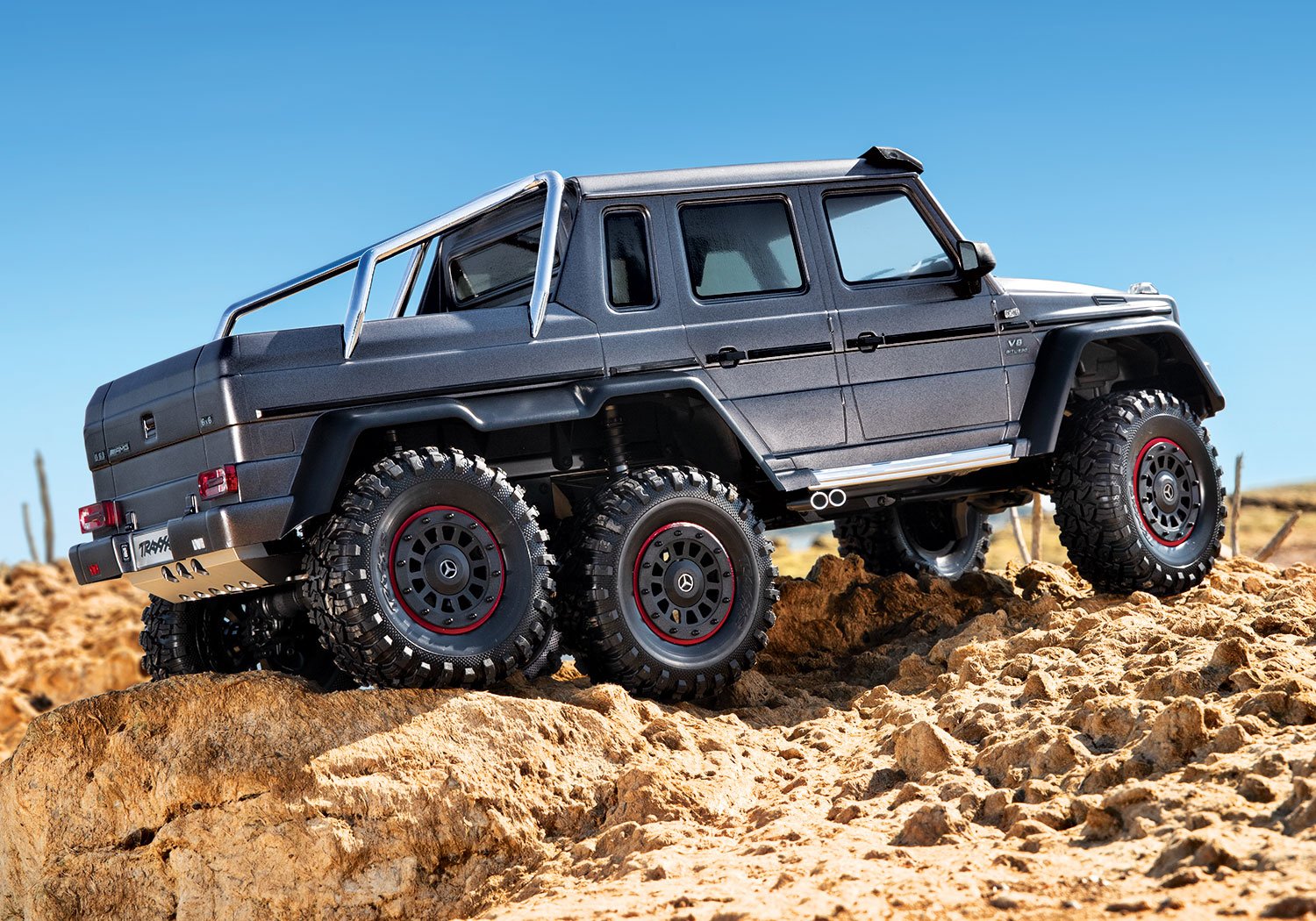

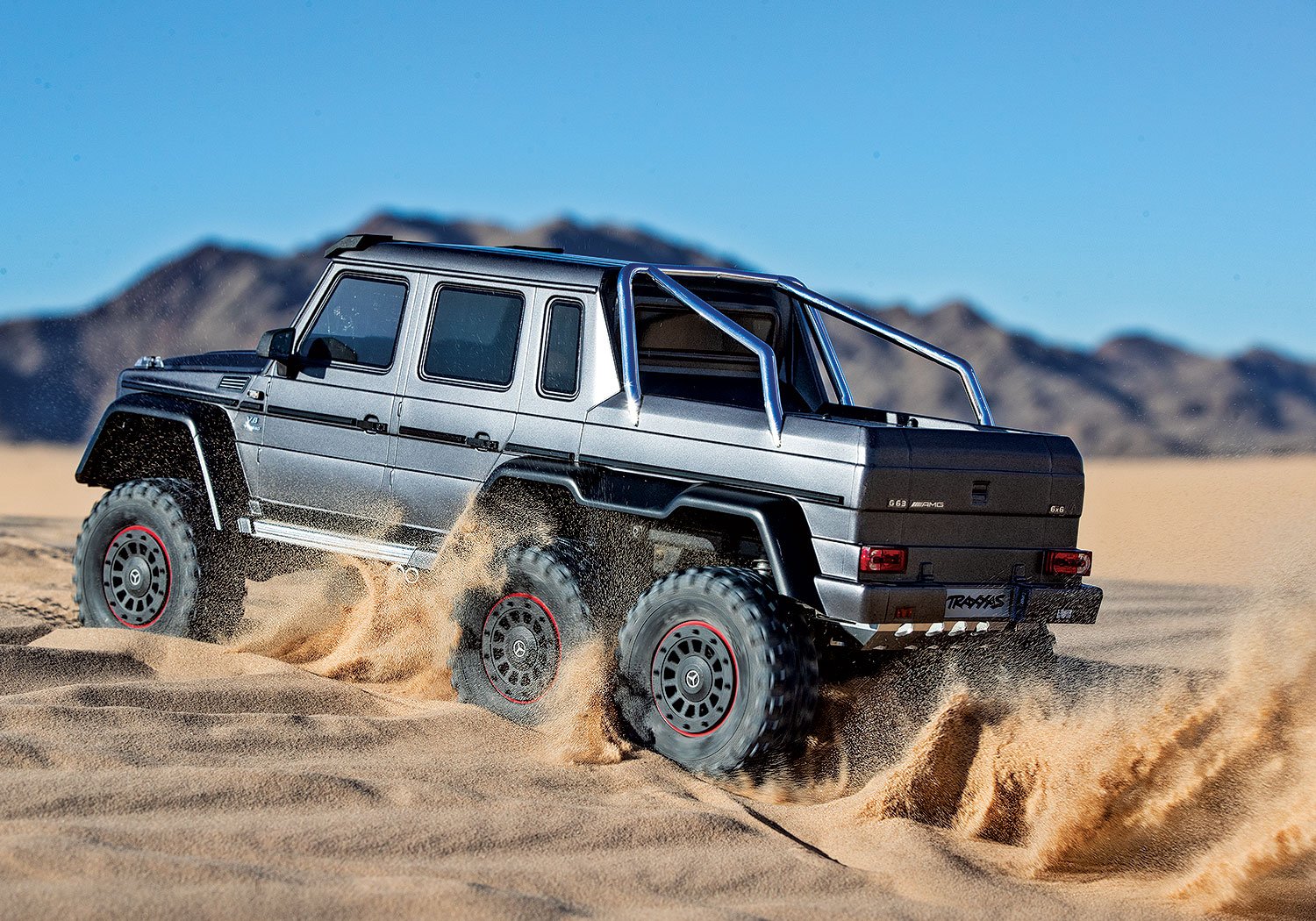

SUPERIOR 6X6 DESIGN

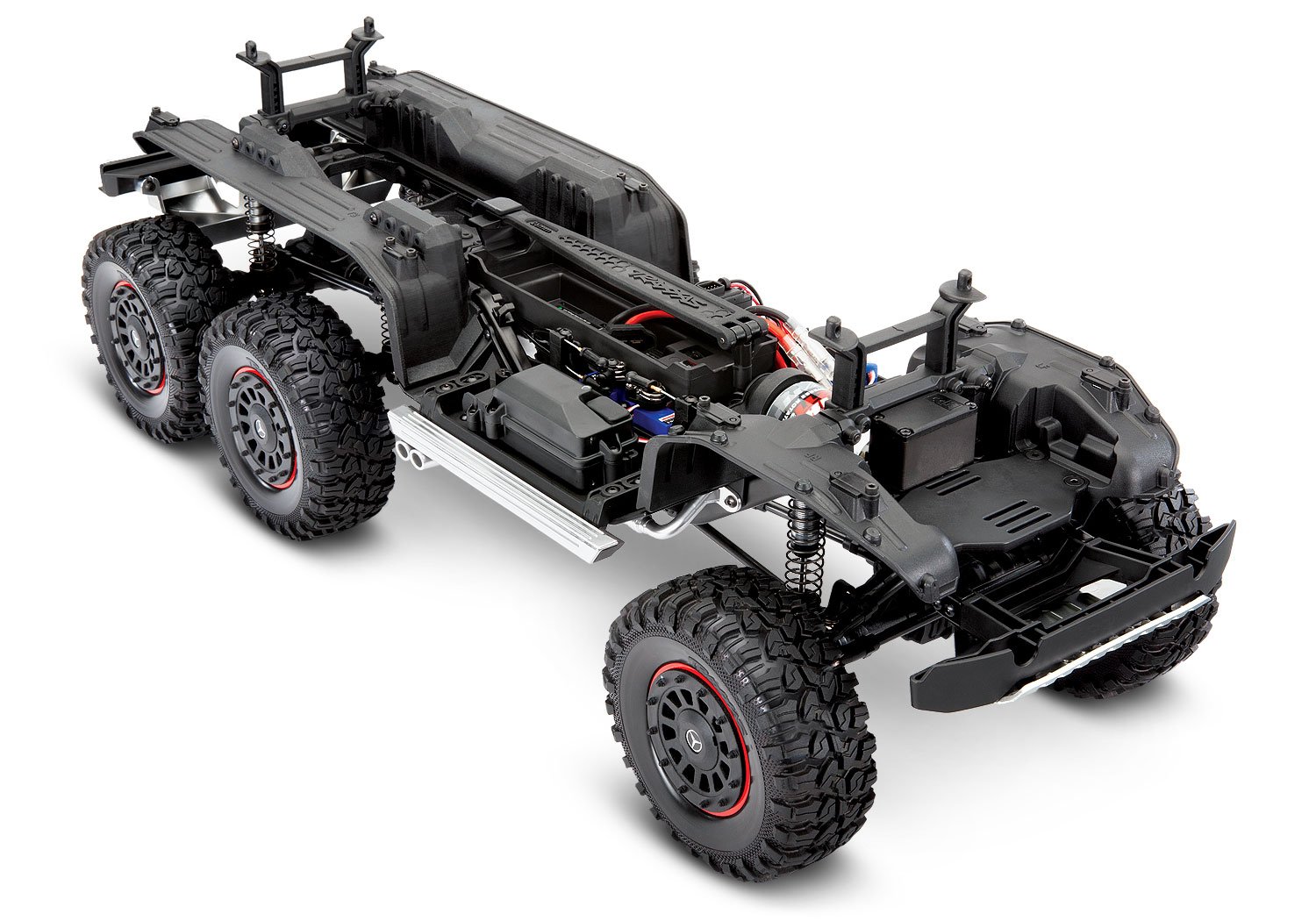

A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.

EXCEPTIONAL BODY DETAIL

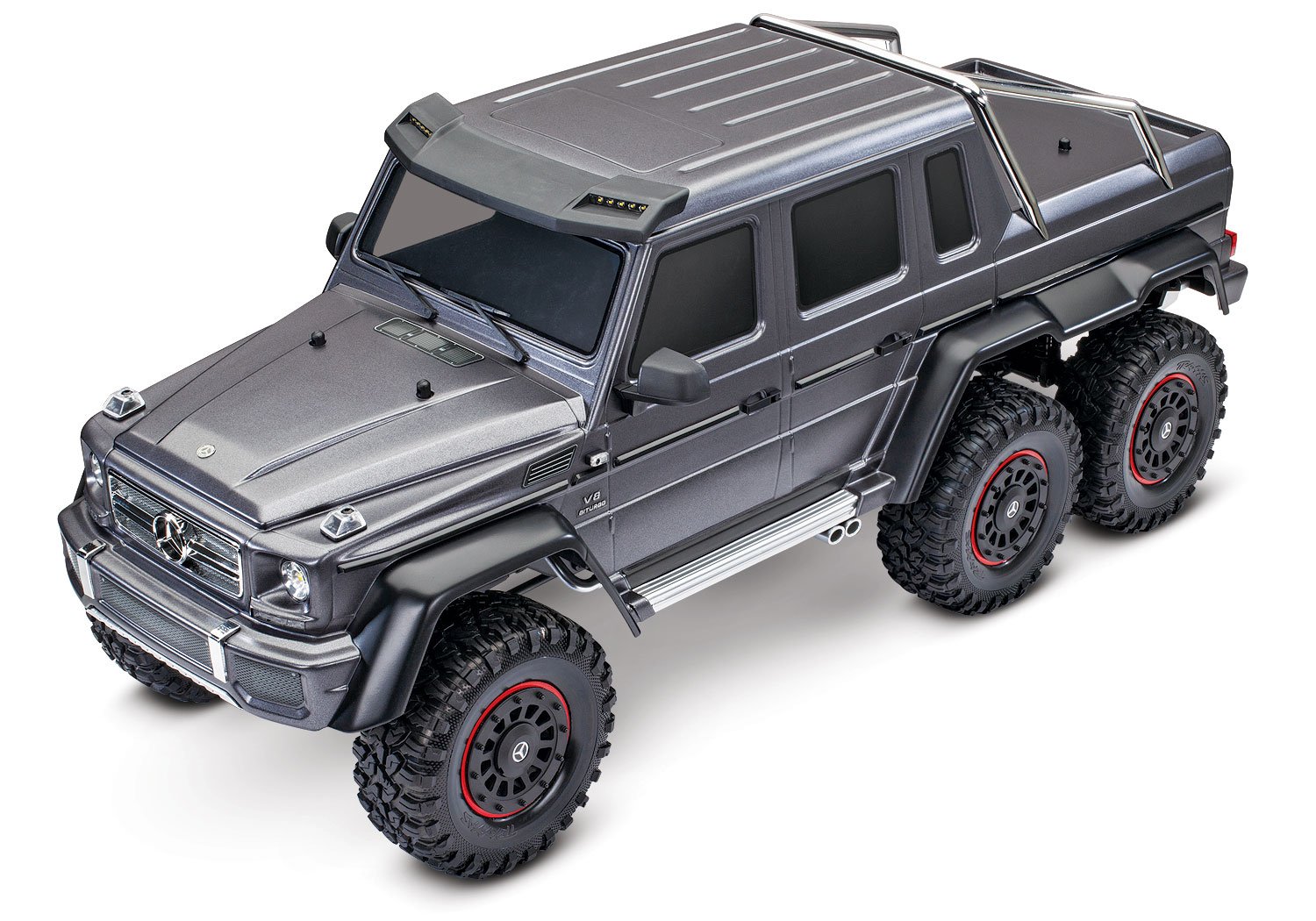

The TRX-6 Mercedes-Benz G 63 AMG 6x6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.

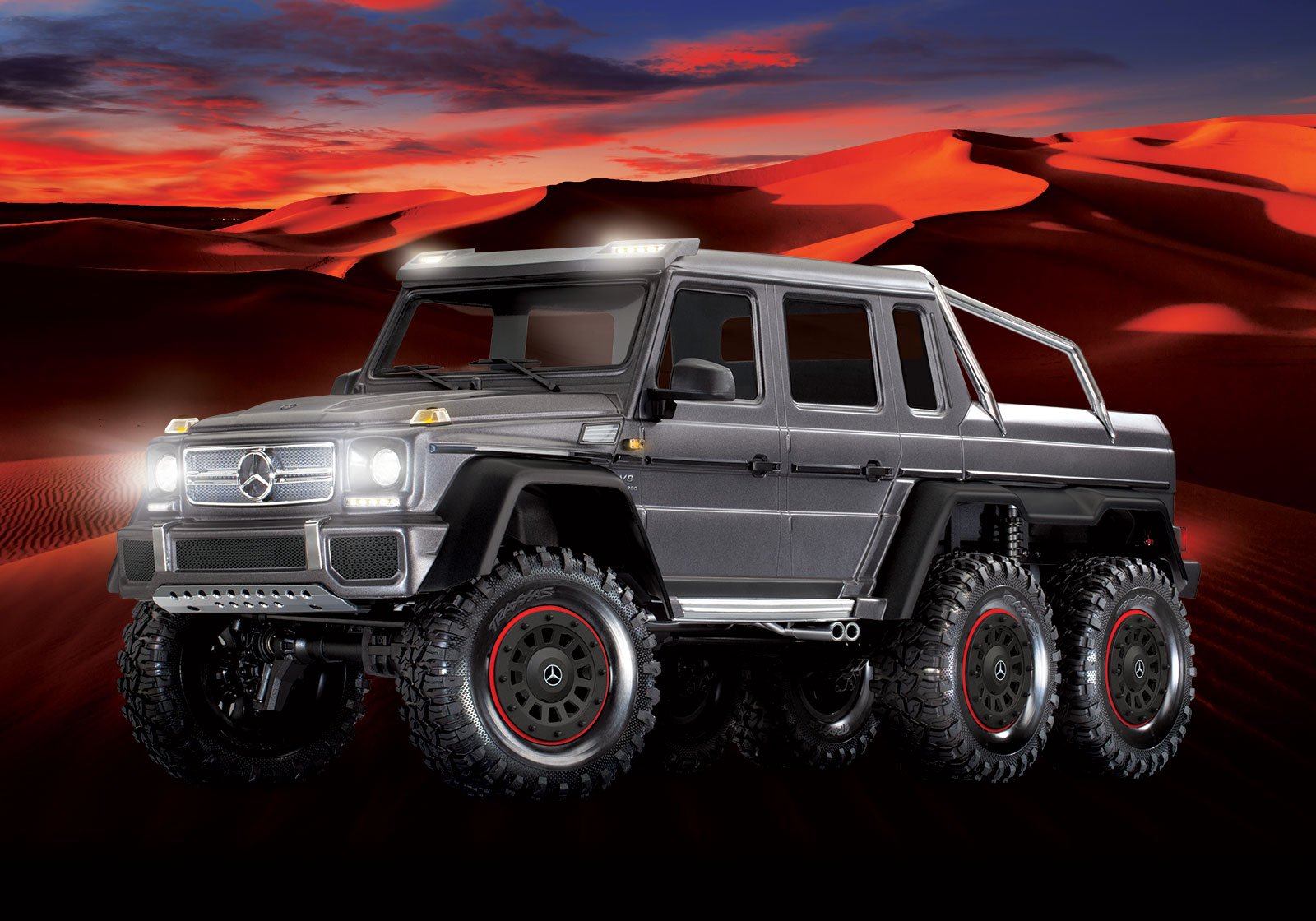

FACTORY-EQUIPPED LED LIGHTING
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.

VEHICLE SPECS - TRX-6
Length: 25.61" (651mm)
Front Track: 9.78" (249mm)
Rear Track: 9.78" (249mm)
Ground Clearance: 3.14" (80mm)
Weight: 8.8lbs (3.99kg)
Height: 10.78" (274mm)

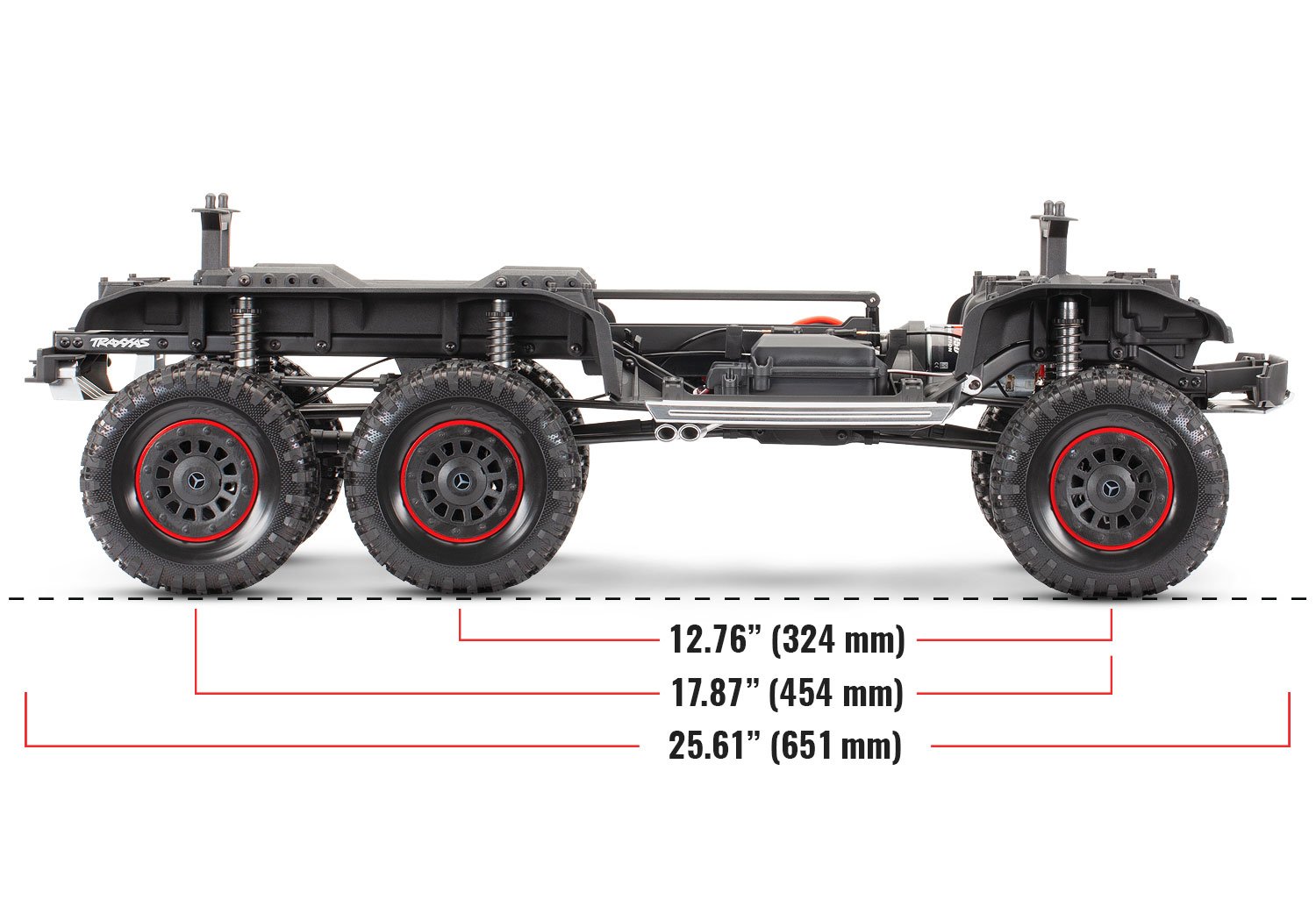

Wheelbase (to intermediate axle): 12.76" (324mm)
Wheelbase (to rear axle): 17.87" (454mm)
Approach Angle: 60°
Departure Angle: 55°
Breakover Angle: 58.93°
Front Shock Length: 3.54" (90mm)
Rear Shock Length: 3.54" (90mm)
Battery Tray: 158.75 L x 47 W x 23/26 H (mm)
Front Wheels: 2.2 x 1.02" (56 x 26mm)
Rear Wheels: 2.2 x 1.02" (56 x 26mm)
Front Tires: 4.64 x 1.89" (118 x 48mm)
Rear Tires: 4.64 x 1.89" (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): Titan 21T Reverse Rotation
Transmission: 2-speed High/Low, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking

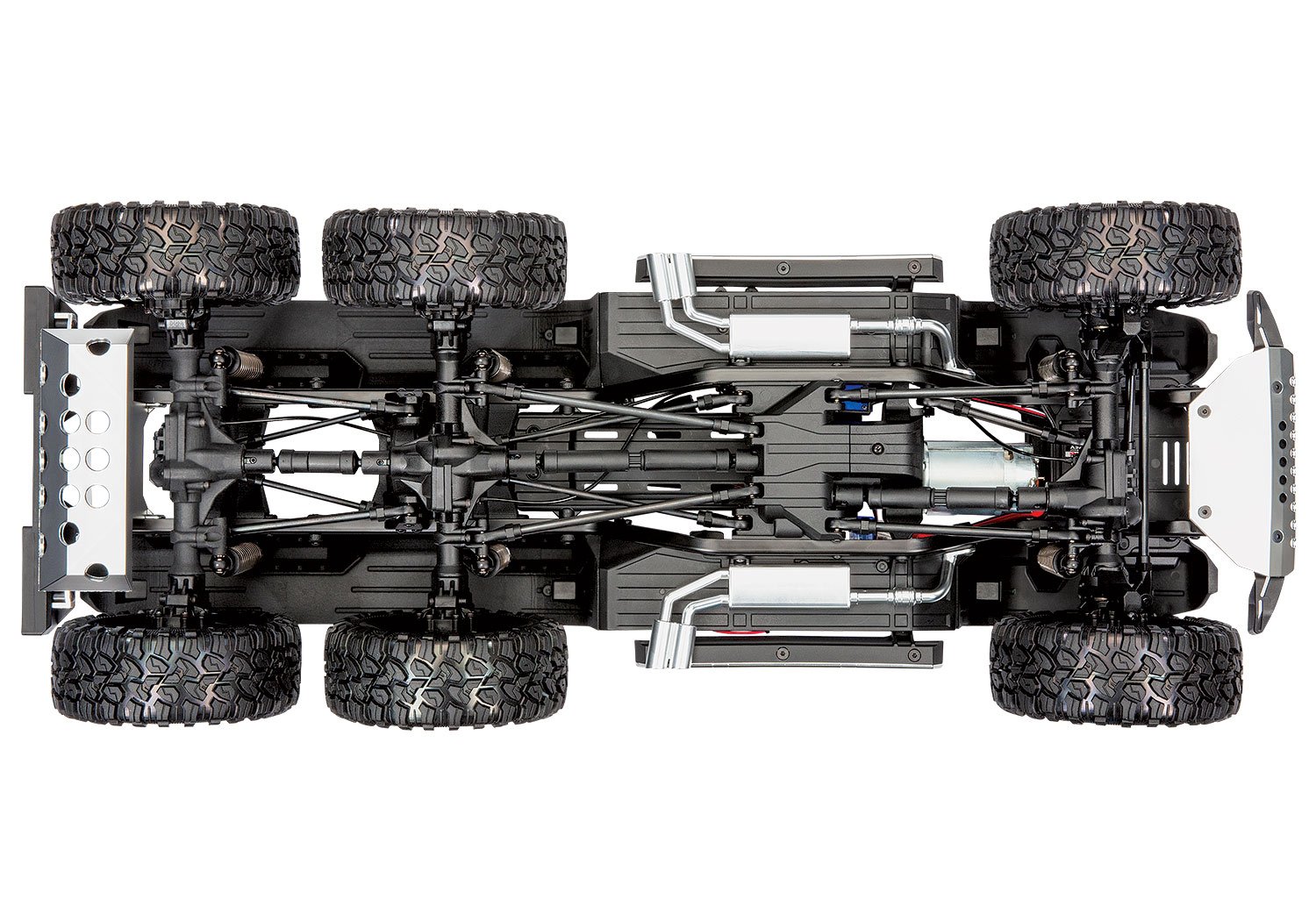

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 6WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi 2.4GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1

MOTOR SPECS - TITAN 21T 550 REVERSE ROTATION
Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V

ESC SPECS - XL-5 HV
Input Voltage: 6-7 Cells NiMH, 2–3s LiPo
Case Size: 1.23 W x 2.18 D x 1.04 H (in)
Weight: 2.6oz (74g)
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5”
Input Harness Wire: 26 Gauge / 14.5”
Transistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Profile selection:
(1) Sport Mode: 100% FWD, 100% brakes, 100% REV
(2) Race Mode: 100% FWD, 100% brakes, no REV
(3) Training Mode*: 50% FWD, 100% brakes, 50% REV
(4) Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
(5) Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set
*Patented
