TRX-4M High Trail - Black - 97064-1

Traxxas 97064-1: TRX-4M High Trail




Scale and Trail Crawler with Chevrolet K10 pickup body: 1/18 scale 4X4 trail truck, fully-assembled, Ready-To-Drive, with TQ 2.4GHz 2-channel transmitter, and ECM-2.5 waterproof electronics.

What’s In The Box:
TRX-4M High Trail model
Licensed ABS hard body
Titan 180 87-turn motor
ECM-2.5 Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD
High quality maintenance tools

What You’ll Need:
Four AA alkaline batteries for the transmitter

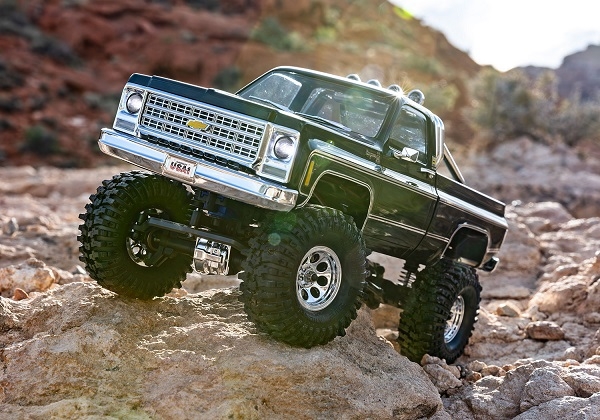

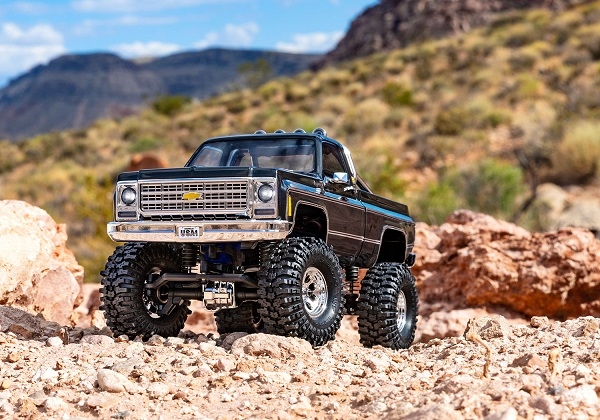

Officially Licensed Chevrolet K10 Clipless Body
Highly-detailed ABS hard body
Molded-in color won’t chip or flake
Tough fender flares and rock sliders
Realistic side mirrors, door handles, roll bar, & wipers
LED headlights
Heavy-duty latching clips
Hold tightly on the trail
Release in just seconds
ECM-2.5 Electronic Control Module
Incorporates ESC, receiver, and LED controller in one chassis
Fully waterproof for all-weather fun
Three drive profiles
Sport Mode — forward / brake / reverse
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set one-button setup
Built-in Pro Scale LED functionality
Two stage low voltage protection (LVD)
Motor overload protection
TQ 2.4 GHz Transmitter
Full-size 2-channel transmitter
All-day comfort with precise long-range control
Titan 180 87-Turn Brushed Motor
Fixed gear mesh doesn’t require adjustment
Forward mounting position for improved crawling dynamics
Extended Heavy-Duty Steel Ladder Frame
Deep C-channel design
Thicker center section for maximum rigidity
Rails run from bumper to bumper
Drivetrain
Full-time shaft-driven 4-wheel drive
Solid steel axles
Spool-equipped front and rear axles
Heavy-duty CV center driveshafts
Low-CG Battery Tray
Concentrates weight lower for improved stability
Wide rubber strap secures battery in place
Optional Transmission Ratios (sold separately)
Optional Low Range or Speed Gearing transmissions
Modular design swaps out in minutes
Steering
Heavy-duty 2065T steering servo
Metal main gear
Superior 45° steering angle
Direct steering (no servo saver)
Lifted High Trail Suspension
Revised shock towers
Triangulated 4 link front and rear
Heavy-duty rod ends
Oil-Filled GTM Shocks
Provides smooth controlled damping
Realistic driving body movements
Adjustable pre-load spacers
Easily refreshed with available rebuild kits
Wheels and Tires
1″ Replica 8-hole chrome mag wheels
7 mm hex
Pre-mounted Mickey Thompson Baja Pro XS tires
Trail-tuned rubber compound
Battery and Charger Included
High-capacity 2-cell LiPo battery with iD
7.4 volts
750 mAh for over an hour of run time
2-amp USB-powered charger
iD technology for faster, safer charging
Low-Maintenance Self-Lubricating Bushings
Durable Hex hardware
Batteries & Charger are included, these are the compatible batteries and chargers:

Compatible Lipo Batteries:

Traxxas 2821 750mAh 7.4V 2-Cell 20C LiPo Battery



Length: 10.6 inches (269 mm)
Front Track: 5.0 inches (127 mm)
Rear Track: 5.0 inches (127 mm)
Center Ground Clearance: 1.57 inches (40 mm)
Weight (with battery): 1.03 pounds (468 g)
Height: 5.0 inches (127 mm)
Wheelbase: 6.38 inches (162 mm)
Approach Angle: 62°
Breakover Angle: 51.5°
Departure Angle: 52°
Shock Length (front and rear): 2.0 inches (51 mm)
Hex Size: 7 mm
Differential Type: Fully locked; 2:1 axle ratio
Wheels (front and rear): 1.0″ x 0.49″ inches (25 x 13 mm)
Tires (front and rear): 2.4″ x 1.0″ inches (62 x 26 mm)
Electronic Control Module: ECM-2.5™
(combo ESC, receiver, lighting control*)
Motor (electric): Titan® 180 87T
Chassis Structure/Material: Steel ladder frame with Nylon composite crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-driven 4WD
Steering: Axle-mounted servo
Radio System: TQ™ 2.4 GHz 2-channel transmitter
Servo: 2065T heavy duty waterproof
Skill Level: 1
Battery Tray: 51 mm L X 31 mm W
