1/10 TRX-4 Scale 4X4 Trail/Crawler Truck - Bronco - 92076-4 - Red

Traxxas 92076-4 - 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler

PLEASE NOTE: This model requires a battery and charger to complete (sold separately).



MODEL 92076-4 INFORMATION
1/10 Scale 4X4 Trail Truck with Ford Bronco Body, Fully-Assembled, Waterproof Electronics, Ready-To-Drive, with TQi 2.4GHz 4-Channel Radio System, XL-5 HV Speed Control, Hi/Low Transmission, Remote Locking Differentials, and Painted Body

WHAT'S IN THE BOX
- TRX-4, Ready-To-Race Model
- XL-5 HV Waterproof Electronic Speed Control (Installed)
- Titan 21T Reverse Rotation Motor (Installed)
- TQi 2.4GHz Radio System with Cruise Control (Installed)
- High Quality Maintenance Tools

WHAT YOU'LL NEED (SOLD SEPARATELY)
- Battery Pack: NiMH (4–7 cell) or LiPo (2S–3S) Battery equipped with a Traxxas High Current Connector
- Charger: Traxxas EZ-Peak Live Charger (model #2971) recommended
- 4 x AA Alkaline Batteries for the Transmitter

OVERVIEW
AN OFF-ROAD LEGEND RETURNS

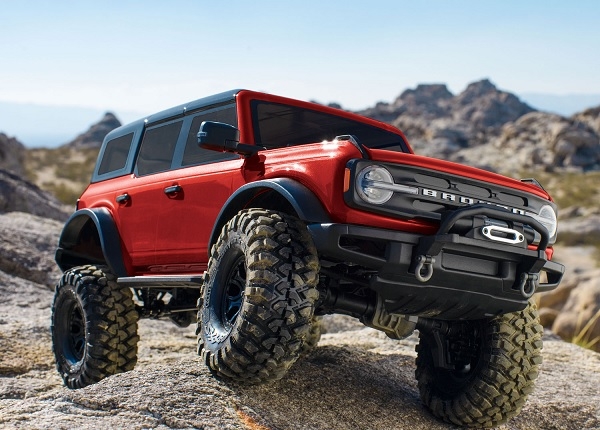

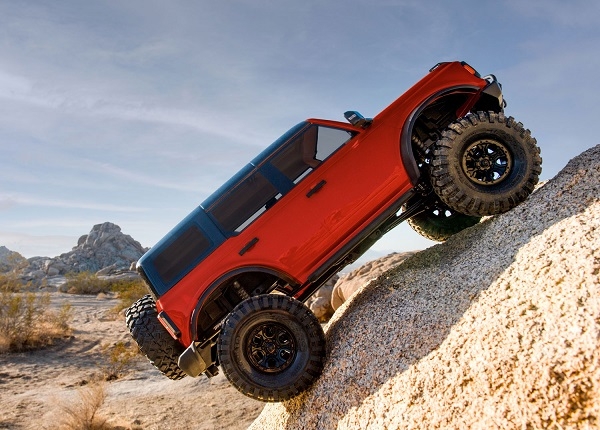

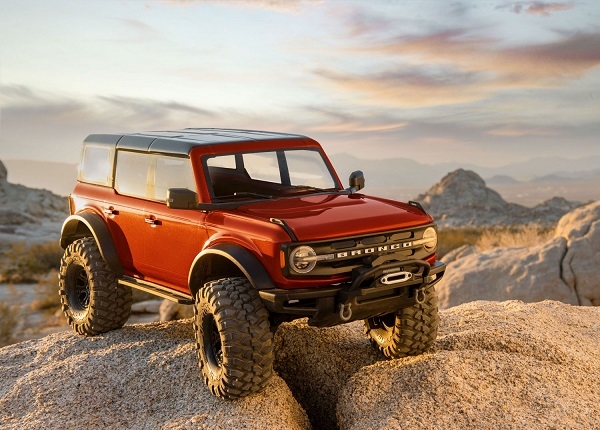

The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

TRX-4 DATA
Vehicle Specs
Length (Overall): 22.98" (584mm)
Length (Chassis): 21.59" (549mm)
Front Track: 9.78" (249mm)
Rear Track: 9.78" (249mm)
Ground Clearance: 3.14" (80mm)
Weight: 6.42lb (2.91kg)
Height: 9.4" (239mm)
Wheelbase: 12.8" (324mm)
Front Shock Length: 3.54" (90mm)
Rear Shock Length: 3.54" (90mm)
Front Wheels: 1.9 x 1.02" (49 x 26mm)
Rear Wheels: 1.9 x 1.02" (49 x 26mm)
Front Tires: 4.64 x 1.89" (118 x 48mm)
Rear Tires: 4.64 x 1.89" (118 x 48mm)
Approach Angle: 52 deg
Departure Angle: 49 deg
Breakover Angle: 58 deg
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (Electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking

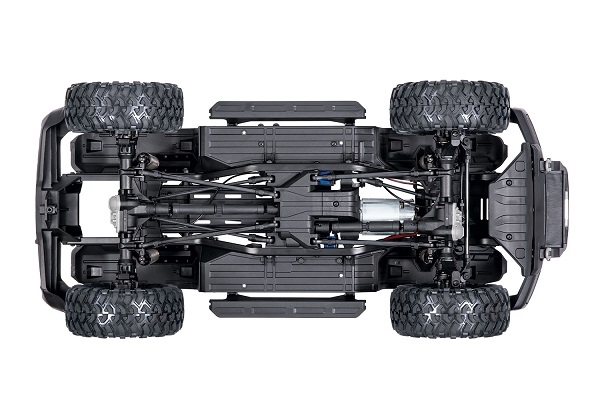

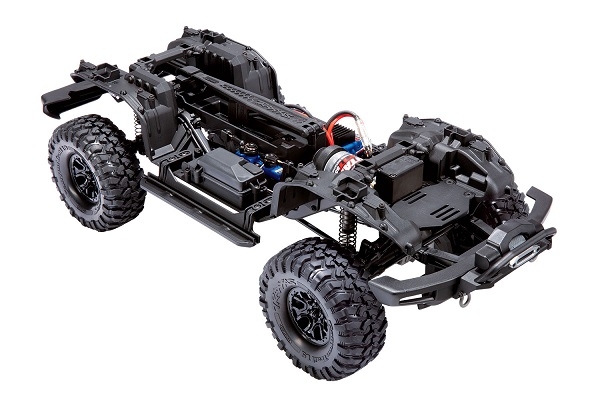

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Motor Specs
Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V

ESC Specs
Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
Case Size: 1.23” W x 2.18” D x 1.04” H
Weight: 2.6oz (74g)
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5”
Input Harness Wire: 26 Gauge / 14.5”
Transistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode: 50% FWD, 100% brakes, 50% REV
Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set

FEATURES LIST

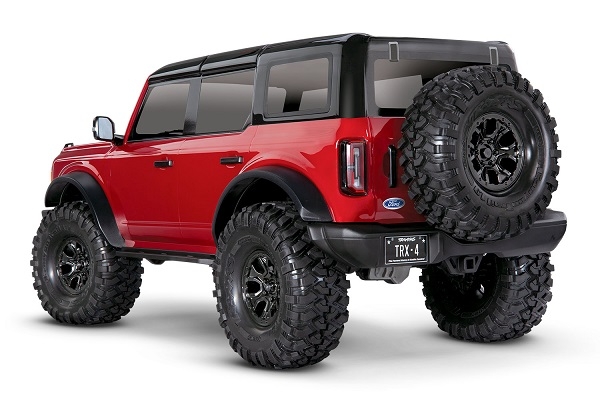

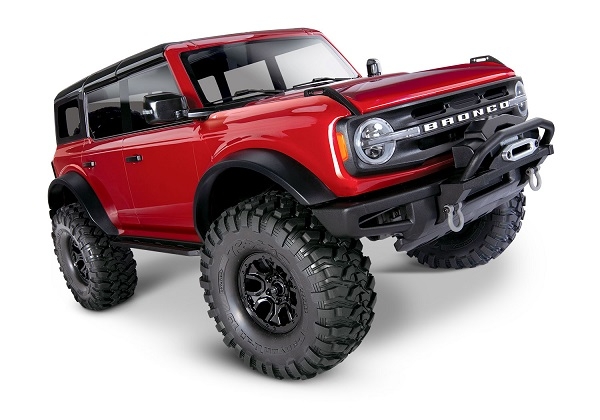

- Officially licensed 2021 Ford Bronco body
- Clipless body mounting
- Trail-tuned XL-5 HV waterproof ESC
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Portal axles
- Rigid steel frame
- Full-time shaft driven 4-wheel drive
- Innovative hinged strap battery compartment
- Two speed high/low range transmission with remote shifting
- Chassis mounted 2075X metal gear digital steering servo
- Heavy-duty suspension rod ends with steel hollow balls
- Aluminum, oil-filled, coilover GTS shocks
- Replica black 2021 Bronco wheels with pre-mounted 1.9” Canyon Trail tires and trail-tuned foam inserts
- TQi 2.4GHz 4-channel transmitter with Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed ball bearings
- Hex hardware with rust-resistant black oxide coating
