Traxxas

1/10 Slash 4x4 VXL - Fox Racing - 68086-4

$799.90
Code:TRX68086-4-FOX

Traxxas 68086-4 - Slash 4X4 VXL: 1/10 Scale 4WD 2.4GHZ Stability Management

The Traxxas Slash defines the short course truck segment and sets the standard for durability, performance, and technology. Innovative features like Traxxas Stability Management® (TSM), modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision and rock-solid durability. Slash 4X4’s extreme Velineon brushless power provides screaming 60+mph speed while the TQi radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash 4X4 elevates short course performance to a whole new level.


Features:

  • Traxxas Stability ManagementTM (TSM)
  • Powered by the Velineon® Brushless Power System
  • Slash 4X4 reaches speeds in excess of 60+mph!*
  • Maxx® Cable 12-gauge wire
  • Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
  • Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
  • Velineon VXL-3s Electronic Speed Control
    • LiPo and NiMH compatible with two-stage low-voltage detection
    • Sport Mode – Forward / Brake / Reverse
    • Race Mode – Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Velineon 3500 Brushless Motor
    • Consistent, high-power output, run after run
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
  • TQi 2.4GHz transmitter
    • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability Traxxas Link is designed for use with Android 4.4 and up or iOS 4.3 and later.
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
  • Durable steel turnbuckles and captured rod ends
  • Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds

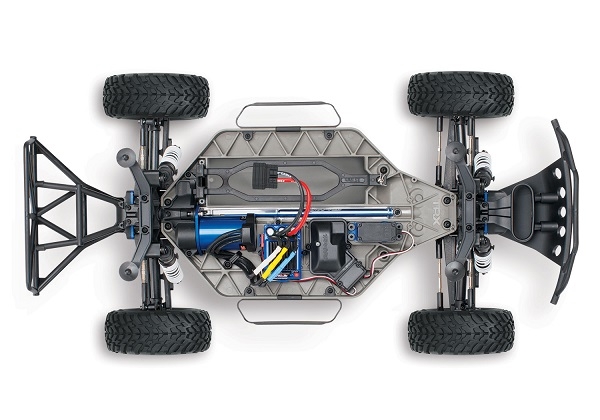

  • Modular simplicity, fiber-composite monocoque chassis
  • Speed control and receiver are securely fastened to chassis
  • Integrated Personal Transponder Mount
  • Versatile battery compartment easily adapts to multiple styles of batteries; 6 or 7-cell NiMh battery packs and various configurations of Lithium Polymer packs are no problem for Slash 4X4
  • Digital high-torque Traxxas #2075 waterproof steering servo
  • Waterproof, o-ring sealed receiver box
  • Sealed, silicone-filled differentials
  • Torque-Control™ slipper clutch system
  • Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
  • White powder coated shock springs feature a responsive spring rate

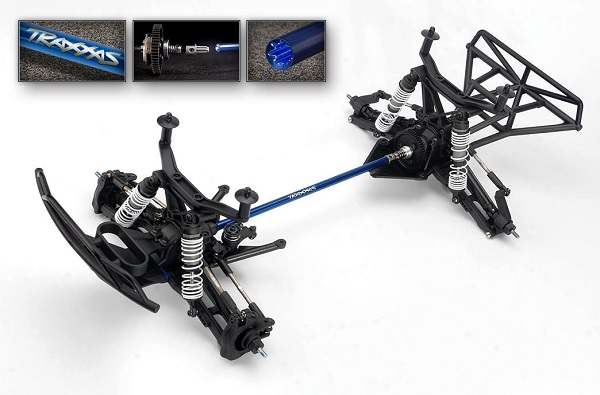

  • Telescoping universal-joint driveshafts
  • Rubber-sealed ball bearings
  • Scale all-terrain front and rear tires offer superior on- and off-road traction
  • Pre-glued all-terrain tires with high-performance foam inserts

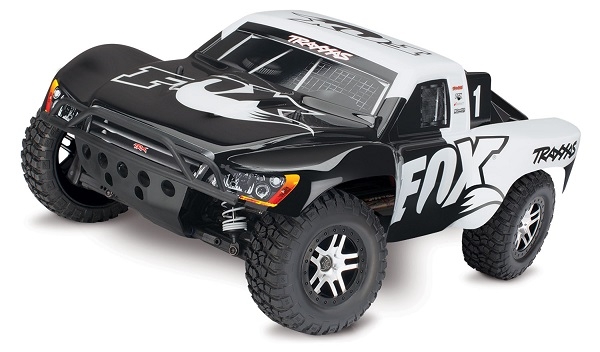

  • ProGraphix® painted race replica bodies
  • Full line of genuine Traxxas accessories available
  • Slash 4X4 is backed by unparalleled Traxxas support and parts availability


Specs:

Length: 23.36 inches (568 mm)
Front Track: 11.65 inches (296 mm)
Rear Track: 11.65 inches (296 mm)
Center Ground Clearance: 2.83 inches (72 mm)
Weight: 93.1 ounces (2.64 kg)
Height (overall): 7.60 inches (193 mm)
Wheelbase: 12.75 inches (324 mm)
Shock Length: Long (front), XXLong (rear)
Tires: Traxxas 2.2 inch pre-glued with foam inserts
Tire Diameter: 4.31 inches (109.5 mm) (front and rear)
Wheels (front/rear): 2.2 inch Split-Spoke, black or red beadlock
Wheel Diameter: 2.2 inches (56 mm) outer
3.0 inches (76 mm) inner
Speed Control Type: VXL-3s™ Electronic Speed Control
Motor (electric): Velineon® 3500 brushless
Overall Drive Ratio: 11.82 (stock, out-of-box)
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Molded tub / Nylon composite
Drive System: Shaft-driven, direct drive 4WD
Steering: Dual-bellcrank with integrated servo saver
Radio System (transmitter)­TQi™ 2.4GHz (2-channel)
Radio System (receiver)­Traxxas Stability Management™ (#6533)
Top Speed: 60+mph*
Skill Level: 1
Battery Tray Dimensions:** 165 mm x 49.5 mm x 23 mm, 25 mm
Required Items: NiMH or LiPo battery, charger, 4 "AA" batteries (for transmitter)


SLASH 4X4 SPEED & SKILL LEVEL CHART
Speed:35+mph40+mph40+mph45+mph60+mph
Pinion/Spur:13/54*18/54**19/5413/54*19/54
Battery:7-Cell NiMH7-Cell NiMH2S LiPo3S LiPo3S LiPo
Nominal Voltage:8.4V8.4V7.4V11.1V11.1V
mAh:4000+ mAh4000+ mAh4000+ mAh5000+ mAh5000+ mAh
Skill Level:12445
*Stock Gearing    **Included Optional Pinion


VXL-3s WATERPROOF ESC SPECIFICATIONS:

Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39 mm x 55 mm x 33 mm
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100 mm
Low Voltage Detection: 2-stage indicators, switchable (on or off)
Thermal Protection: 2-stage thermal shutdown
Profile selection: Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:*
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX input, auxiliary fan
Price: $799.90
