TS 150A ESC -  SK- 300045- 01
Roll over to zoom in or click to enlarge
1

1

Toro

TS 150A ESC - SK- 300045- 01

$215.00
Code:SK-300045-01

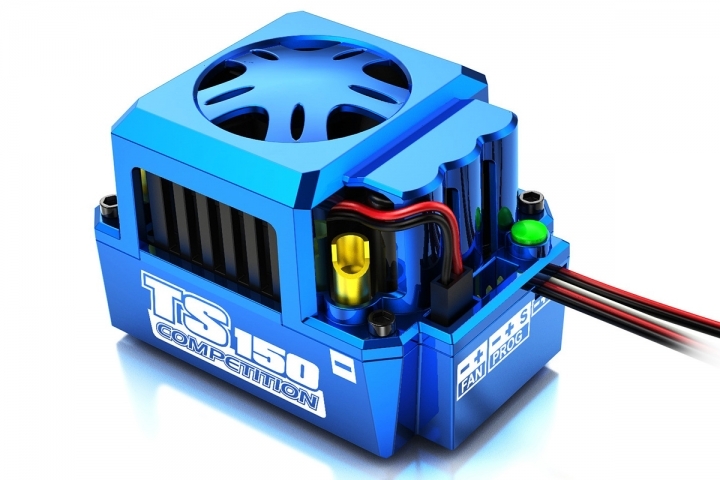

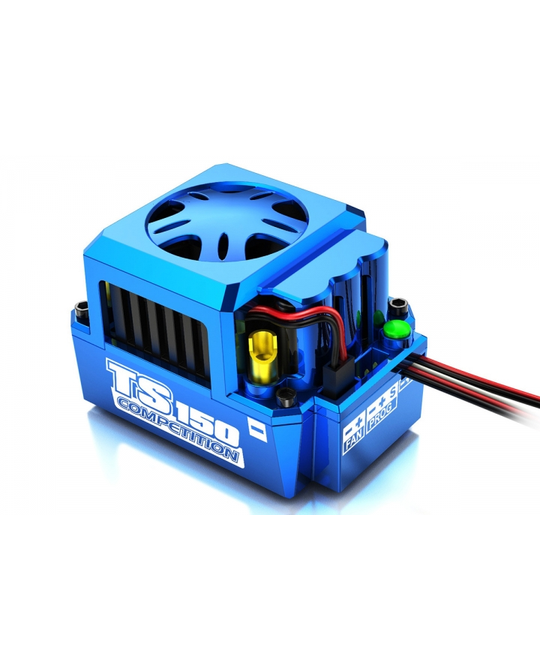

Toro TS150 150A ESC is big power in a small package, intending for 1/8th buggies, truggies and monster trucks running up to 6S LiPo. The innovative new case allows for fan changes and built-in 6V/5A BEC.

Leading the industry not only in power handing ability but also size and features with Throttle Control, Drag Brake, Custom Brake Input Curve,Voltage Cutoff for LiPo, ESC and Motor Overheat Protection and much more.

As always, Toro TS150 150A ESC offers industry-leading software and firmware update functions and can be programmed by SkyLink via PC,
Program Box and even your smart phone.
All-new Design
  Unique Electronic Power Switch

A simple push button operates the
switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.

Less Resistance, Less Heat ,More Efficiency

  10 User Modifiable Profiles
  The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
  Safety Features


Low voltage protection
Motor and ESC overheat protection
Signal lost protection


  Firmware Update
  The firmware can be updated by connecting the ESC with PC or smart phone.
  Programming Method
  It can be programmed by PC connected with
  1.SKYLINK(SK-600013)
  2.Smart phone via Bluetooth Module(SK-600058)
  3.PROGBOX(SK-300046),
  Precise Programmable Items
  Turbo Timing
  When the car is in full throttle, turbo timing set can improve the RPM to get its best performance.
  Well-performed Throttle and Brake Control Function:
  Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.



Price: $215.00
Availability:
Add to wishlist
Specs


  Size

  Weight   95g (w/o wire)
  Constant/Burst Current   150A/950A
  Motor Compatible   Brushless Sensor & Sensorless ESC
  Car Compatible   1/8 Buggy, Truck and Monster
  Motor Limits   2-4S Lipo      KV≤3000,2-6Poles

2-6S Lipo     KV≤2400, 2-4Poles

  Resistance   0.0002ohm
  Battery Cell Count   6-19S NIMH or 2-6S LIPO
  BEC Output   6V@5A
  FAN   5V@0.3A
