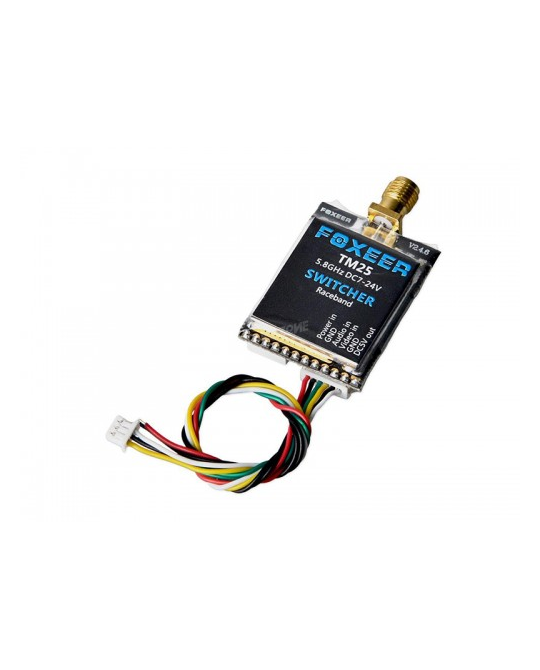

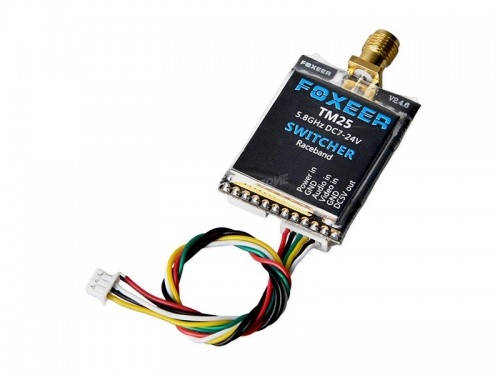

Foxeer TM25 SWITCHER 5.8G 25/200/600mW adjustable VTx, supports 40 channel including race band, VTx is 9.5g without antenna, good capacity of anti-interference, can change frequency/channel/power only by the button, very easy operation.
1. Long press the key for 2 seconds to enter channel setting mode, short press the key to switch 1 to 8
2. Long press the key for 2 seconds to enter channel group setting mode, short press the key to switch channel group from 1 to 5.
3. Long press the key for 2 seconds to enter power setting mode, short press key to switch 1 to 3, "1" stands for25mW, "2" stands for 200mW, "3" stands for 600mW
4. Long press the key for 2 seconds to quit setting mode, LED display window will show present group and channelalternately, power do not show.
Specifications :
Transmitter Frequency(MHz): Wideband FM Modulate
Video Format: NTSC
Output Impedance: 50 Ohm
Output Power: 25mW200mW600mW
Input Voltage: DC 7-24V
Output Voltage: DC 5V
Operating Temperature: -10~85℃
Video Band Width: 0~8.0MHz
Audio carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2Vp-p
Audio Input Level: 0.5~2.0Vp-p
Audio Input Impedance: 10K Ohm
Weight: 9.5g
Antenna Connector: RPSMA
Accessories: 1×Transmitter; 1×cable
