1/10 - R/C VQS (2020) - 58686
Roll over to zoom in or click to enlarge
1/10 - R/C VQS (2020) - 58686

Tamiya

1/10 - R/C VQS (2020) - 58686

$639.90
Code:TB58686

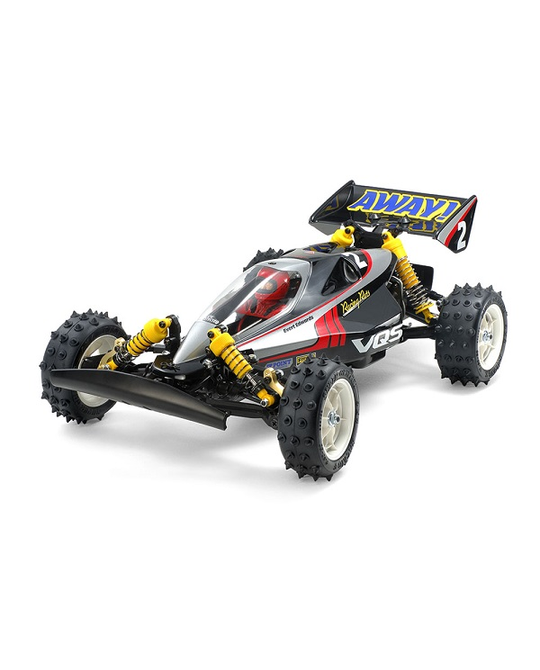

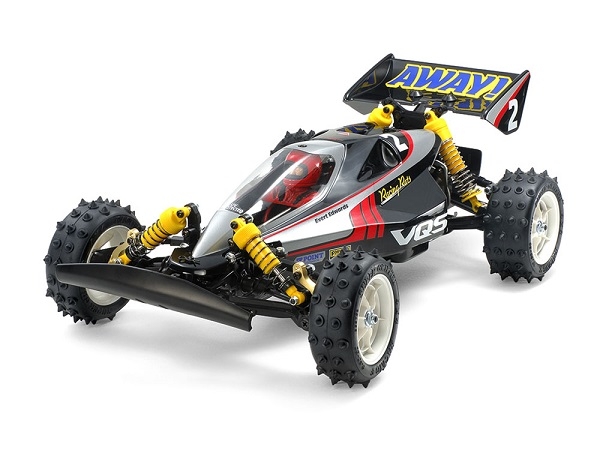

Length: 435mm. Image shows assembled kit.

Away!
This R/C model assembly kit is an updated re-release version of a 1988 buggy from the Tamiya back catalog, which inherited its make-up from the legendary race-oriented Avante. The forward cockpit body design - and the rear wing - are molded in lightweight polycarbonate and pre-painted black, pre-cut with body mount holes pre-made to save on some preparation work. An ABS plastic monocoque frame is employed, with responsive shaft-driven 4WD plus a triple differential setup, four-wheel double wishbone suspension and plenty more - superb off-road driving awaits!

Capable Off-Road Chassis
This model's durable ABS plastic monocoque frame protects vital R/C equipment and boosts suspension performance with its excellent rigidity. A total of three differentials are employed: small front and rear planetary gear differentials, and a center differential with ball thrust bearing; front and rear gearboxes also have maintenance hatches. Universal shafts front and rear ensure smooth, efficient drive and minimal worry about parts coming loose due to bumps and shocks, while the Avante-based 4-wheel double wishbone suspension employs plastic lower arms with threaded shaft upper arms that allow swift adjustment of camber. Front uprights are aluminum, and stabilizers are included for the front and rear.


★The front double wishbone suspension employs aluminum uprights, while universal drive shafts are used front and rear.

★This image is a close-up on the three-piece steering tie rod setup. The center plate is crafted in 2mm carbon fiber.

★Reponsive shaft-driven 4WD is powered by a longitudinally-placed motor, with a ball differential in the drive gear.


★Sealed gearboxes front and rear house compact planetary gear differentials which utilize the Avante design.

★The rear suspension setup features long, ball-mounted lower arms. Threaded upper arms (front and rear) allow adjustment of camber.

★The monocoque bathtub frame is a lightweight, durable design that protects and allows easy access to R/C equipment.

★Left: Battery changes are made from the underside. The model is compatible with Tamiya 7.2V Racing Pack and LF2200-6.6V battery packs.

★Right: Lightweight 6-spoke wheels are paired with pin spike tires. Front wheels are narrow, and rear wheels are wide designs.

Specifications
★Length: 435mm, Width: 235mm, Height: 150mm ★Wheelbase: 275mm ★Tread: 200mm (Front & Rear) ★ABS Plastic Monocoque Frame ★Shaft-Driven 4WD ★Front & Rear Planetary Differential Gears, Center Ball Differential ★3-Piece Steering Tie-Rod ★4-Wheel Independent Double-Wishbone Suspension ★Tire Width/Diameter: 31/88mm (Front), 38/88mm (Rear) ★CVA Oil Dampers ★Gear Ratio = 8.73:1 (using kit-standard 21T pinion gear) ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
