Standard (High Power) D.C. Motors

Astonishing speed and power from these compact ferrite magnet types.

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Cat No.

Voltage (V)

No load 12.0

Speed (RPM) 18800

Current (AMP) 2.6

Operating Range (V) 6-12
At Stall

Torque (kg/cm) 4.9

Current (AMP) 92
At Max Efficiency

Efficiency (%) 71

Power (W) 107

Speed (RPM) 15520

Torque (kg/cm) .67

Current (A) 12.8

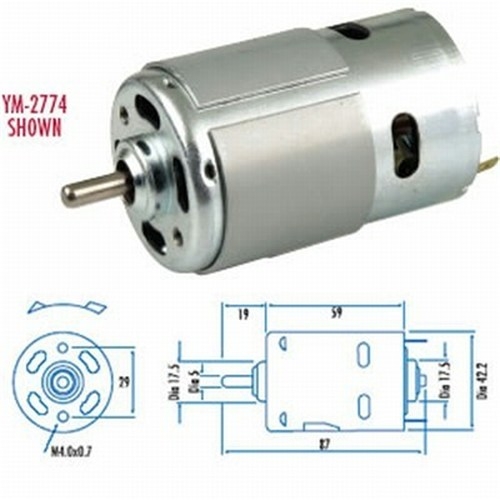

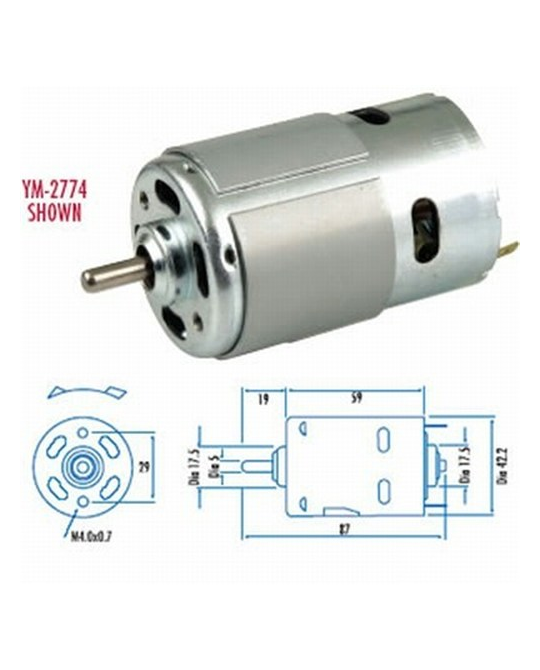

Dimensions

Diameter (mm) 42

Total Length (mm) 78

Shaft Length (mm) 19

Shaft Diameter (mm) 5.0

Mounting Thread M4
