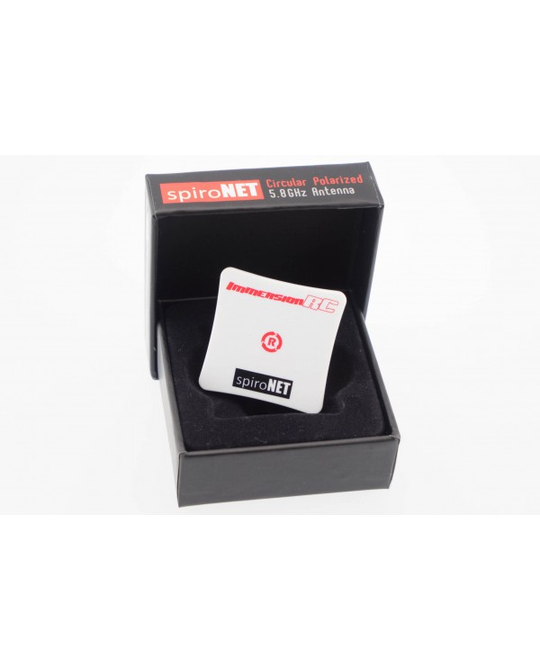

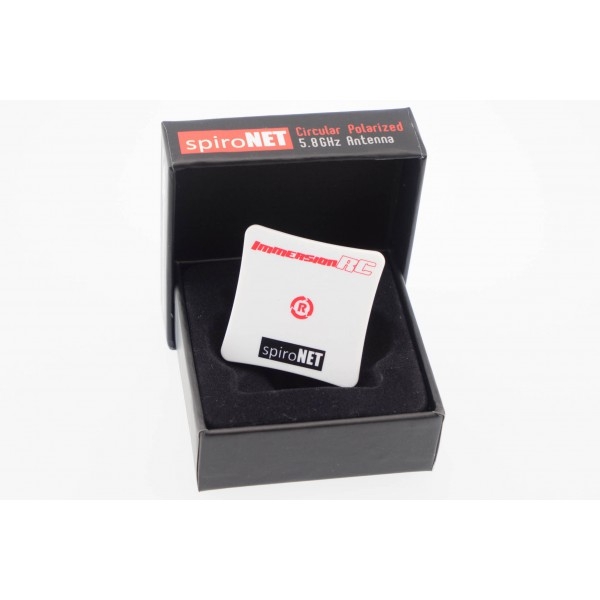

8dBi Right-Hand (RHCP) Circular Polarized Patch antenna, Full-Custom design for the FPV market.
Ideal for head-mounting on a set of FatShark Goggles. Much wider beam than its 13dBi cousin, with easily double the range of a standard SpiroNET Omni.
This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.
Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance
SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date
Right-Hand circular polarization
5.8GHz ISM Band
8dBi gain
Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)
F/B Ratio >356dB
VSWR < 1:1.35 at 5800MHz
Impedance 50 ohms
Weight 7g
