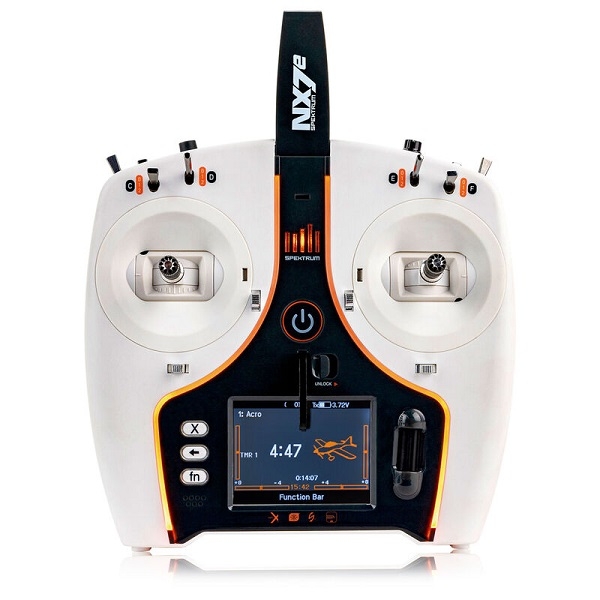

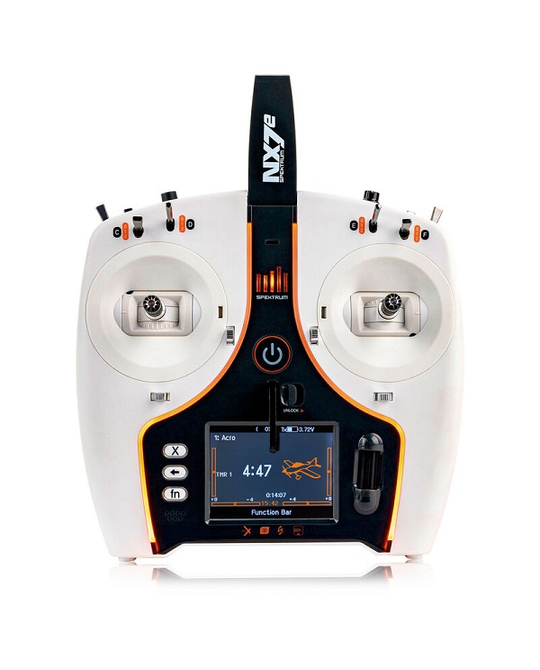

NX7e 7-Channel DSMX Transmitter Only - SPMR7100

7-Channel support and BNF model templates for easily setting up most BNF Aircraft
Modern case design with new white colors
Folding antenna for compact storage and transport
Spektrum™ AirWare™ programming for easy programming out of the box
250-model memory
In The Box
(1) Spektrum™ NX7e 7-Channel 2.4GHz DSMX® Transmitter
(1) 2200mAh Li-Ion Transmitter Battery
(1) USB-C Cable
(1) NX7e Product Manual

Needed to Complete
(1) Compatible Spektrum™ Receiver
Features
7-Channel support and BNF model templates for easily setting up most BNF Aircraft
Modern case design with new white colors
Folding antenna for compact storage and transport
Spektrum™ AirWare™ programming for easy programming out of the box
Unbeatable response of DSMX Technology
2.8” 320x240 color display
USB-C and Micro SD connectivity
250-model memory
Multiple color palette choices and customizable colors
2200mAh Lithium-Ion Battery installed
Airplane, Helicopter, Sailplane, and Multirotor programming
Wireless trainer system capability with optional SRXL2 DSMX Remote Receiver (available separately).
YOUR NEXT RADIO
For the beginner to intermediate, BNF-type, and budget-conscious RC pilot, the Spektrum™ NX7e gives you the unbeatable response of DSMX® technology, the simplicity of Spektrum AirWare™ programming software, and many other features you can't find on other similarly priced radios.

Don’t settle for less and upgrade to the best. As the pioneer of 2.4gHz RC technology, our engineers live and breathe the RC life as much as you do, and design and develop innovations for more RC fun. With a modern case design and a new pristine white coloring, this transmitter is not only sleek but also comfortable to hold. Radio programming shouldn’t be complex and require an engineering degree. The Spektrum NX7e gives you the unbeatable response of DSMX technology and the simplicity of Spektrum AirWare firmware developed exclusively by Spektrum from the ground up, providing pilots with next-level radio control.





EASY PROGRAMMING

The NX7e offers programmable mixes and a variety of different flight modes. You can easily navigate program menus with the transmitter's roller-wheel scrolling interface with Clear, Back, and Function buttons. Function bar options include Telemetry Ticker Tape for following real-time telemetry data and "My List" to give you quick access to the menu items you select, organized however you wish. You'll have quick, uncluttered access to the features you use the most.





SPEKTRUM™ AIRWARE™ SOFTWARE

Exclusive Spektrum™ AirWare™ programming software includes all of the functions that a beginner or intermediate pilot could want, but you don't have to be an expert to use them. It also offers benefits not available on other systems, such as Enhanced Wing Type programming that automatically configures the necessary mixes; Active Gyro and Governor Trim to fine-tune rotor speed and gyro gain while in flight; and Electronic E-Ring to limit servo travel automatically if the sum of the cyclic and pitch values exceeds servo limits.





2.8" COLOR DISPLAY

Navigating menus and viewing telemetry data is made easy by the NX7e transmitter's 2.8” backlit color display that delivers information in crisp, 320x240 resolution detail. The display screen also allows you to choose from multiple colors or create your own.





MODEL TEMPLATES

Model programming templates for BNF® aircraft that include desired switch assignments, rates, curves and other details are already saved into the NX7e transmitter. You can also simplify the process of creating set-ups for new models by selecting Template and starting from a generic model template of the appropriate model type.





ERGONOMIC DESIGN

The NX7e transmitters gimbals offer long-lasting precision that's conveniently adjustable from the front of the transmitter. Weight distribution and switch placement have been optimized for comfort and precise, fatigue-free control. Its antenna folds conveniently for compact storage and transport.





USB-C CONNECTIVITY

The NX7e transmitter features a USB-C port that allows you to charge the internal Li-Ion battery with the included USB-C cable. It can also be used to recognize accessory devices and provide a convenient link to your PC or laptop. Connect the transmitter to your computer, and you can control most simulators, including the RealFlight® RC Flight Simulator.*





DSMX® TECHNOLOGY

The NX7e transmitter is built around proven Spektrum™ DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX® transmitters provide on-channel interference protection that's second to none.





HIGH-CAPACITY Li-ION TRANSMITTER BATTERY

The NX7e transmitter includes a long-lasting 2200mAh Lithium-Ion battery and a USB-C Cable for convenient charging.





SMART TECHNOLOGY

The Spektrum™ NX7e comes ready to provide the advantages of state-of-the-art connectivity right out of the box by supporting the innovative, all-in-one telemetry of Spektrum™ Smart batteries, ESCs, and receivers. Smart Technology ensures that all your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simpler to use.



*Currently compatible only with RF8 and RF9.

Band	2.4GHz
Channels	7
Data Port	Yes
Transmitter (Tx) Battery Type	3.7S 2200mAh 1S LiIon
Battery	Included
Modes	User Selectable Mode 1-4
Technology	Smart
Range	Full
Programmable	Yes
SD Card/Airware Capable	Yes
Frame Rate	11ms, 22ms
Model Memory	250
Modulation	DSMX/DSM2
Receiver	Sold Separately
Telemetry	Yes
