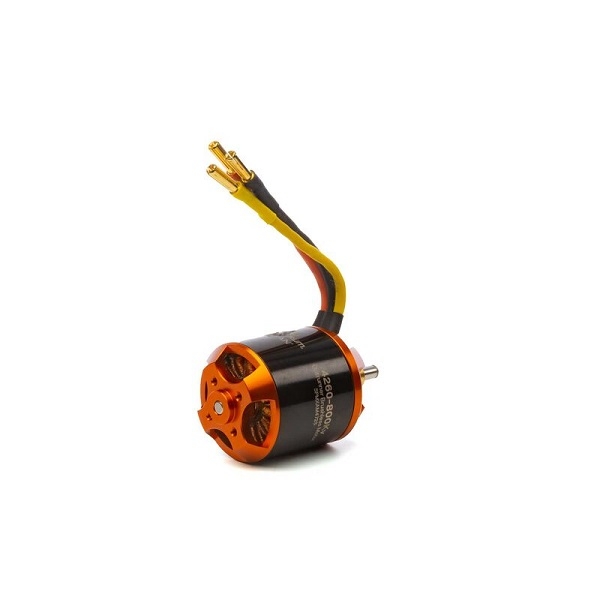

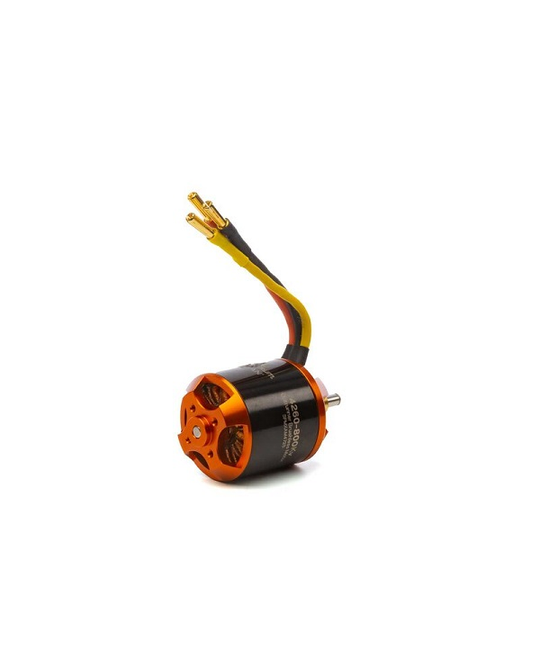

Spektrum - Avian 4260 - 800Kv Outrunner Brushless Motor

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits:
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion
Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 60 amp ESC
Perfect electric conversion upgrade for .46 size glow combustion power systems

Important Specs:
Recommended Voltage Range – 18.5-22.2V / 5-6S LiPo
Recommended Propeller Range – 10x5 to 11x5 Electric Propeller
Recommended Model Flying weight – 3D 2210g (5 lbs) - Sport 3400g (7.5 lbs)
Max Wattage – 810w
Max Current – Max Burst Amps (100A) Max Continuous Amps (60A)


Application: Sport airplane up to 7.5lbs (3402g), & 3D airplane up to 5lbs (2268g))
Connector: Type 4mm Bullet
Idle Current (Io): 4.6A no load
Input Voltage: 18.5-22.2V
Maximum Burst Current: 100A
Maximum Continuous Current: 60A
Motor Type: Brushless
Outer Diameter: 1.65" (42 mm)
Product Length: 2.36" (60 mm)
Product Weight: 9.5oz (268g)
Recommended Prop Range: 10 x 5E-11 x 5E
Recommended Speed Control: 60A
RPM/Volt (Kv): 800
Shaft Diameter: 0.2" (5 mm)
Shaft Length: 0.67" (17 mm)
