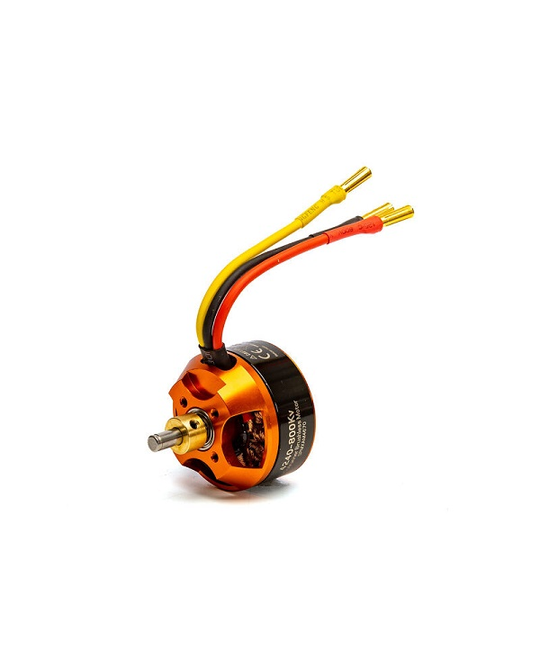

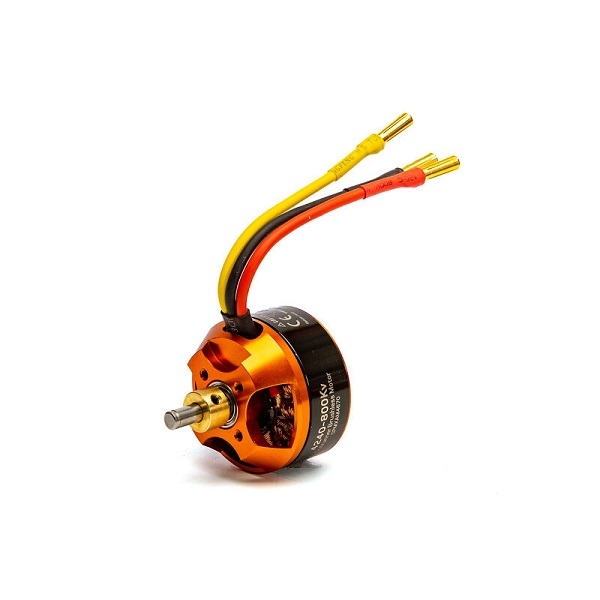

Avian 4240 - 800Kv Outrunner Brushless Motor
Roll over to zoom in or click to enlarge
Avian 4240 - 800Kv Outrunner Brushless Motor

Spektrum

Avian 4240 - 800Kv Outrunner Brushless Motor

$175.00
Code:SPMXAM4670

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.




Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion
  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 45 amp ESC
  • Perfect electric conversion upgrade for .28 size glow combustion power systems






Important Specs

  • Recommended Voltage Range – 11.1-18.5V / 3-5S LiPo
  • Recommended Propeller Range – 10x5 to 13x8 Electric Propeller
  • Recommended Model Flying weight – 3D 1769g (3.9 lbs) - Sport 3583g (7.9 lbs)
  • Max Wattage – 740w
Recommended Speed ControlSpektrum Smart Avian 45 amp ESC
RPM/Volt (Kv)800Kv
Outer Diameter1.67" (42 mm)
Connector Type3.5mm Bullet
Motor Size4240
Product Length1.59" (40 mm)
Voltage11.1-18.5v (3-5S LiPo)
ApplicationSport airplanes up to 7.9lbs (3583g) and 3D airplanes up to 3.9lbs (1769g)
Number of Poles14
Product Weight4.4oz (125g)
Recommended Prop Range10x5 to 13x8 Electric Prop
Shaft Diameter0.19" (5 mm)
Maximum Burst Current740W
Maximum Continuous Current592W
Motor TypeBrushless


















Price: $175.00
