Toro

TS120A ESC with Aluminum Case - TS-120 - 300062

$229.90
Code:SK-300062

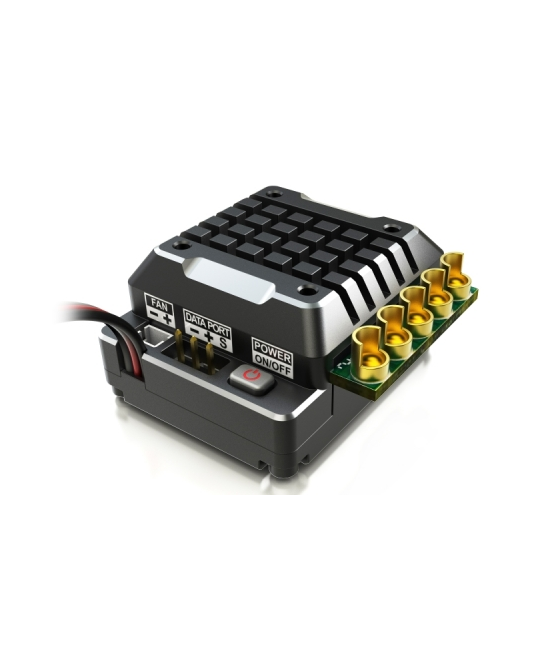

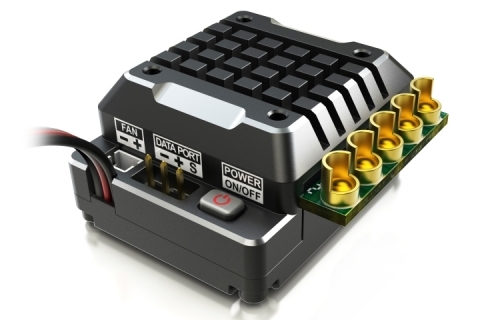

  Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system.





The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.



  Low voltage protection
  Motor and ESC overheat protection
  Signal lost protection



  The firmware can be updated by connecting the ESC with PC or smart phone.


  It can be programmed by PC connected with
  1.PROGBOX(SK-300046),


  2.Smart phone via Wi-Fi Module(SK-600075)


  3.SKYLINK(SK-600013)

  Advanced Timing System
  Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.



  Users could set the punch/brake control rate by point or custom the
  throttle/brake curve by themselves,and different customers' request
  for Line and power all can be met.





Revised  2015-11-09
Price: $229.90
Availability:
Add to wishlist
Specs
Size
  Weight   45g (without wire)
  Constant/Burst Current   120A/760A
  Motor Compatible   Brushless Sensor & Sensorless ESC
  Car Compatible   1/10 and 1/12 On Road and Off Road
1/10 and 1/8 Crawlers
  Motor Limits   5-6S NiMH or 2S LiPO--≥3.5T(1/10 On Road), ≥5.5T(1/10 Off Road)
8-9S NiMH or 3S LiPO--≥5.5T(1/10 On Road),≥8.5T(1/10 Off Road)
  Resistance   0.0003ohm
  Battery Cell Count   4-9S NIMH or 2-3S LiPO
  BEC Output   6V@3A
   FAN   8V@0.2A , MAX 12.6V
