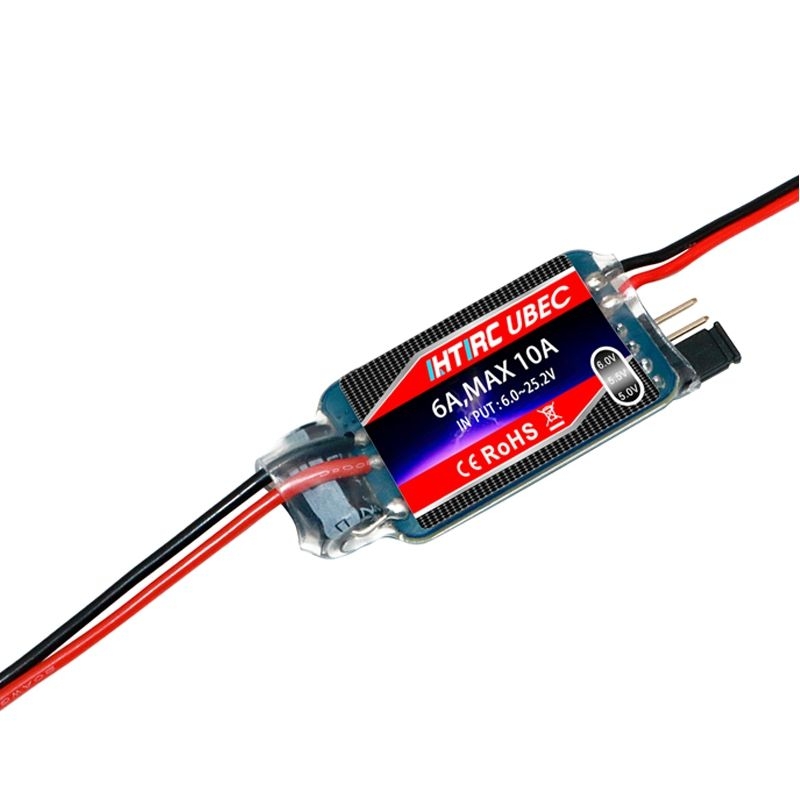

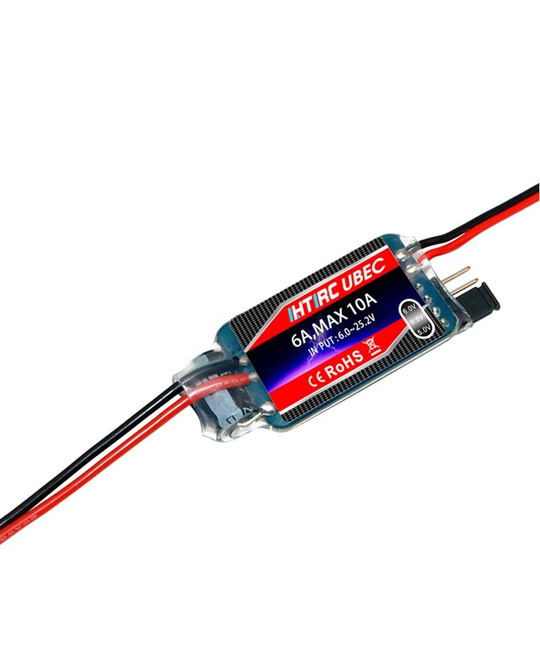

Htirc SBEC UBEC 6A Brushless ESC 2S 3S 4S 5S 6S for RC Racing Drone Airplane Aircraft
FEATURES
Ultra low stand-by power consumption
Power indicator
SPECIFICATION
Model : SBEC 6A
Continue current : 6A
Instantaneous current : 8A
Type : SBEC
Output : 5.0V/5.5V/6.0V/6A
Support LiPo: 2S-6S
Support NC : 5-18NC
Size : 45*21*10
Weight : 15g

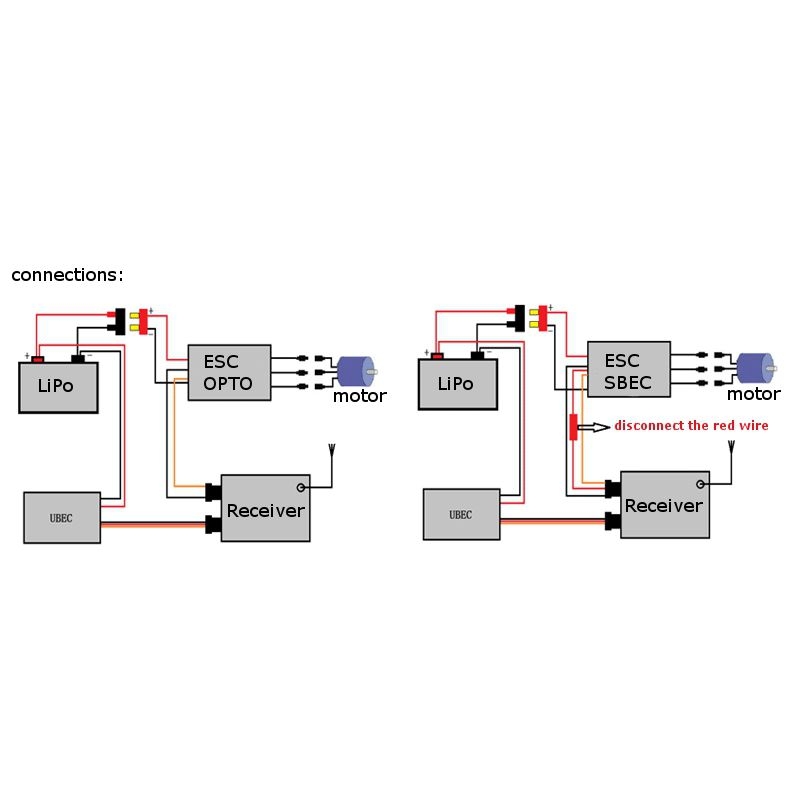

Operation
1. Must connect with external UBEC when uses OPTO ESC
No change is needed for brushless esc, just make the input port of UBEC connect with battery pack in parallel, and its output port connect to any free channel of the receiver.
2. Connection between ESC with built-in SBEC and UBEC
Disconnect the red wire of SBEC signal cables of ESC, which is the output of built-in SBEC ,then connect the ESC with UBEC(same as OPTO)
PACKAGE INCLUDED
1 x Htirc SBEC 6A ESC For RC Airplane Aircraft Drone
