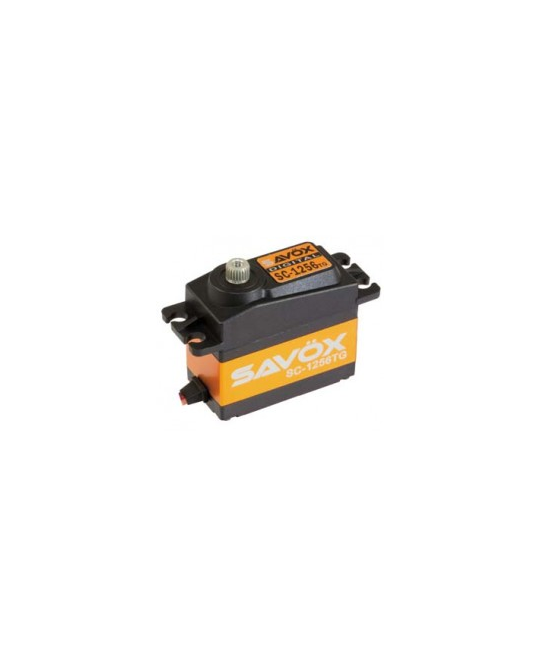

Savox STD size 20kg/cm, Coreless Digital Servo, 0.15 sec, 6.0V 52.4g, 40.3x20x37.2mm
The SC1256TG pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC-1256TG sports titanium and metal gears to keep things strong and running smooth.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
Dimensions(mm): 40.3x20.2x37.2
Weight(g):52.4
Speed(@4.8V sec/60): .18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 277.7
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
