Savox STD size 36kg/cm Coreless Motor, Digital Servo, 0.16sec, 79g, 40.3x20.2x45.5m

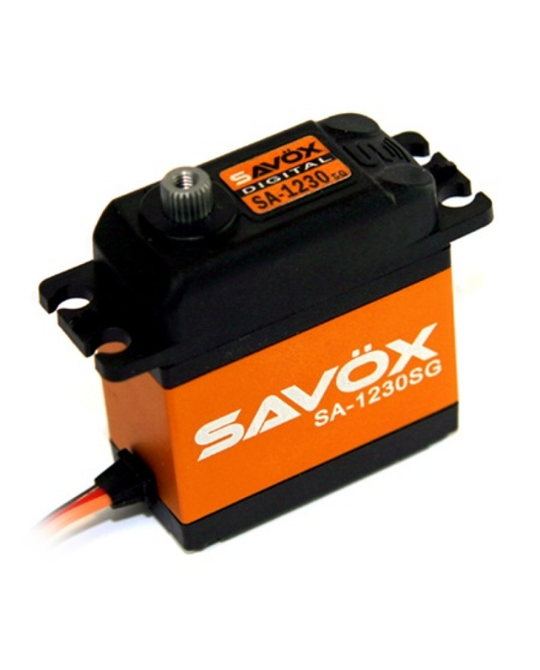

This is the Savox SA-1230SG Monster Torque Steel Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Coreless motor provides extremely high speed, incredible efficiency, and low power consumption.
- Extremely strong unique steel gears ensure long-life and durability.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for giant scale aircraft, monster truck, 1/8 scale.
Dimensions(mm): 40.3x20.2x45.0
Weight(g): 79.0
Speed(@4.8V sec/60): .20
Torque(@4.8V oz-in): 416.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 500.0
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
