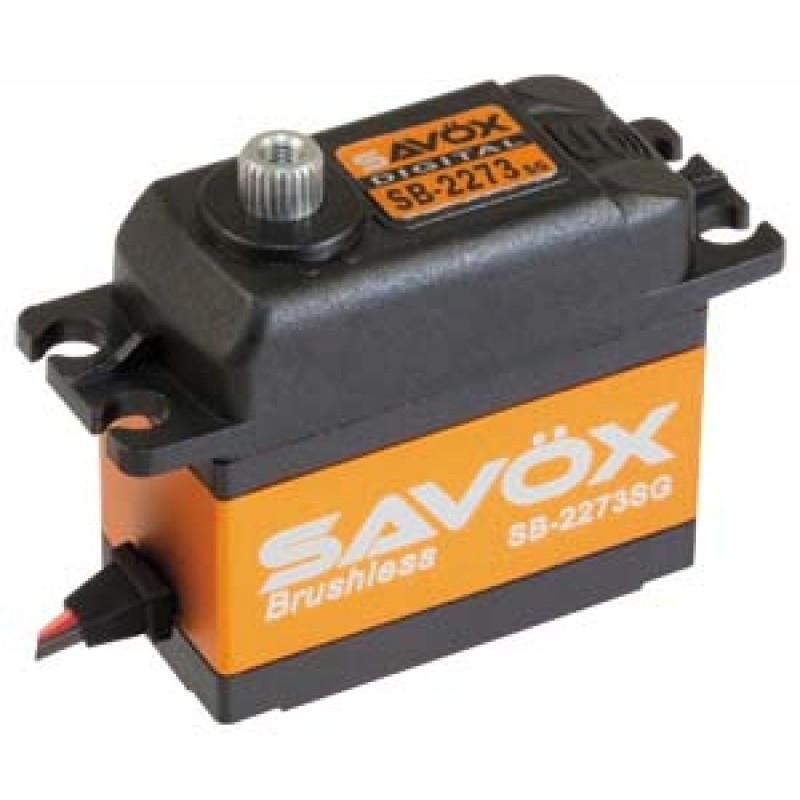

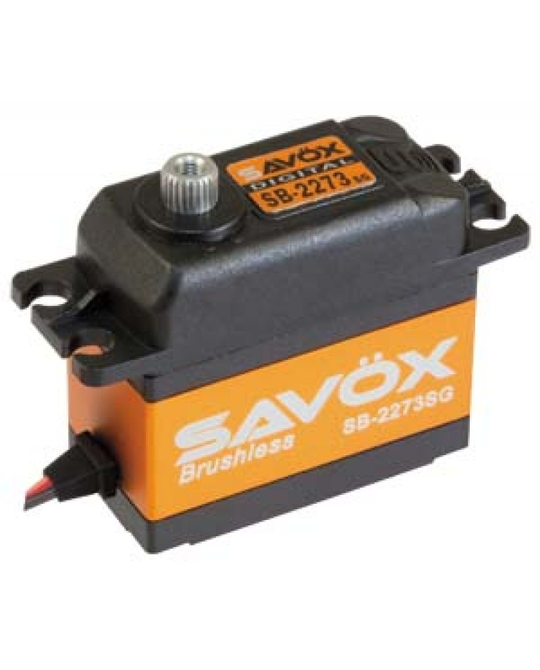

HV Standard Digital Brushless Motor Servo -  28kg/.095sec -  7.4V -  SB- 2273SG
Roll over to zoom in or click to enlarge
HV Standard Digital Brushless Motor Servo -  28kg/.095sec -  7.4V -  SB- 2273SG

Savox

HV Standard Digital Brushless Motor Servo - 28kg/.095sec - 7.4V - SB- 2273SG

$235.00
Code:SB-2273SG
Savox HV STD size 28kg/cm, Digital Brushless Motor Servo, 0.095sec, 7.4V, 69g, 40.3x20.2x38.5mm

This is the Savox SB-2273SG High Voltage High Torque Brushless Unique Steel Gear Digital Servo.

Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides extremely high speed, high torque, incredible efficiency, and amazingly low power consumption.
  • The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Our servos are totally green – from materials to production, these servos are environmentally friendly.
  • Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@6.0V sec/60): .12
Torque(@6.0V oz-in): 319.4
Speed(@7.4V sec/60): .095
Torque(@7.4V oz-in): 388.8
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Price: $235.00
Availability:
Add to wishlist
