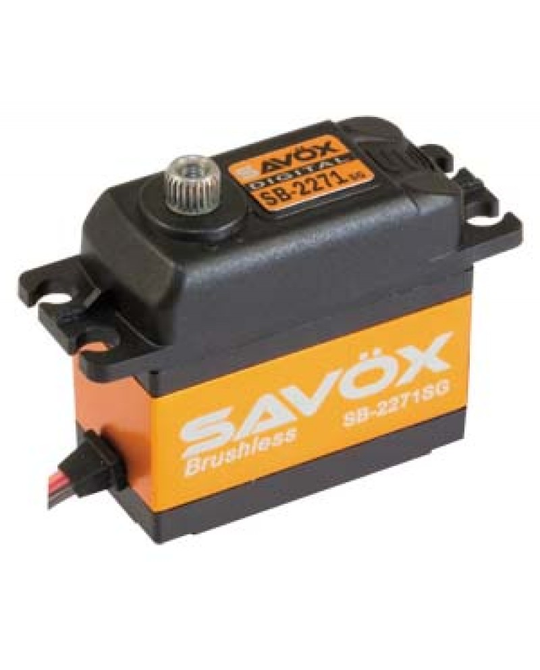

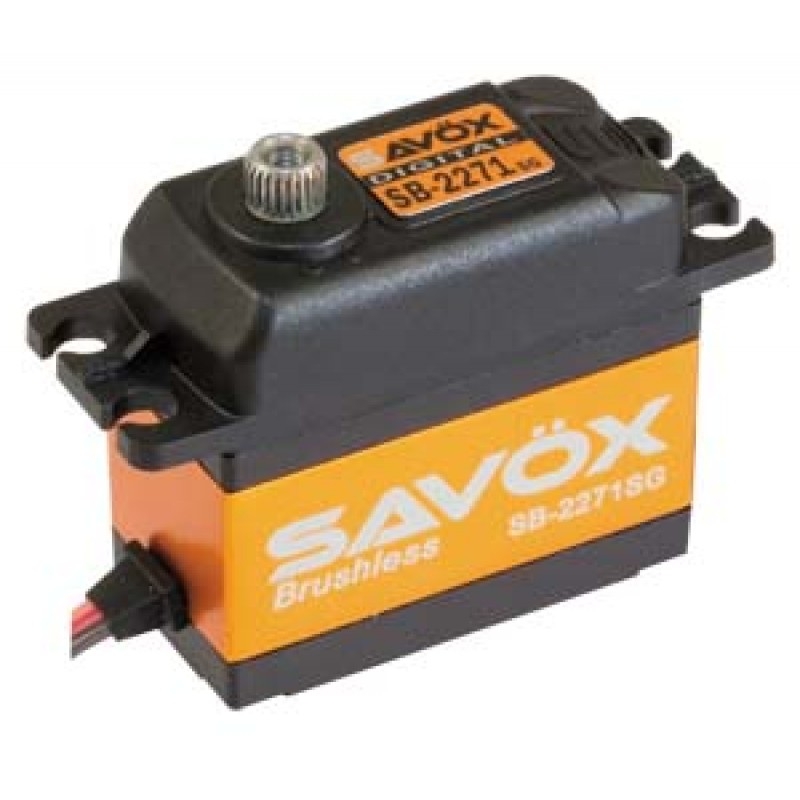

HV Standard BL Motor, Digital Servo - 20kg/.065sec - 7.4V - SB- 2271SG
Roll over to zoom in or click to enlarge
HV Standard BL Motor, Digital Servo - 20kg/.065sec - 7.4V - SB- 2271SG

Savox

HV Standard BL Motor, Digital Servo - 20kg/.065sec - 7.4V - SB- 2271SG

$275.00
Code:SB-2271SG
Savox HV STD size 20kg/cm BL Motor, Digital Servo, 0.065sec, 7.4V, 69g, 40.3x20.2x38.5mm

The SB2271SG combines leading edge technology with super high 12-bit (4096) resolution and full aluminum gears for one amazing servo! This servo uses a brushless motor providing high speed, incredible efficiency, and low power consumption. The extremely strong aluminum gears ensure long-life and durability. High-voltage-capable for running direct LiPo receiver packs. Ideal for rock crawlers and steering servo on 1/8-scale buggies.

Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides high speed and torque, incredible efficiency, and amazingly low power consumption.
  • Extremely strong unique steel gears ensure long-life and durability.
  • The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Our servos are totally green – from materials to production, these servos are environmentally friendly.
  • Ideal for rock crawlers, monster trucks, every control surface for giant scale aircraft, and 700 class heli cyclic.
  • High Voltage
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@4.8V sec/60): .105
Torque(@4.8V oz-in): 152.8
Speed(@6.0V sec/60): .085
Torque(@6.0V oz-in): 208.3
Speed(@7.4V sec/60): .065
Torque(@7.4V oz-in): 277.0
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Price: $275.00
