Savox HV STD size 32kg/cm BL Motor, Digital Servo, 0.12sec, 7.4V, 66g, 40.3x20.2x38.5mm

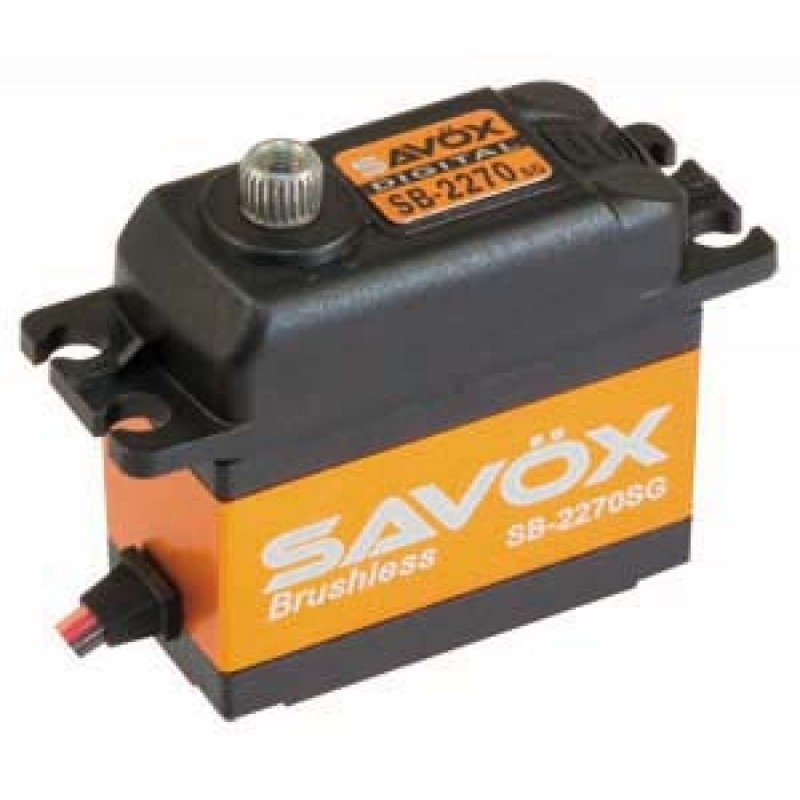

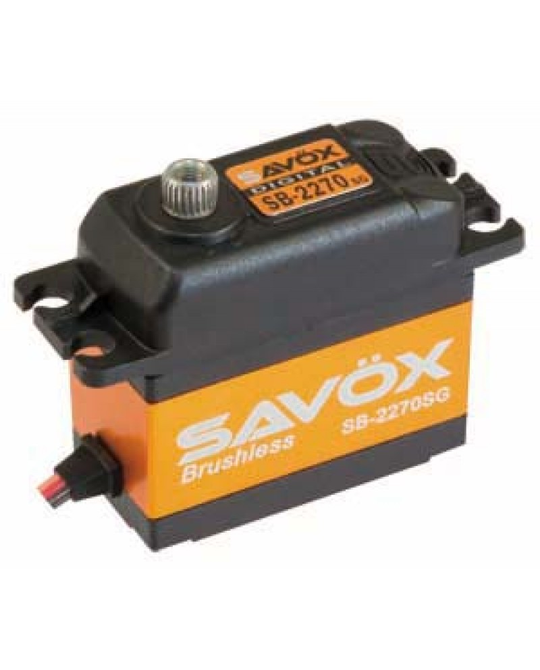

This is the Savox SB-2270SG High Voltage Monster Torque Brushless Steel Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides high speed and torque, incredible efficiency, and amazingly low power consumption.
- Extremely strong unique steel gears ensure long-life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for rock crawlers, monster trucks, and every control surface for giant scale aircraft.
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@4.8V sec/60): .19
Torque(@4.8V oz-in): 291.6
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 347.2
Speed(@7.4V sec/60): .12
Torque(@7.4V oz-in): 444.0
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
