Savox HV STD size 40kg/cm, Digital Brushless Motor Servo, 0.10sec, 7.4V, 84g, 40.3x20.2x45.0mm

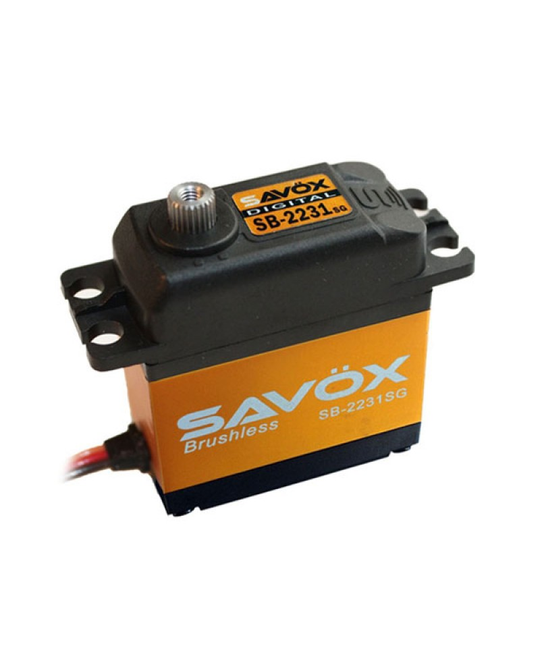

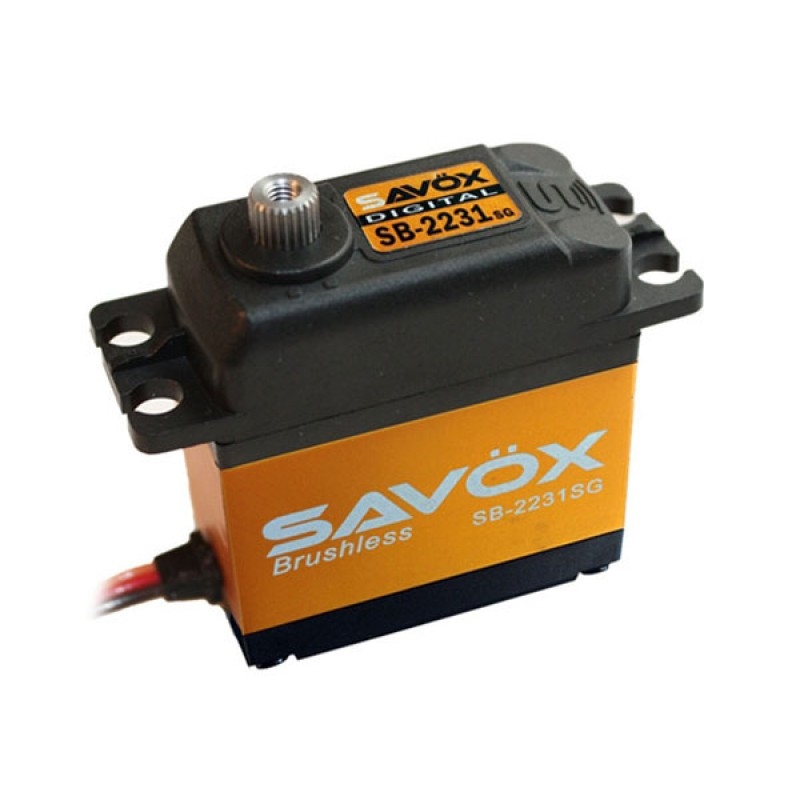

This is the Savox SB-2231SG Ultra Torque, High Speed, Brushless, Tall Size, & Steel Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Brushless motor provides longer life and cooler operating temps.
- Extremely strong unique steel gears ensure long-life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for giant scale aircraft, monster truck, rock crawlers, and 1/8 scale.
Dimensions(mm): 40.3x20.2x45.0
Weight(g): 84.0
Speed(@6.0V sec/60): .14
Torque(@6.0V oz-in): 444.4
Speed(@7.4V sec/60): .10
Torque(@7.4V oz-in): 555.5
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
