Savox HV Standard size Heli Tail Servo ONLY. size 7kg/cm BL Motor, Digital Servo, 0.035sec, 7.4V, 69g, 40.3x20.2x38.5mm

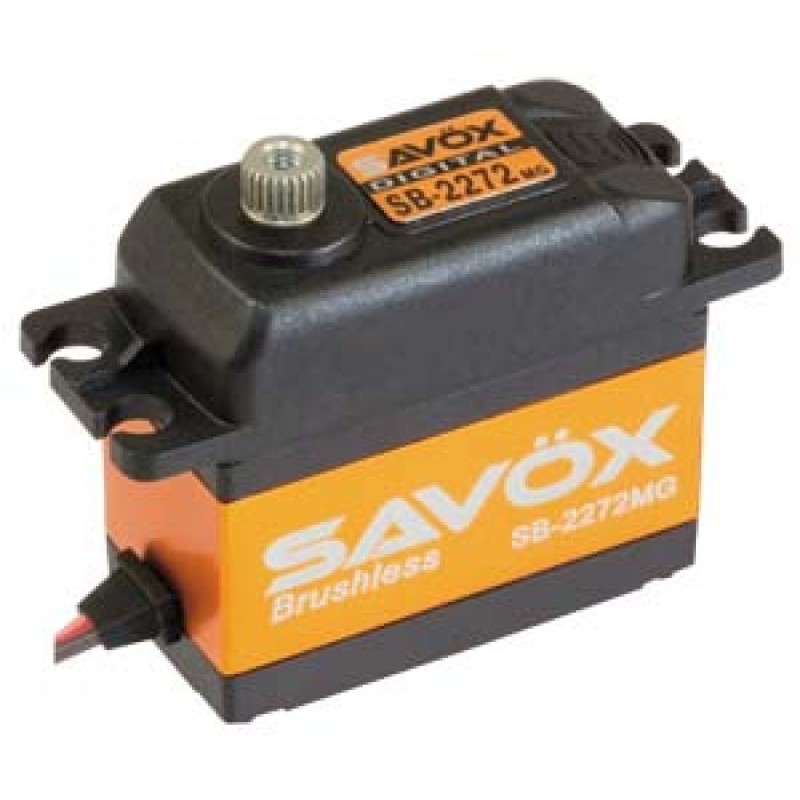

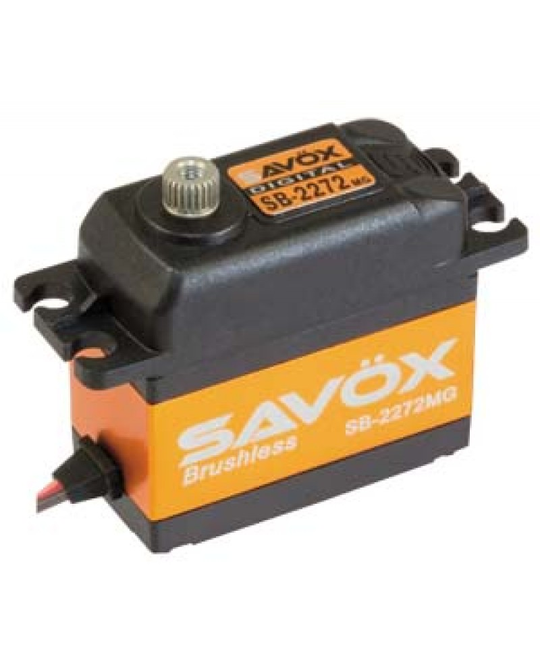

This is the Savox SB-2272MG High Voltage Lightning Speed Brushless Metal Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for Gyro and rudder servo only.
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 66.0
Speed(@4.8V sec/60): .055
Torque(@4.8V oz-in): 41.7
Speed(@6.0V sec/60): .045
Torque(@6.0V oz-in): 69.4
Speed(@7.4V sec/60): .032
Torque(@7.4V oz-in): 97.2
Gear: Metal
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
