Savox STD size 5kg/cm, Coreless Heli Tail Digital Servo, 0.048 sec, 6.0V 56.4g,40.3x20.2x37.2mm

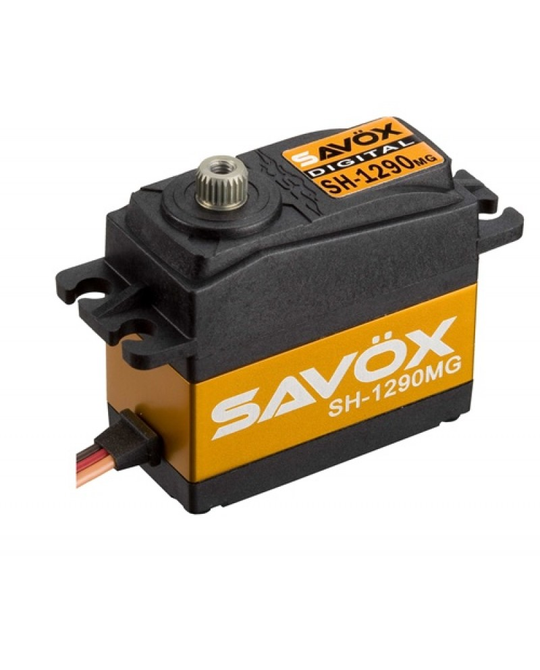

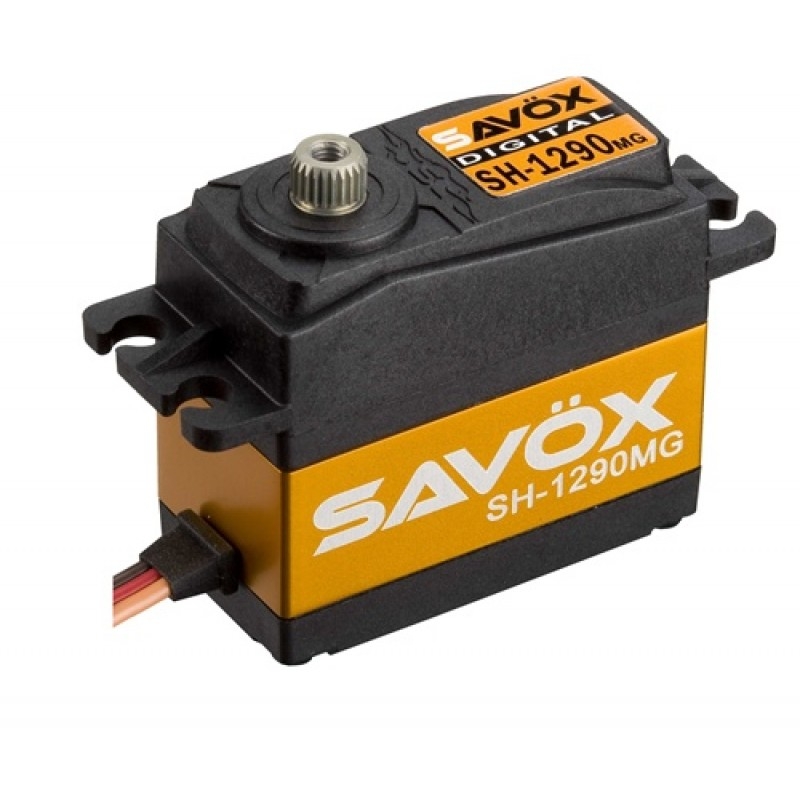

This is the Savox SH-1290MG Super Speed Metal Gear Digital Servo.
Features: - 4096 super high resolutionWater-Resistant with 4 silicone seals
- Coreless motor brings output performance to new levels - smoother, faster and more efficient operation.
- The metal case design not only looks awesome but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal as a rudder servo on 500, 600, and 700 class helis.
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 56.4
Speed(@4.8V sec/60): .06
Torque(@4.8V oz-in): 55.5
Speed(@6.0V sec/60): .05
Torque(@6.0V oz-in): 69.4
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
