Savox Micro size 2.2kg/cm Digital Servo, 0.09sec, 6.0V 13.6g, 22.8x12x25.4mm.

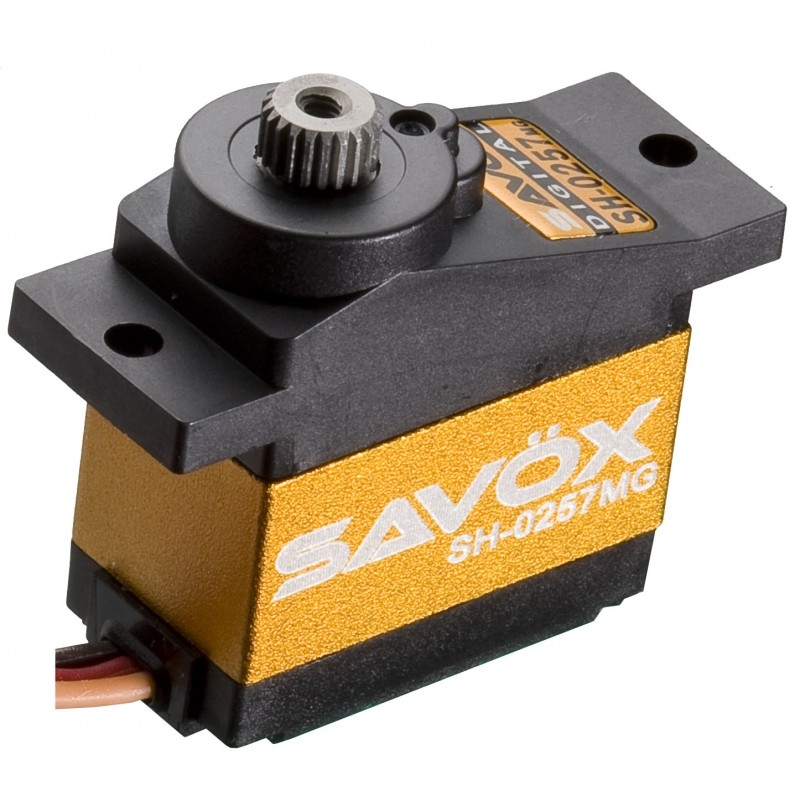

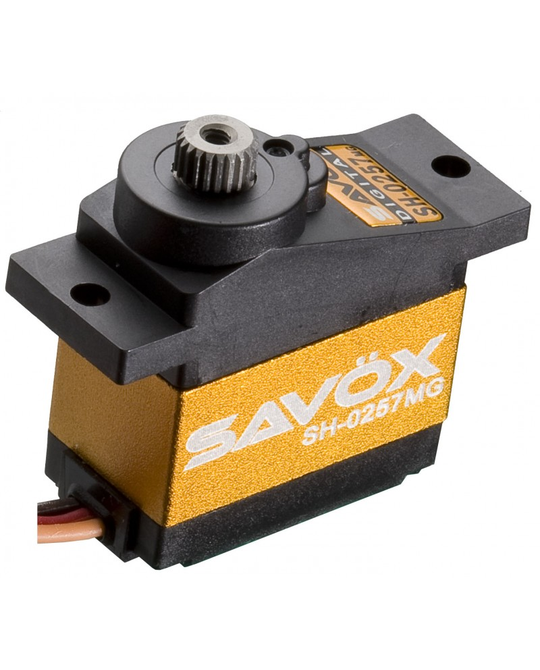

This is the Savox SH-0257MG Super Speed Metal Gear Micro Digital Servo.
Features:
- Over-spec refined design out performs ordinary micro size servo.
- The metal case design looks awesome and allows for cooler and smoother operating temps.
- Metal gears form a solid framework for precise control and operation.
- Strict production and quality control of plastic components.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for CCPM and Rudder on 450 class heli's and park flyer airplanes.
Dimensions(mm): 22.8X12.0X25.4
Weight(g): 14.0
Speed(@4.8V sec/60): .13
Torque(@4.8V oz-in): 25.0
Speed(@6.0V sec/60): .09
Torque(@6.0V oz-in): 30.6
Gear: Metal
Bearing: 1BB
Case: Aluminum
21 Tooth Spline
Frequency: 200-250hz
Pulse Width Frequency: 1520
