Savox Micro size 3.9kg/cm Digital Servo, 0.13sec, 6.0V, 15.8g, 22.8x12.0x29.4mm

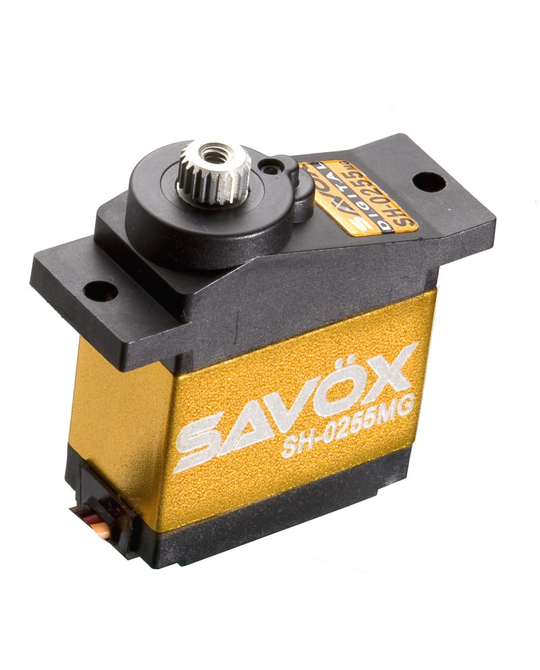

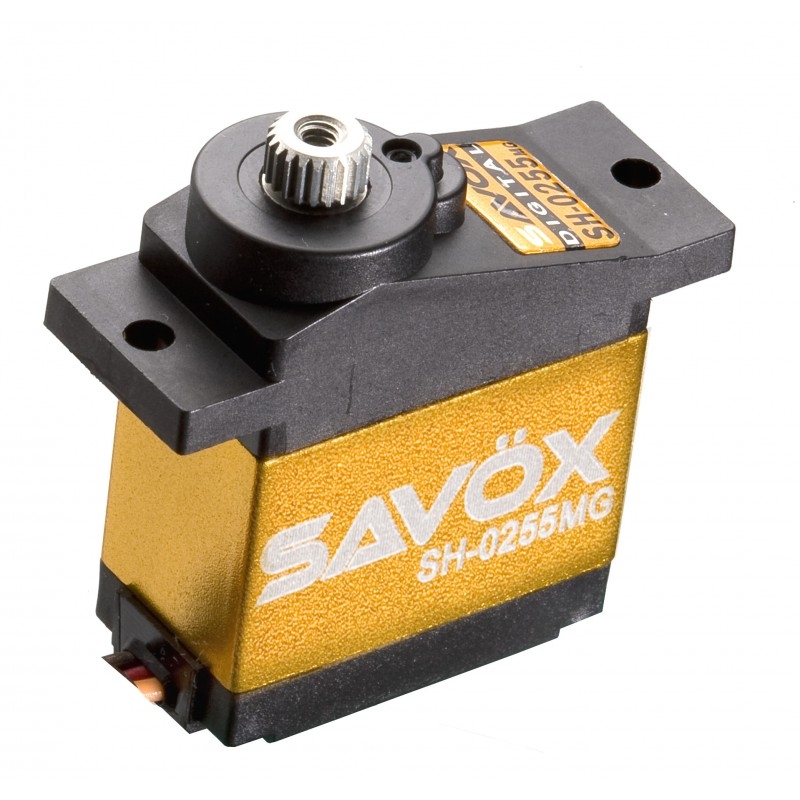

This is the Savox SC-0255MG Micro Metal Gear Digital Servo.
Features:
- Over-spec refined design out performs ordinary micro size servo.
- The aluminum case design looks awesome and allows for cooler operating temperatures.
- Precision metal gears form a strong and solid framework.
- Strict production and quality control of plastic components ensures long life and reliability.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for CCPM applications in 450 size heli's and park flier planes.
Dimensions(mm): 22.8X12.0X29.4
Weight(g): 15.8
Speed(@4.8V sec/60): .16
Torque(@4.8V oz-in): 43.1
Speed(@6.0V sec/60): .13
Torque(@6.0V oz-in): 54.2
Gear: Metal
Bearing: 1BB
Case: Aluminum
21 Tooth Spline
Frequency: 200-250hz
Pulse Width Frequency: 1520
