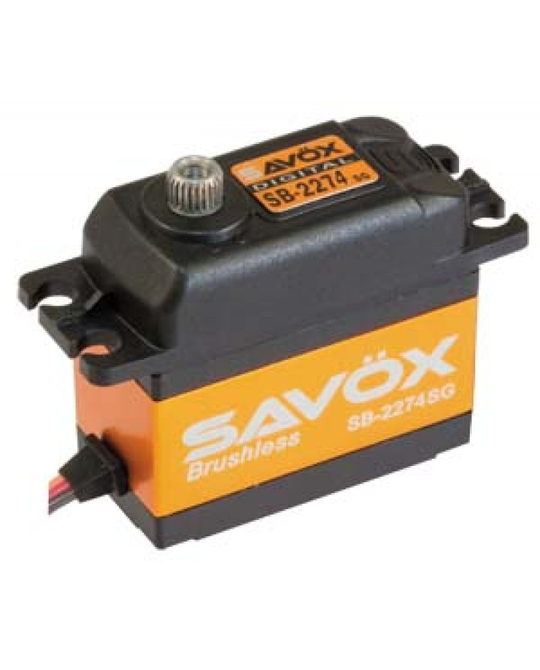

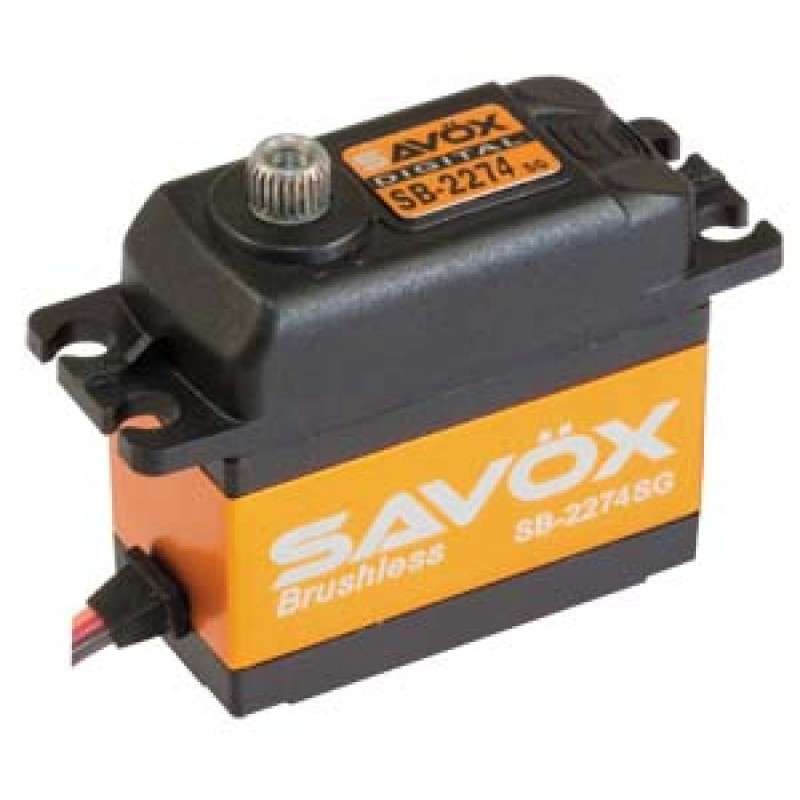

HV Standard Digital Brushless Motor Servo -  25kg/.08sec -  7.4V -  SB- 2274SG
Roll over to zoom in or click to enlarge
HV Standard Digital Brushless Motor Servo -  25kg/.08sec -  7.4V -  SB- 2274SG

Savox

HV Standard Digital Brushless Motor Servo - 25kg/.08sec - 7.4V - SB- 2274SG

$187.30
Code:SB-2274SG
Savox HV STD size 25kg/cm, Digital Brushless Motor Servo, 0.08sec, 7.4V, 69g, 40.3x20.2x38.5mm

This high speed, high voltage brushless servo is all you will ever need for 1/8th and 1/10th scale trucks and buggies (electric and nitro). The SB-2274SG is the servo that always performs like a champion. Pushing 347 oz. you will leave everyone in your dust. What more could you ask for really?

Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
  • The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Our servos are totally green – from materials to production, these servos are environmentally friendly.
  • Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@6.0V sec/60): .105
Torque(@6.0V oz-in): 277.7
Speed(@7.4V sec/60): .080
Torque(@7.4V oz-in): 347.2
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520

Price: $187.30
