Savox HV STD size 16kg/cm, Digital Coreless Motor Servo, 0.065sec, 7.4V, 56g, 40.3x20.0x37.2mm

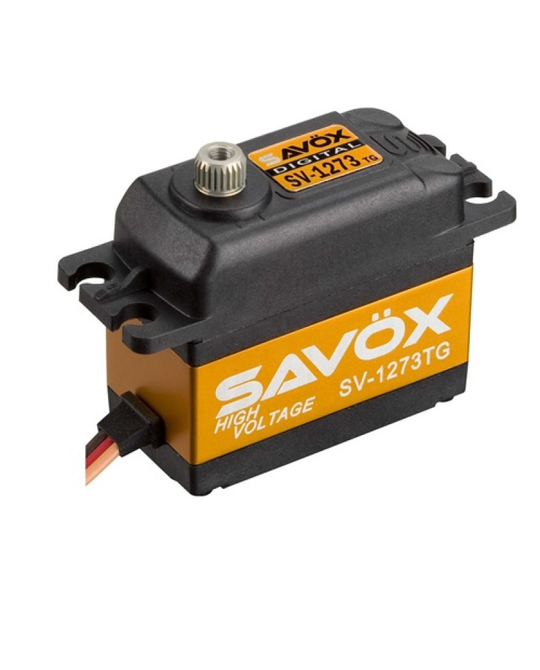

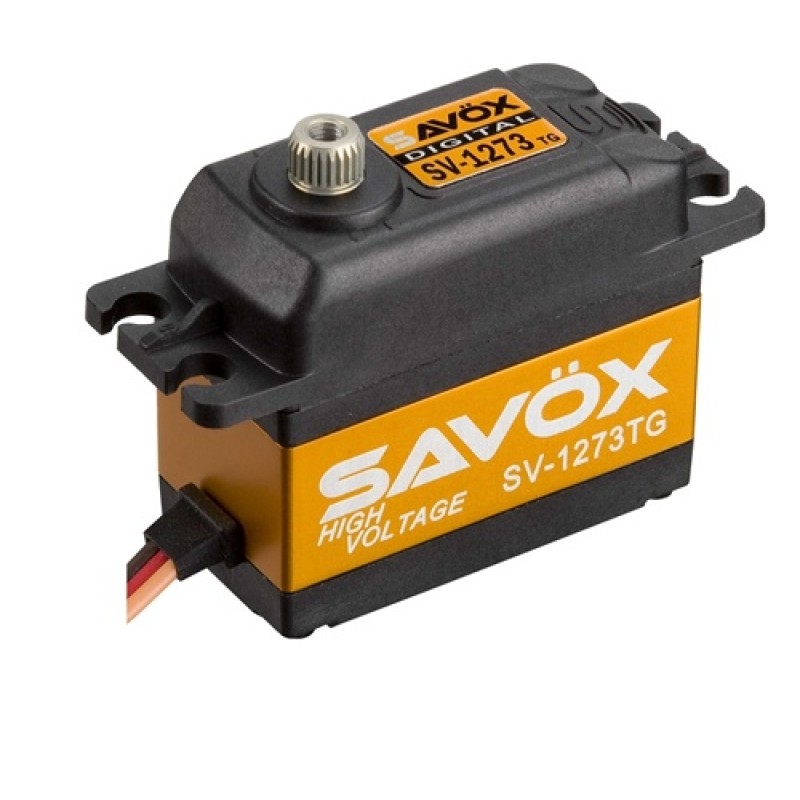

This is the Savox SV-1273TG Ultra Speed High Voltage Titanium Gear Digital Servo-savsv1273tg.
Features:
- Extremely fast for its size at .065 sec/60.
- Super strong and precision made unique steel gears provide high level of durability and survives heavy use.
- Coreless motor brings output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage native 2s LiPo operation.
- Water-proof with 4 silicon seals.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for large-scale airplane, jet, and 1/5thscale surface.
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 63.0
Speed(@6.0V sec/60): .08
Torque(@6.0V oz-in): 194.4
Speed(@7.4V sec/60): .065
Torque(@7.4V oz-in): 222.2
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
