Specifications

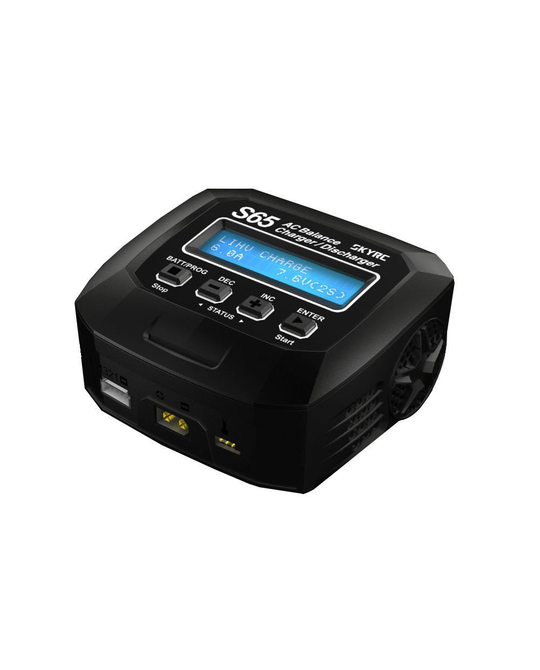

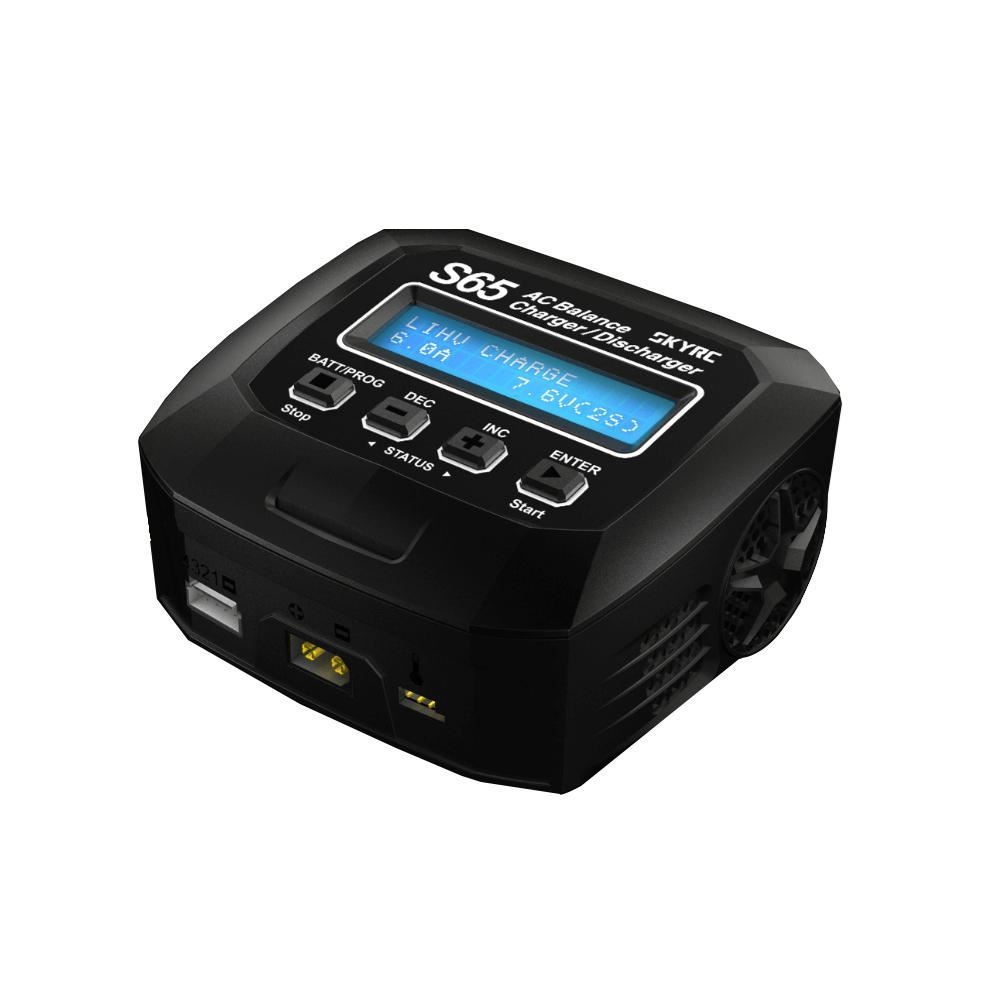

S65 Charger
Suitable for charging and discharging LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. For Pb battery, AGM Charge and Cold Charge mode are available.
Size and Weight
Case Material: Plastic
Case Size: 118*115*45mm
Weight: 315g
Power
Input Voltage: AC 100-240V
Charge Wattage: 65W
Discharge Wattage: 10W
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb: 3-6 cells
Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-6.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 2-4 cells
Balance Current: 300mA/cell Max
Safety Timer: 1-720minutes off
Charge Method:
CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
