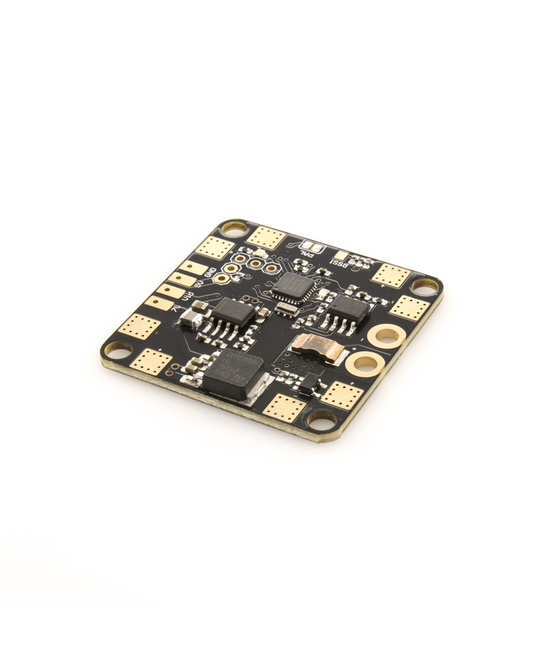

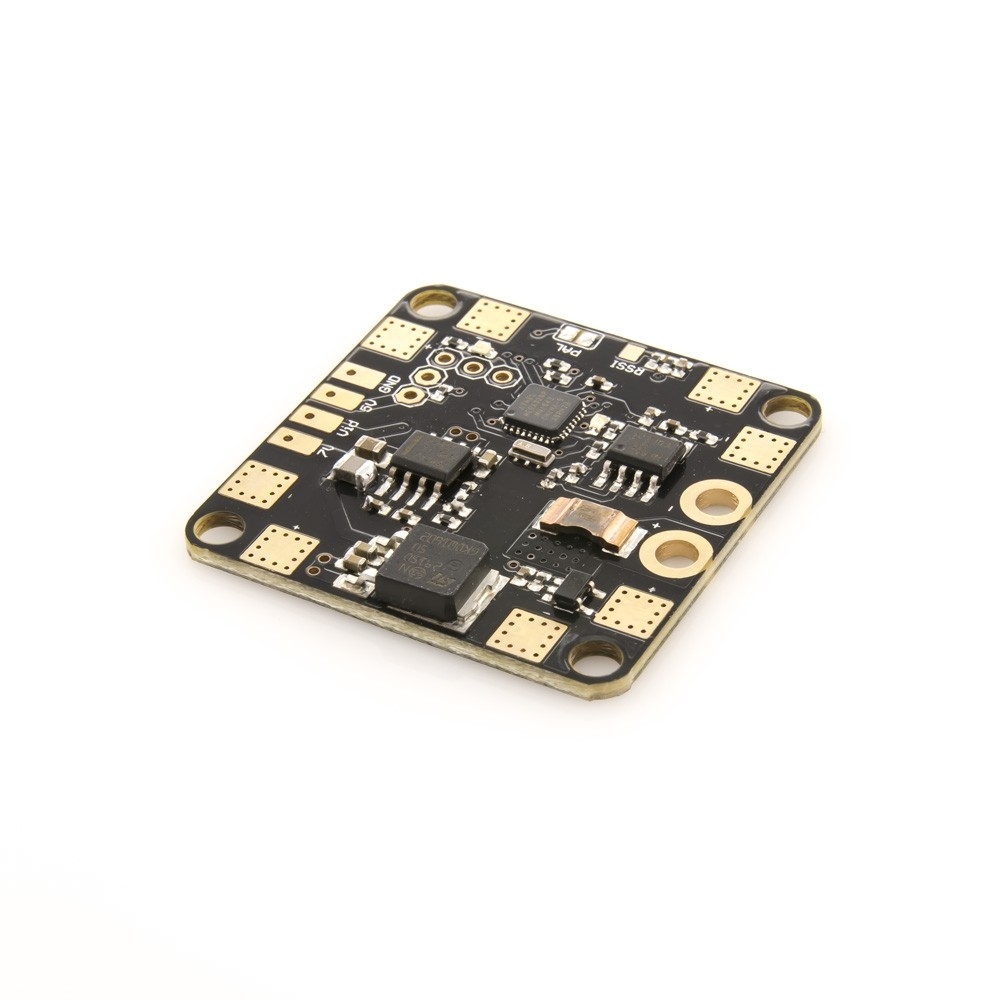

The PowerOSD RACE is an easy to use PDB with built in OSD with no software configuration required. The Mini Power Distribution Board with built-in SMART OSD functionality. Completely developed in the U.S and backed by QuadRevo support. Every unit gets tested in the U.S prior to packaging and shipment to you.
The PowerOSD is designed to be completely plug and play. No hooking up to the computer or
downloading firmwares or learning yet another piece of software to use.
- 150A continuous, 200A peak
- Solder pads on the corner of the board and on both sides of the board for easy installation
- Power distribution board with built in OSD
- Onboard 5V* regulator output with 1.5A continuous current capability
- Onboard 7V* regulator output with 2A continuous current capability
- Best in industry active on board power filtering for crystal clear video
- Flight timer display
- Primary battery on screen voltage display (Volts)
- Low battery on screen alarm alerting you to land
- System current draw on screen display (Amps)
- System battery consumption meter (mAH used)
- Radio reception meter (RSSI) on screen display
- Selectable PAL / NTSC modes
