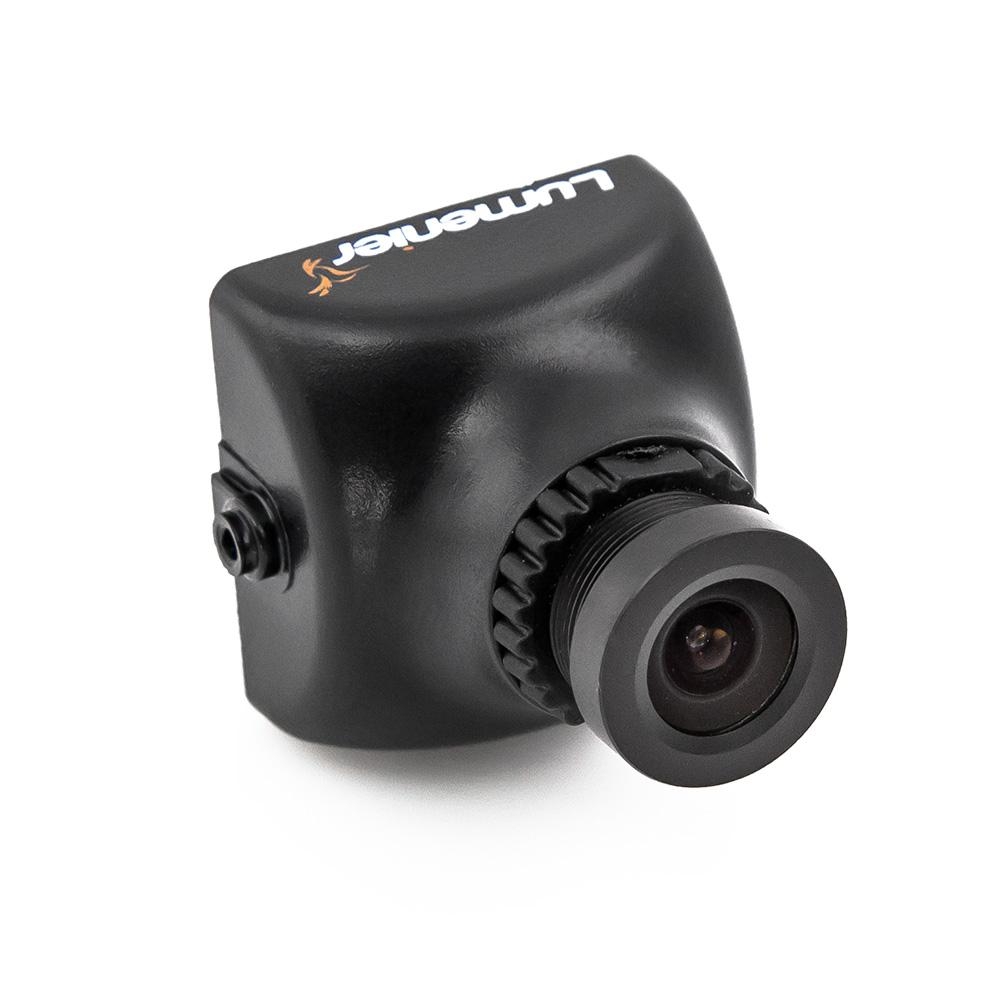

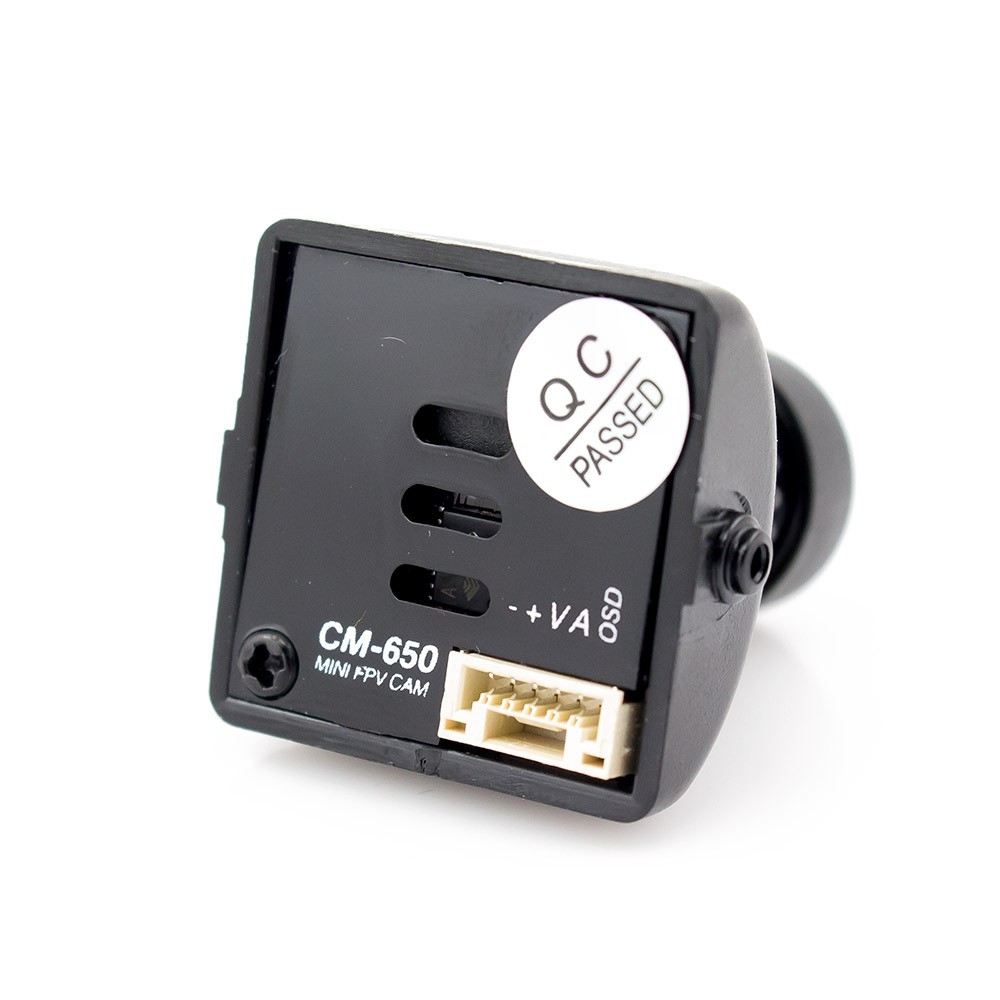

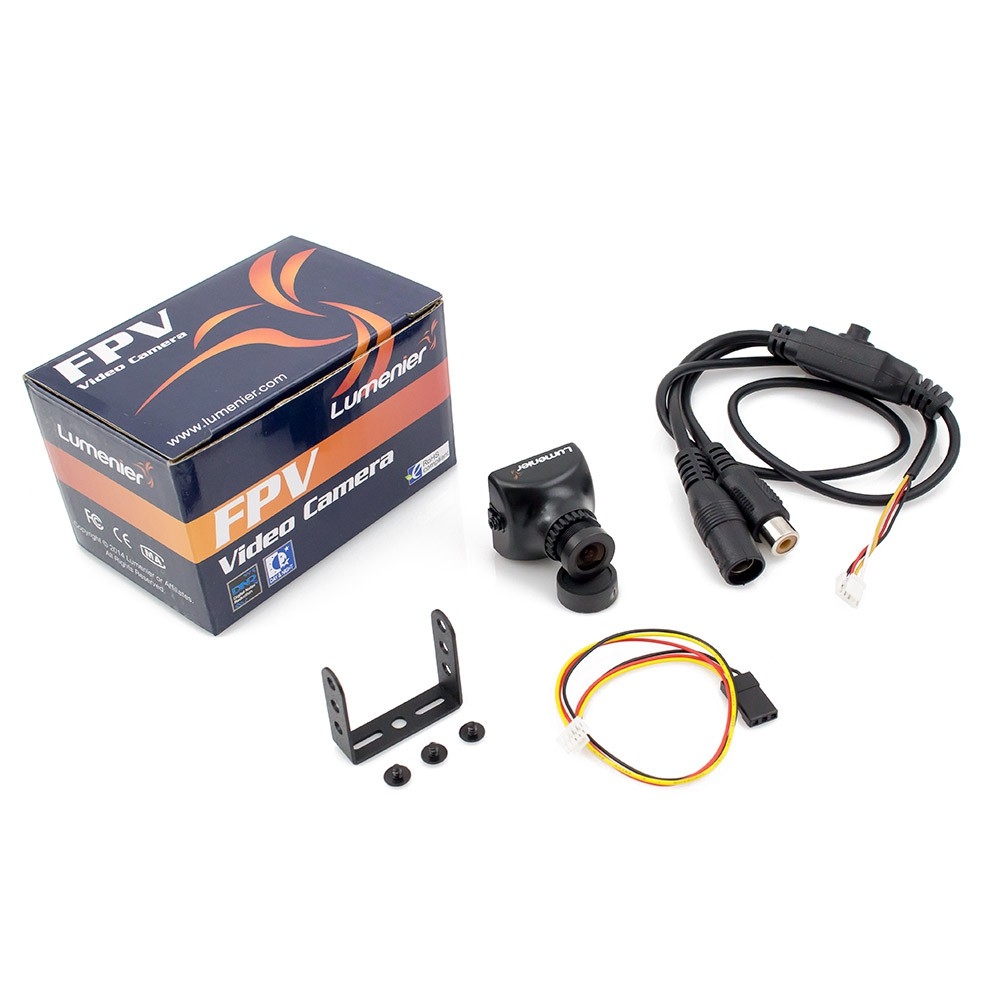

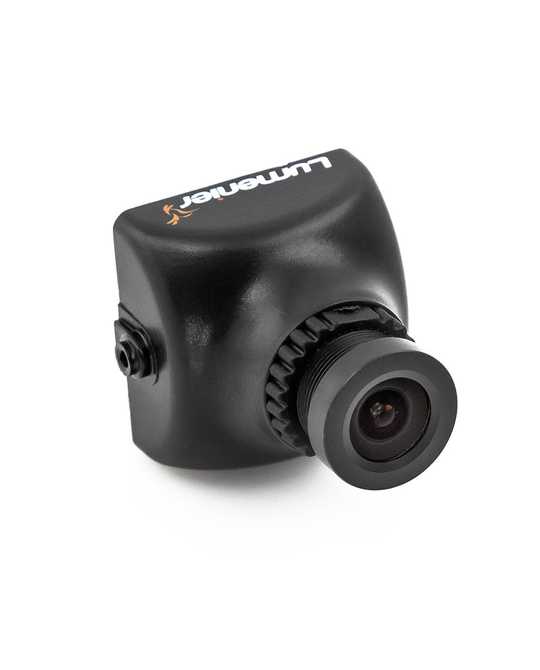

A high quality Lumenier 650TVL FPV camera with full OSD controls. The camera comes in a small, aerodynamic enclosure that is only 26x26mm weighing 14 grams.
The camera is small and compact but also full of features, giving you the best of both size and performance! This camera works well with Fat Shark and ImmersionRC transmitters which power cameras at 5v. (be sure to re-pin the servo cable to match the VTx)
- 650TVL
- 2.8mm(default) / 3.6mm/ 4mmLens
- Suitable for FPV running on 5-20v power
- Low illumination: 0.01Lux
- 1/3" SONY SUPER HAD II CCD
- Nextchip 2040
- Powerful OSD menu
- D-WDR (Wide Dynamic Range)
- 2D-DNR (Digital Noise Reduction)
- Low Power Consumption(70mA)
- Mirror function
Specifications
| CCD | 1/3” Sony SUPER HAD II CCD |
| Pixel | NTSC: 768(H)×494(V) |
| TV System | NTSC |
| Resolution | 650TVL |
| Synchronization | internal synchronize |
| Shutter Speed (CCD IRIS) | NTSC: 1/65~1/100000 sec |
| Noise | > 65 (AGC OFF) |
| Video Out | 1.2Vp-p,75ohm, synchronize |
| Horizontal Resolution | Color 700TVL |
| Min. Illumination | 0.01Lux |
| Auto Gain | Off/Low/Mid/High |
| Back Light Compensation (BLC) | Off /Back light compensation/ Strong light suppression |
| Private shading (PRIVACY) | 1~8 private shading area |
| Motion Detection (MD) | On/ Off (Multi level sensitivity settable) |
| Auto White Balance | Manual / Auto / Auto track |
| Mirror | Horizontal Mirror optional |
| Negative | Positive / Negative optional |
| Color to B&W | Auto |
| DNR | 2DNR |
| Day / Night Shift | Auto/ Color/ B&W/ External control (can set start and end position ) |
| Menu (OSD) | English menu |
| White Dot Repair | Support |
| Image Adjustment | Support |
| Camera Title | Support |
| Power Requirement | DC 5V-20V (2-5s Lipo Battery) |
| Working Temperature | -10 C ~ +50 C |
| Working Humidity | 20~80% |
| Storage Temperature | -40 C ~ +65 C |
| Storage Humidity | 20~95% |
| Dimensions(mm) | 26X26(W*L - Includes case) |
| Power Consumption | 70mA |
