Little BLHeli PRO 20A 4- in- 1 ESC w/ 5v B - 6099

$144.70
Code:GF6099

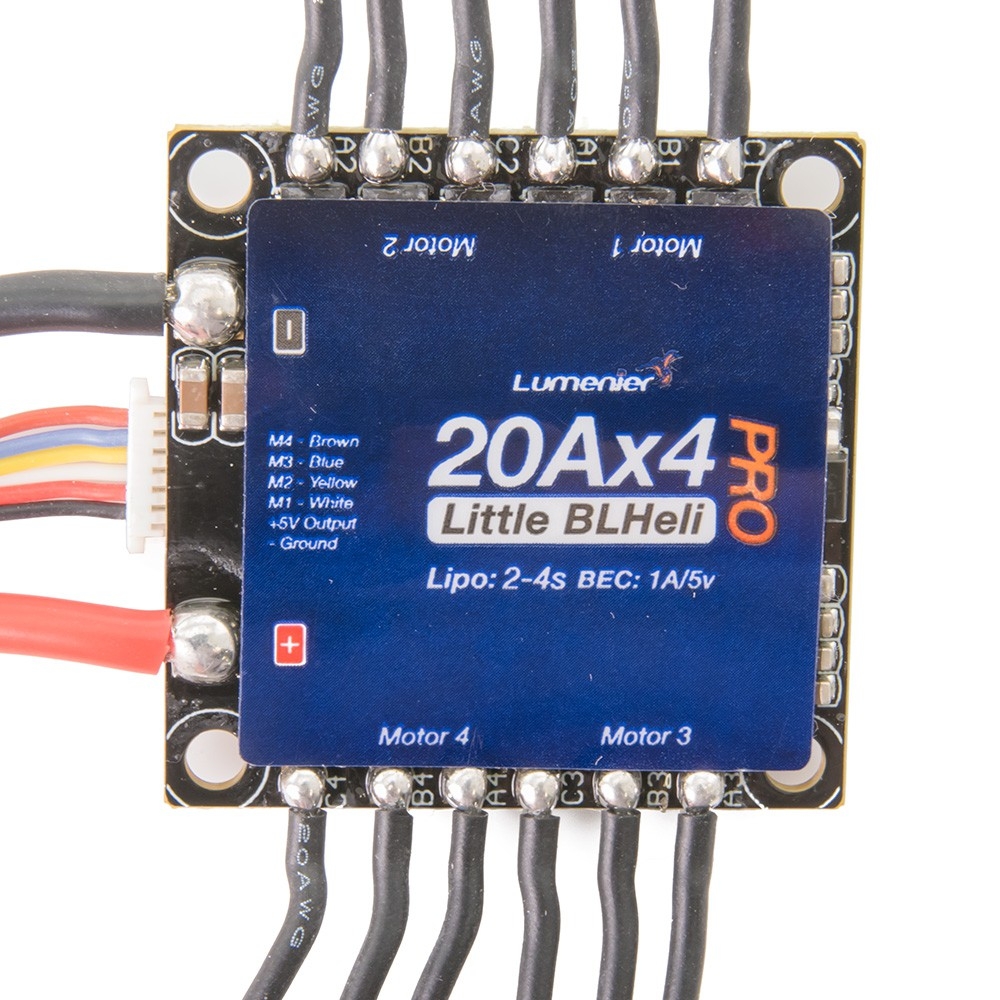

A 4 in 1 version of the the Lumenier 20A OPTO Little BLHeli Pro ESC (also known as the Little Bee), a top performing electronic speed controller with fast mosfet driven, dedicated driver chips on a quality PCB. The Pro version also features a new Silabs processor, the F396. This gives superior braking and freewheeling performance. The motor braking exceptionally fast thanks to the Silabs processor along with high quality gate drivers.

The Lumenier Little BLHeli is signal wire programmable with an Arduino Nano v3 board, or other Silab programmers that are compatible with the BLHeli bootloader. (ex. through your flight controller, Cleanflight, Betaflight etc.

Price: $144.70
Availability:
Add to wishlist
Specs
  • Input: 2-4s Lipo
  • Constant: 20 Amps
  • Burst: 30 Amps
  • Weight: 20g w/ wires
  • Dimensions: 36x36x3mm
  • Motor wire: 70mm
  • Signal wire: 100mm
  • MCU: Silabs F396
  • PCB - 4 Layer Blind Pole PCB - 3oz Pour
  • Mosfet: N-Channel
  • BEC: 5v 1A
  • Supports Damped mode, Oneshot125 and can be flashed with Multishot
