AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.
To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional MZW446 gyro unit. The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.
●MINI-Z AWD Readyset based on MA-020 chassis.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready for action!

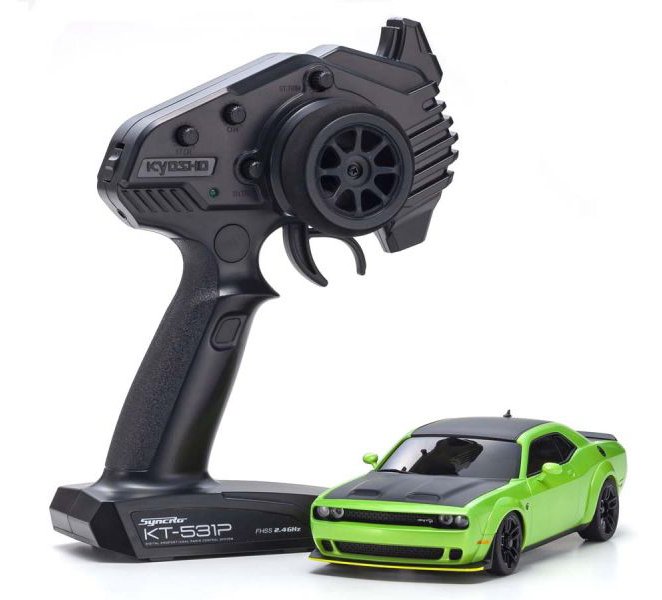

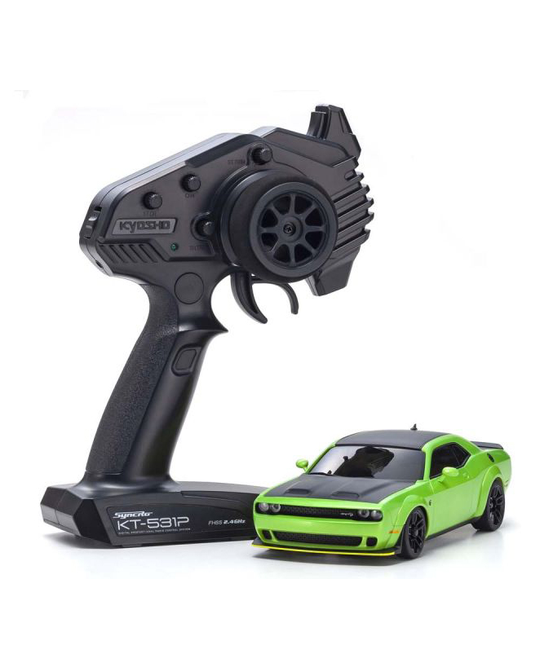

●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.

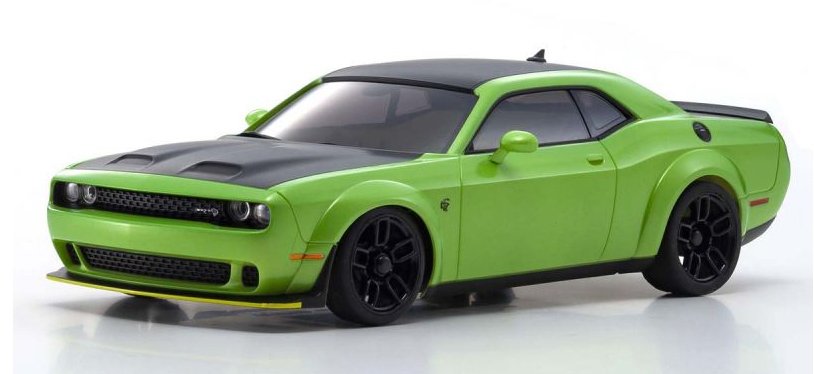

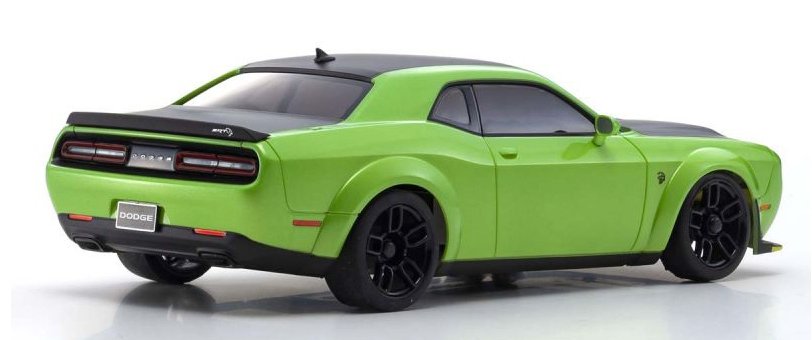

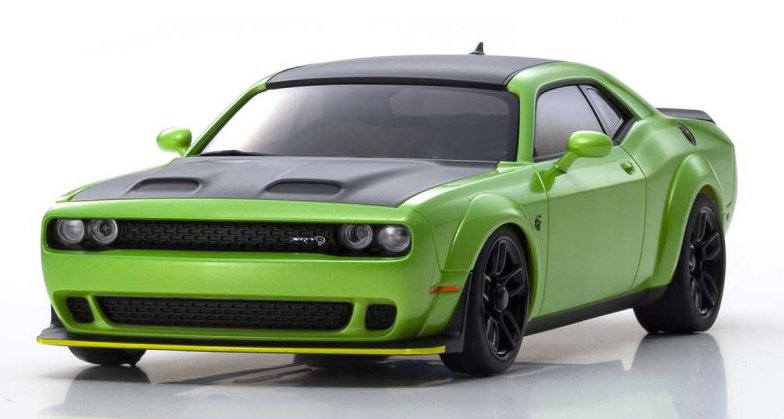

●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
●Coil spring on front suspension can be easily replaced without tools.
●wide range of optional parts is available to be installed.
●Note) Optional ICS can NOT be used. Also, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (sold separately).
■Length 171.0mm
■Width 75.0mm
■Height 50.0mm
■Chassis MA-020-W
■Wheelbase 98.0mm（LL）
■Tread F : 64.5mm R : 62.0mm
■Tire F : Φ25.0mm×8.5mm R : Φ25.0mm×11.0mm
■Gear ratio 7.23、6.38、5.71、5.97、5.34、4.97、4.5：1
■Front Wheel Offset Narrow +1.5mm
■Rear Wheel Offset Wide +1.5mm
■R/C System Syncro KT-531P
■Weight 193g
＜ Required for Operation ＞
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter
