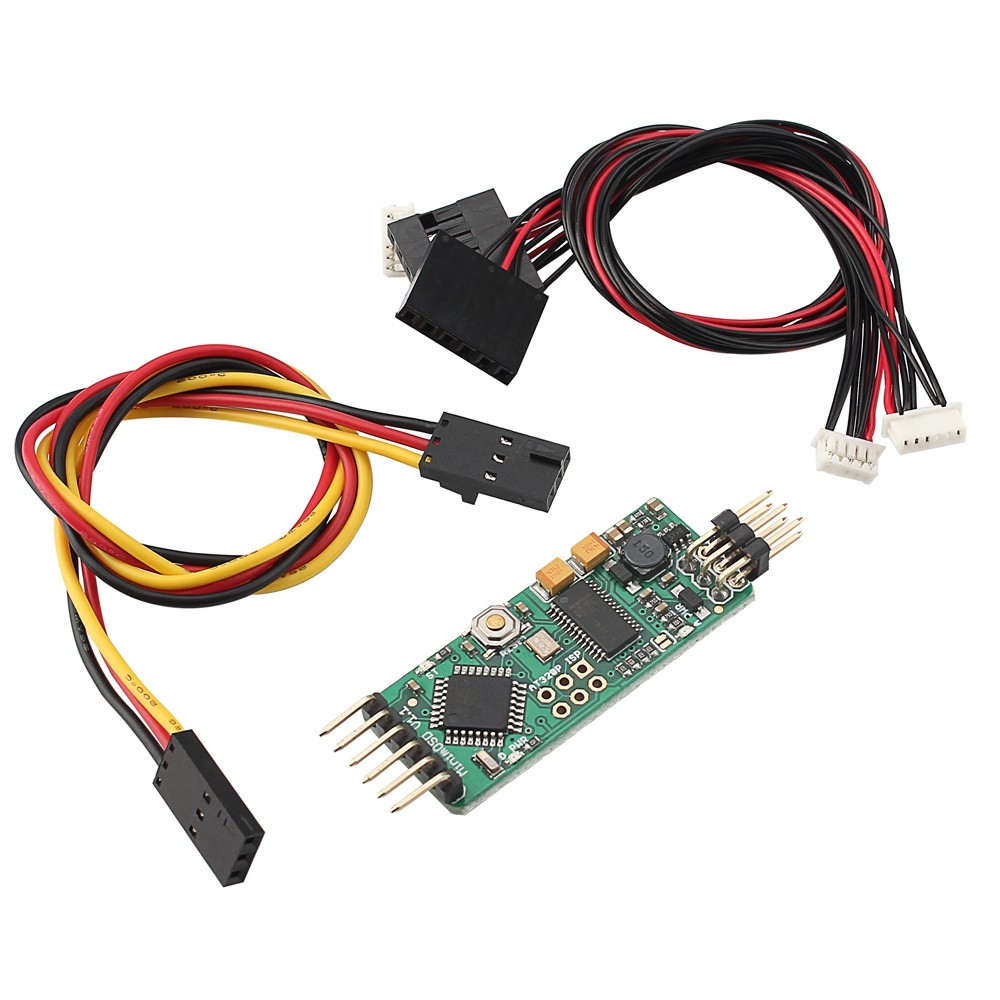

Holybro Minim OSD v1.1 - 4428

$42.70
Code:GF4428

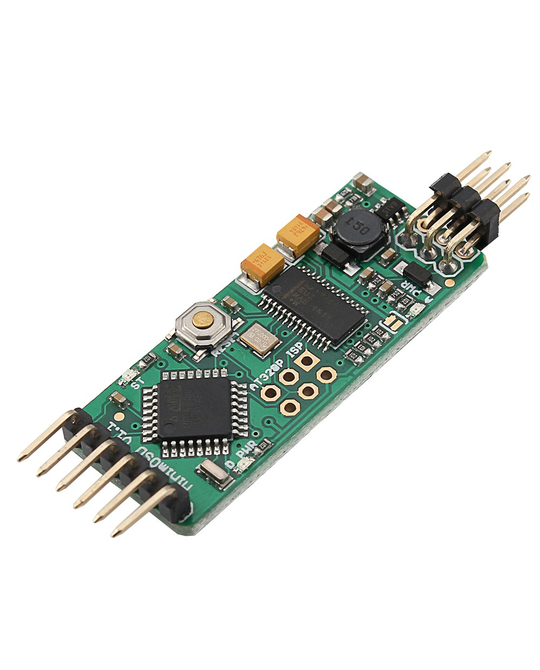

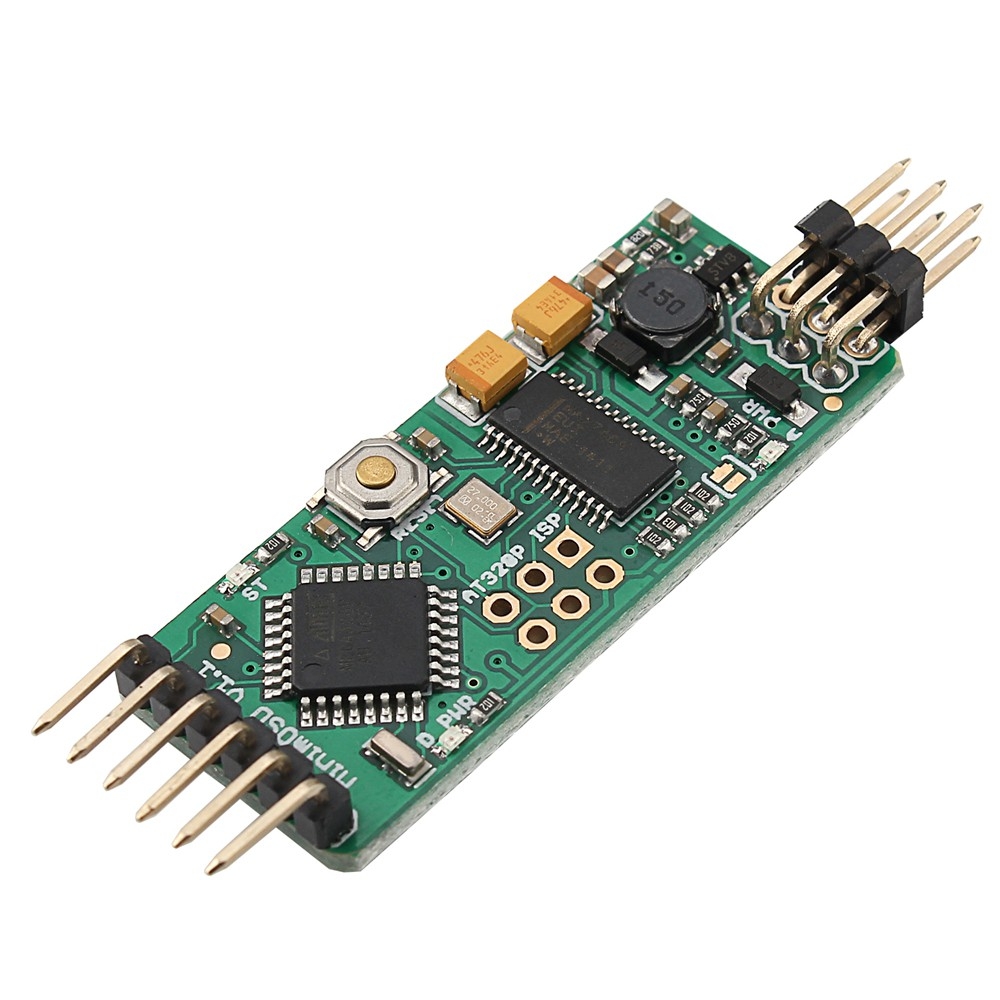

This is a mini Arduino based on-screen display board. It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as small as possible.

It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI-compatible 6-pin cable.

It features two independent power and ground sections to isolate the OSD's analog stage: a +5V section for the ATmega and the OSD's digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD's analog stage, powered through the video in/out header and capable of handling up to +12V input.

Price: $42.70
Availability:
Add to wishlist
Specs
  • ATmega328P with Arduino bootloader
  • MAX7456 monochrome on-screen display
  • FTDI cable compatible pinout
  • Standard 6-pin ISP header
  • Two independent power sections with an LED indicator on each
  • Solder jumpers for combining the power sections
  • +5V 500mA regulator for up to +12V supply input (5-12v range)
  • Solder jumper for PAL video option

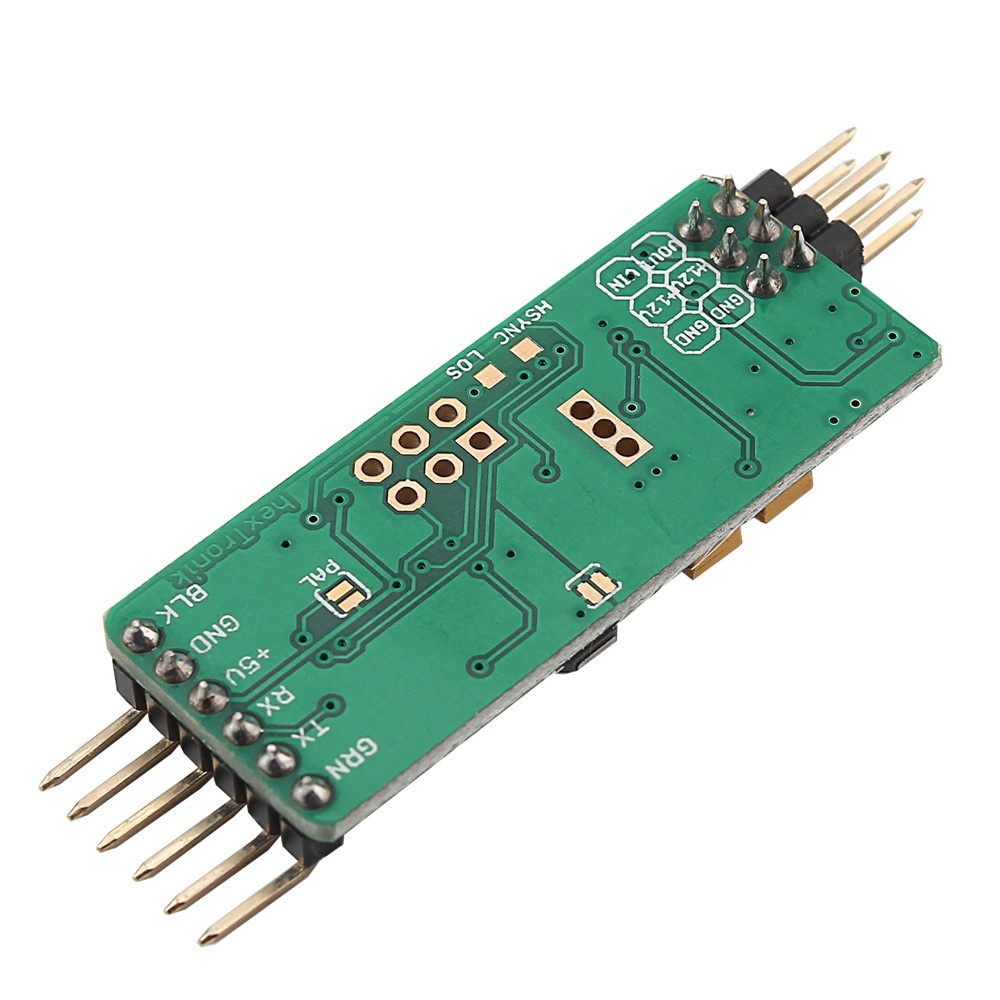

  • Exposed test points for HSYNC and LOS
  • Voltage: 5-12v
  • Dimensions: 50 x 18 x 10mm
  • Weight 4g
