Micro FPV Camera with Upgraded Lens & 5.8GHz 40CH 25mW VTX

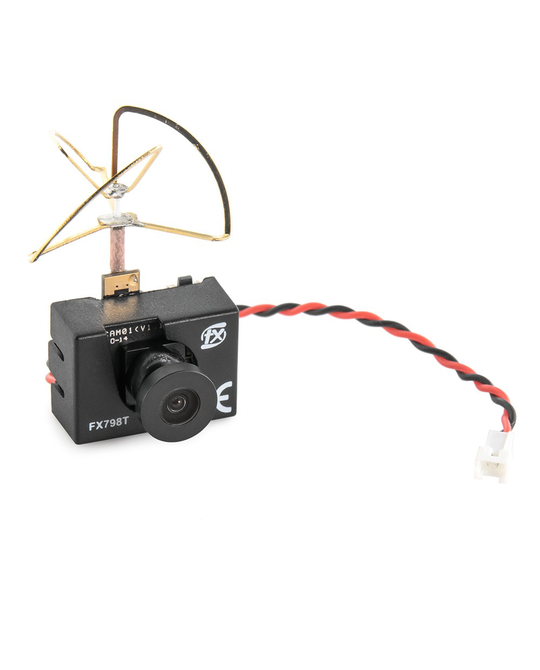

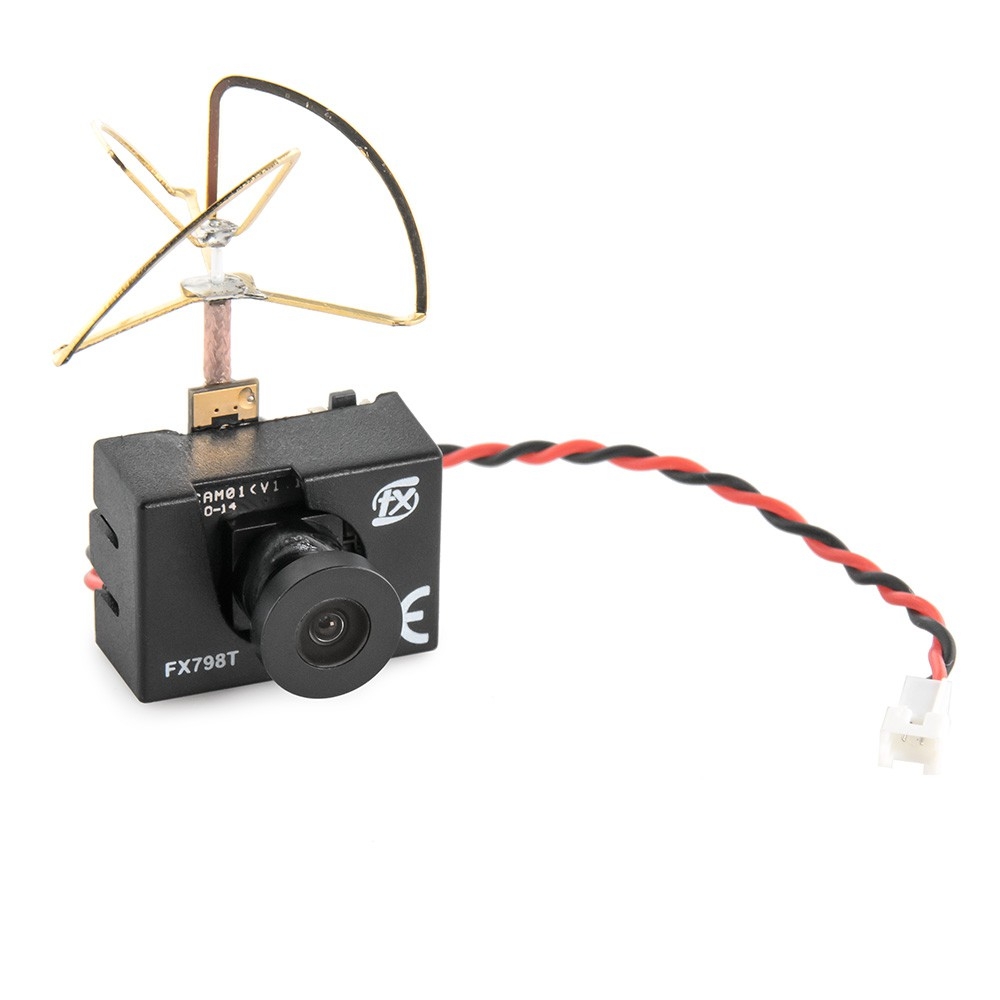

The FX798T Micro FPV Camera with upgraded lens & 5.8GHz 40CH 25mW VTX is extremely small and could be installed on almost anything. The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is a popular choice for adding FPV to the Blade Inductrix micro quadcopter.

This new version come with a pre-installed 120 degree high quality lens (stock lens is 140 degrees and less sharp). This new lens produces a sharper and clearer image compared the standard FX798T lens.

It’s easy to install and operate with one push button to change channels and bands. Just plug into a little 1S Lipolybattery or onto your 5V rail and you are ready to go.

It has excellent video and low latency for such a small package. The combo also includes a splitter and a circular polarized 5.8G tuned antenna for the best video signal.

Features

• Upgraded 120 degree sharp lens
• Micro sized and lightweight (4.5g)
• 40CH VTX
• Easy install, plug and play
• Push button control instead of switch to change channels
• Powered by 1S 3.5V LiPoly battery

Specs

• Transmitter power: 25mW
• Input power: 2.5~5V
• Camera resolution: 600TVL
• Min illumination: 1 lux
• Field of view: 120deg viewing angle
• Antenna dimensions: 20 x 25mm diameter
• Antenna: 3 lobe right hand circular polarized
• Video output: NTSC
• Frequency: 5.8GHz 5 bands 40 channels
• Raceband: 5658-5917
• Size: 21x19x17mm (excluding antenna)
• Weight: 4.5g

Channels:

Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866

Operation:

• Push Button: Long press for band, Short press for channel
• 2 row LED indicators; 5 for band, 8 for channel
