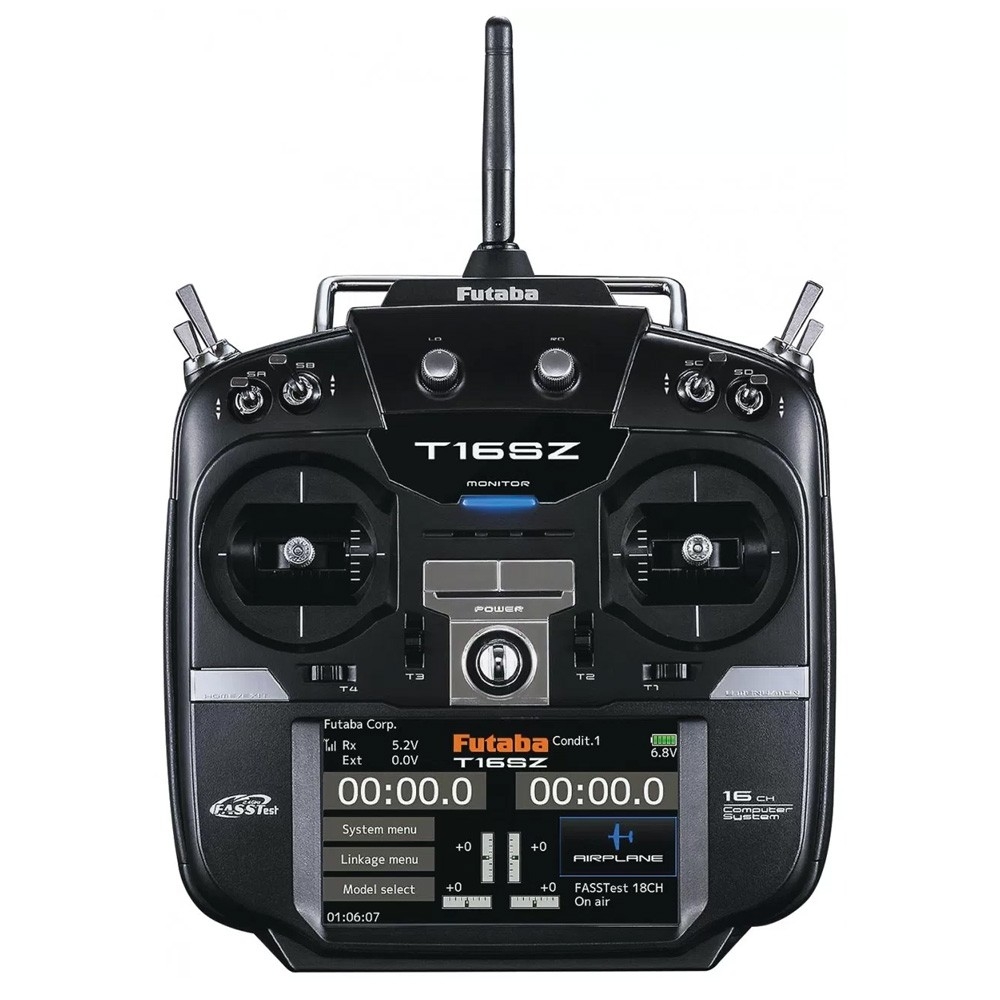

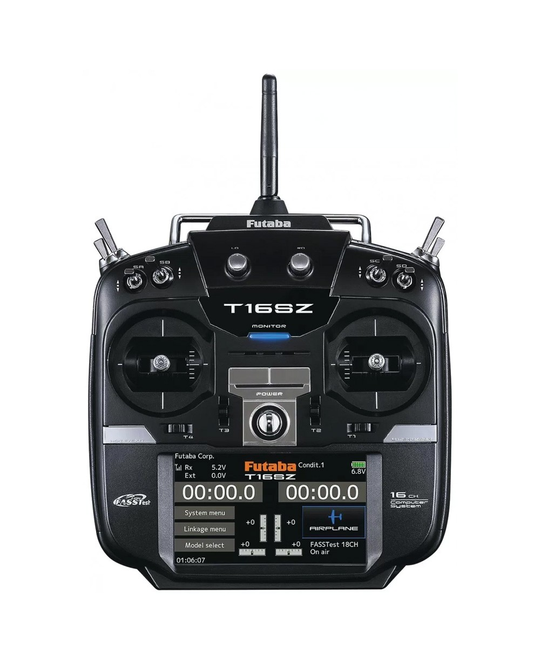

Futaba 16SZ 16-Channel Transmitter - 16SZ
Roll over to zoom in or click to enlarge
Futaba 16SZ 16-Channel Transmitter - 16SZ

Futaba

Futaba 16SZ 16-Channel Transmitter - 16SZ

$1,099.90
Code:TB16SZ1
If you want a radio system that can handle any challenge, step up to the 16SZ. It’s compatible with all of the popular protocols: FASSTest, FASST, S-FHSS and T-FHSS. It has a large 4.3" LCD touch screen. Programming is easy and intuitive, for airplanes, helis, gliders and drones. All this plus a high-voltage S.Bus2 receiver, the convenience of 30-model memory, and much, much more.

pic of R7008SB receiver/FUTL7675 (see larger view)
The high-voltage R7008SB receiver offers you a number of servo and channel choices. Use up to 8 channels with standard PWM outputs, or up to 18 channels (16 proportional + 2 switched) with S.Bus and S.Bus2 outputs.

Features:

  • 16 proportional channels, 2 switched
  • Compatible with:
    • FASSTest, FASST, S-FHSS and T-FHSS protocols
    • Futaba HV (High-Voltage) receivers
    • All Futaba telemetry sensors
  • Free online software upgrades
  • 4.3" LCD touch screen
  • 30-model memory
  • 15-character user and model naming
  • Sub trims (240 steps)
  • Servo reversing
  • Trim settings (adjustable step, rate & mode)
  • Servo speed adjustment
  • AFR/DR
  • AFR curve mode (3)
  • AFR curve point (17 points)
  • Idle down
  • Logic switch
  • Full flight condition
  • 10 programmable mixes
  • Throttle cut
  • S.Bus servo programming editor
  • High-voltage R7008SB receiver
  • Swash and throttle mixing
  • V-tail mixing
  • End point adjustment
  • Adjustable servo speed
  • 8 flight conditions
  • 3-axis gyro support
  • Micro memory card slot
  • Voice message/audio earphone jack
  • Up/down integral timer (2)
  • Throttle timer
  • Lap timer/memory
  • Battery fail safe
  • Stick calibration
  • Eight toggle switches
  • Two assignable front dials
  • Four assignable trim levers
  • Two assignable side levers
  • 6.0V NiMH rechargeable battery
  • Trainer S.Bus port
  • Vibration alert
  • 180° antenna rotation and 90° angle adjustment
  • Multi language (9 languages)

Airplane Features:

  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Airbrake to elevator mix
  • Rudder to aileron mix
  • Rudder to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Snap roll
  • Airbrake mix
  • V-tail
  • Ailevator
  • Winglet
  • Motor mix
  • Multi-engine
  • Gyro sensor

Helicopter Features:

  • 8 swash types
  • Pitch/throttle curve
  • Pitch/throttle curve mode (3)
  • 17 point pitch/throttle curve
  • Acceleration
  • Throttle hold
  • Swash mixing
  • Throttle mixing
  • Pitch to needle mixing
  • Pitch to rudder mixing
  • Gyro sensor (3)
  • Governor
  • Condition hold
  • Hovering pitch
  • Hovering throttle
  • Swash AFR
  • Swash setting
  • Swash ring
  • Throttle limiter

Glider Features:

  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Rudder to aileron mix
  • Airbrake to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Camber flap to elevator mix
  • Butterfly mixing
  • Butterfly to elevator
  • Trim mix 1
  • Trim mix 2
  • V-tail
  • Ailevator
  • Winglet
  • Motor mix

Multicopter Features:

  • Gyro

Telemetry Functions:

  • Receiver battery
  • Temperature
  • RPM (magnetic and optic)
  • Altitude
  • GPS
  • Voltage
  • Current
  • Servo
  • Voice (English, German, Japanese, French)
  • Data logging


Price: $1,099.90
