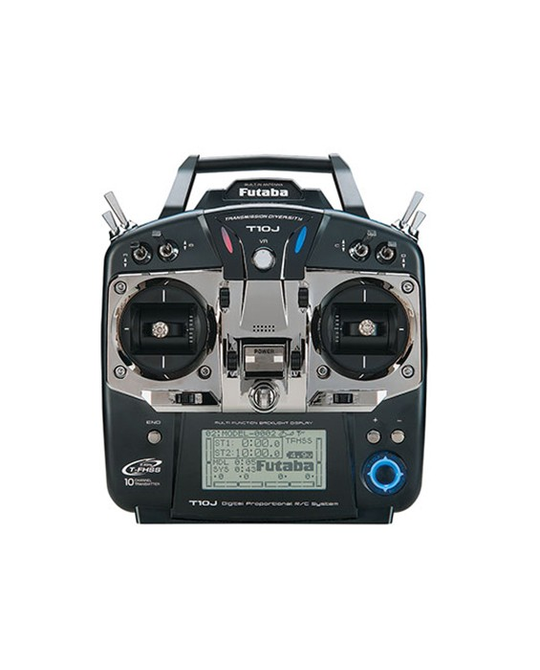

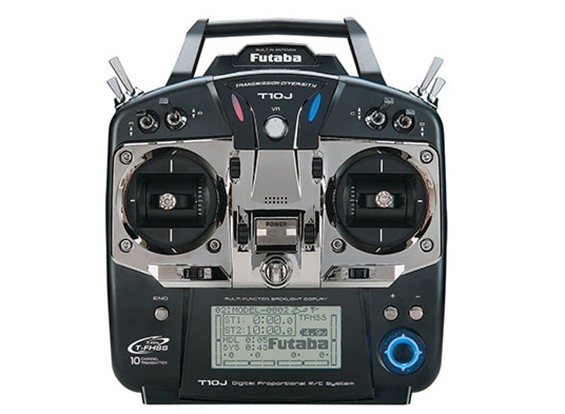

Futaba 10J 10ch 2.4GHz Transmitter
10 Channels, Telemetry, Voice Output, Programmability
The 10J has it all!
Futaba consistently delivers the very best radios and the 10J is no exception. Its full list of features is below, but here are a few of the best: 10 channels, telemetry capable, fully programmable and user updateable. The functions can be assigned to a multitude sticks, switches, knobs and levers. The telemetry data can be viewed on the backlit LCD screen and audibly reported through headphones. Three buttons and a jog dial make it exceptionally easy to program. Plus, it's light weight, easy to handle and equipped with an astonishing 30 model memory. Updating is simple, so your transmitter will never be out of date.
All those features and more are included in a radio that's also the first to have multi-rotor helicopter programming. It's perfect for a whole host of applications: Airplane, helicopter, glider and multi-rotor menus are all included.
Even with all its features, the Futaba 10J is still the most inexpensive telemetry enabled radio system on the planet. It's priced right for a first time radio, but packed with so many features pros will love it as well.
When you're ready for a radio that can fly anything, comes packed with features and includes a powerful telemetry-enabled receiver, pick up the Futaba 10J. You'll be glad you did.
| The large backlit LCD display helps make programming easy, as well as clearly showing the timers and telemetry data. | | | | Acrobatic Home Screen | | | | Multi-rotor Home Screen | |
| Glider Home Screen | | | | Helicopter Home Screen | | | | Model Type Selection Menu | |
| Stick Position Alarm | | | | Telemetry Data | | | | Receiver Type Selection Menu | |
| Glider Butterfly Setup Menu | | | | 5-point Throttle Curves | | | | Programmable Mixing | |
| Built-in S.Bus Servo Programmer | | | | | |
System Features: - Futaba T-FHSS, S-FHSS 2.4GHz security
- Airplane, heli, glider and multi-rotor software
- 30-model memory
- S.Bus capable T-FHSS receiver
- Telemetry
- Synthesized voice for telemetry data
- Vibration alerts for alarm conditions and low battery
- User-updatable software (requires optional CIU-2 interface)
- Wireless data transfer among 10J transmitters
- Built-in S.Bus programming link for S.Bus servos
- 10-character model and user naming
- Large (128 x 64 dot) backlit LCD display
- 10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
- Built-in diversity antenna
- Jog dial and 3 buttons for fast, easy programming
- Sub-trim and fail-safe (all channels)
- Servo reversing, endpoint adjustment, digital trims, dual rates/exponential* & ATL
- Trim step adjustability
- Trainer system
- Throttle cut
- 2 count-up/-down timers + integrated timer
- Model timer
- Range check mode
- Servo cycle w/bar graph displays
- Assignable switch/lever/functions (Ch. 5-10)
| | Airplane Features: - 6 programmable mixes, plus:
- 9 factory-defined mixes
- Flaperons with differential rate
- Flap trim
- Differential ailerons
- Gyro sensitivity
- 5-point throttle & pitch curves
- Throttle delay
- Idle down
Helicopter Features: - 6 programmable mixes, plus:
- 10 factory-defined mixes
- 8 swash plate types
- 5 flight conditions w/delay
- Throttle curve (4 curves, 5 points)
- Pitch curve (5 curves, 5 points)
- Throttle hold & delay
- Swash AFR
- Electronic swash ring
| | Glider Menu: - 6 programmable mixes, plus:
- 3 factory-defined mixes
- 5 wing types
- Gyro sensitivity
- Motor menu
- 2 flight conditions
Multi-Rotor Menu: - 6 programmable mixes, plus:
- Gyro sensitivity/mixing
- Center stick alarm
|
