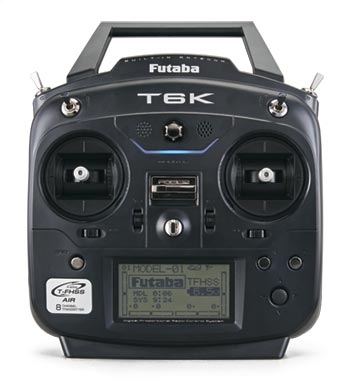

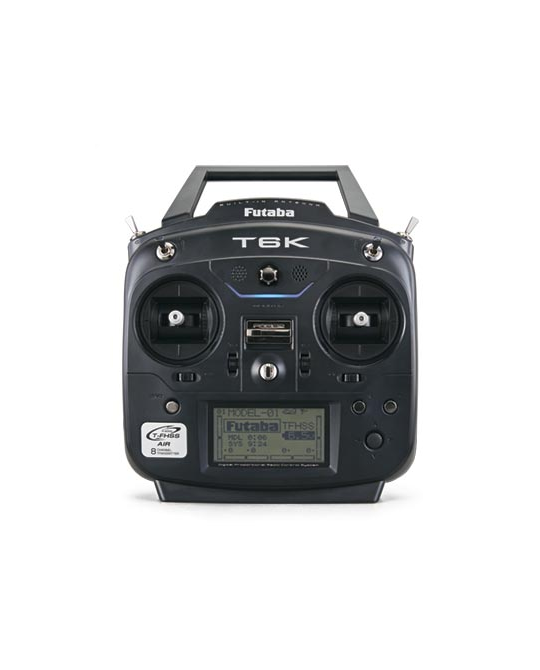

6K - 8ch 2.4GHz T-FHSS R3006SB - 6KH
Roll over to zoom in or click to enlarge
6K - 8ch 2.4GHz T-FHSS R3006SB - 6KH

Futaba

6K - 8ch 2.4GHz T-FHSS R3006SB - 6KH

$549.90
Code:TB6KH
To get the most radio for your money, check out the new 6K
an easy-to-program flight system with versatile functions that include telemetry,
S.Bus/S.Bus2 compatibility and 30 model memory.
With Version 2 updates, it's now a better value than ever.
The NEW 6K is an 8-channel system with additional telemetry functions, expanded multicopter flight modes and much more.

Two additional channels

  • Channels 7/8 are used through the R3006SB receiver's S.Bus/S.Bus2 ports
  • Allow for expansions or adding accessories
  • Can be assigned to any of the four switches or VR dial
  • Are included in Sub Trims, End Points, Reverse, Failsafe, Servo Monitor and Trainer

Expanded Flight Modes (Fly Mod) in multicopter programming

  • Priority — toggle through five different values assigned to flight modes on an assigned channel
  • Matrix — up to nine combinations using two, 3-position switches for controlling gimbals

Vibration alerts with timer functions and Throttle Integrate

SBS-01C current sensor and SBS-01V voltage sensor compatible


The included R3006SB receiver has six standard PWM ports plus S.Bus and S.Bus2 ports. You can use S.Bus as the main link to your servos or a combination of the ports. The S.Bus2 port allows bi-directional communication with T-FHSS Futaba air transmitters and the use of a wide array of telemetry sensors.




The versatile 6K meets the control needs of a wide range of R/C pilots!



Program navigation is easy and intuitive with the jog dial, +/- pads and end pad.


internal antenna

The 6K is a full-range system. Its antenna is inside the transmitter case for safety and convenient handling.

variable rate dial and speaker vents

This variable rate dial can be programmed for a variety of functions. A speaker provides audible alerts and cues for navigating the programming menus.

switches

Four assignable switches (three 3-position and one 2-position) offer maximum flexibility.

Priority flight conditions screenshots (3)

6K Version 2 multicopter programming has been expanded with five Priority and nine Matrix flight conditions.

Matrix flight conditions screenshots (3)

The nine Matrix flight conditions can be used to set up a tilt camera by assigning nine settings to two 3-position switches.

SBS-01C [FUTM0860] and SBS-01V [FUTM0855]

Using an SBS-01V External Voltage Telemetry Sensor and SBS-01C Current Telemetry Sensor, the 6K collects real time telemetry data for motor current, battery voltage and capacity. (not included)


System features

  • Airplane, Helicopter, Glider and Multicopter programming
  • S-FHSS/T-FHSS selectable
  • Telemetry system (T-FHSS) with data speech (via earphones) function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer, current, capacity and voltage
  • Built-in antenna (Full Range)
  • S.Bus/S.Bus2 servo setting functions programmable through the transmitter
  • Preset vibration alarms
  • 30 model memory
  • 8-character model/user naming
  • Programmable mixes (3-normal, 1-curve) for airplanes, helicopters, gliders and multi-rotors
  • Digital trims with variable step settings
  • Adjustable stick length and tension
  • Changeable switch/VR position and AUX channel function
  • Throttle position warning
  • Backlit 128x64 DOT LCD screen with adjustable display contrast
  • Software updateable through the CIU-2 or CIU-3 interface units
  • Screen Lock
  • Earphone/S.Bus/Trainer jacks
  • Assignable switches (three 3-position, one 2-position)
  • Range Check
  • Program navigation bay with jog dial, +/- pads and end pad
  • Data reset
  • Model copy
  • Selectable model type
  • Fail Safe
  • End Points
  • Trim/Trim Resets/Trim Steps
  • Sub Trim
  • Servo Reversing
  • Parameter functions
  • Servo monitor/Test
  • Wireless model data transfer (to other T6K transmitters)
  • Timer-System and Model (Up/Down/Down-Stop/THR Integrate) w/Vibration Alert
  • Trainer system
  • Power Saver

Airplane Functions

  • Wing Type (5-wing, 2-tail)
  • Throttle Cut
  • Dual Rate/Expo
  • Throttle Curve
  • Idle down
  • Gyro
  • Aileron differential
  • V-Tail
  • Camber
  • Air Brake
  • Elevator-to-Flap mixing
  • Flap-to-Elevator mixing
  • Elevon mixing

Glider Functions

  • Wing Type (5-Wing, 2-Tail)
  • Condition select
  • Dual Rate/Expo
  • Motor switch
  • Gyro
  • Aileron Differential
  • V-tail
  • Butterfly mixing
  • Trim mixing
  • Elevator-to-Camber mixing
  • Camber mixing
  • Aileron-to-Camber mixing

Helicopter Functions

  • Swash type (6)
  • Condition Select
  • Throttle Cut
  • Dual Rate/Expo
  • Trim Offset
  • Delay
  • Gyro mixing
  • Swash AFR
  • Swash mixing
  • Throttle Curve (5-point)
  • Pitch Curve (5-point)
  • Pitch-to-Rudder mixing
  • Throttle Hold
  • Hovering throttle
  • Hovering pitch

Multicopter Functions

  • Flight Mode
  • Center alarm
  • Dual Rate/Expo
  • Throttle Curve
  • Throttle Delay
  • Gyro

Six Languages

  • English
  • German
  • French
  • Spanish
  • Italian
  • Dutch


Price: $549.90
Availability:
Enter a quantity:
Add to wishlist
Specs

Transmitter Specifications:

Type
2-stick, T-FHSS/S-FHSS selectable
Channels
8 (channels 7/8 are used through the receiver S.Bus/S.Bus2 port)
Power Supply
4 "AA" cells; optional 6V NiMH or 6.6V LiFe batteries

Receiver Specifications:

R3006SB 2.4GHz T-FHSS S.Bus
Type
Full-range flight receiver
Modes
S-FHSS or T-FHSS
Features
bi-directional communication with a T-FHSS transmitter to utilize an array of telemetry sensors, S.Bus and S.Bus2 ports, along with 6 standard PWM ports; Dual Antenna Diversity, Easy Link, High Voltage, Battery Fail Safe, Channel Mode
Voltage Input
4.8V-7.4V
Dimensions
1.7 x 0.98 x 0.35 in (43 x 25 x 8.8 mm)
Weight
0.3 oz (8.5 g)
