True-D V3 Diversity Receiver System - FPV-RX-TRUD3

$159.90
Code:FPV-RX-TRUD3

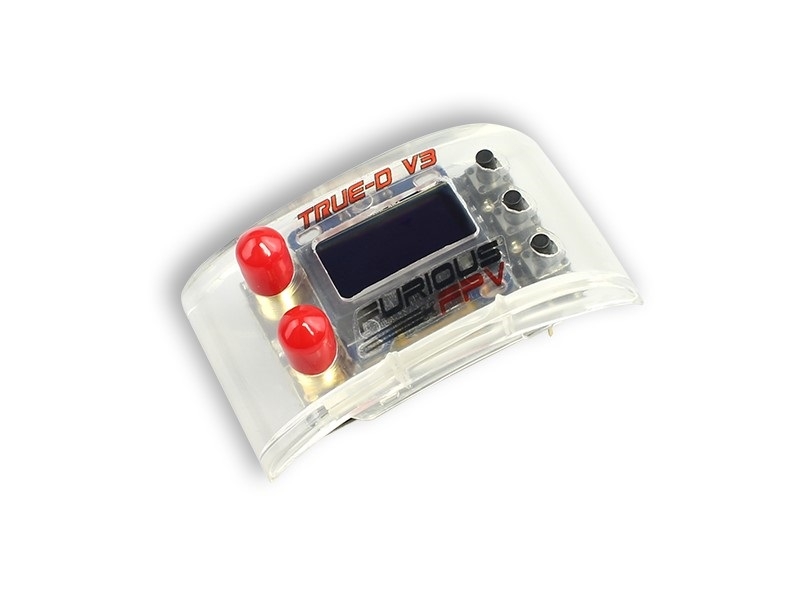

Furious TRUE-D V3 Diversity Receiver System - Clarity Redefined.

The best gets better with Furious FPV's TRUE-D V3 - an evolution of the most popular diversity system on the market today. With the V3, we've refined the TRUE-D with all new ergonomics and functionality, offering a unrivaled system that is designed to optimize your FatShark experience like no other receiver system available today.

Ergonomically sound with added levels of durability, we've introduced a multi button approach that does away with the previous scroll wheel to help better navigate the menu with goggles on or off. This new design also allows us to take advantage of built in FatShark hardware, offering on / off capabilities with the FatShark goggle buttons.

Incorporating all new firmware that is easier to use and more powerful than ever, the TRUE-D V3 utilizes an all new USB port for easy firmware updates, making new firmware installations painless, simple and to the point. Add in additional modules to help dissipate heat, the V3 also integrates a built in low voltage buzzer, providing pilots with crucial warning when power gets low.

Unlike average diversity systems that simply alternate channels at predetermined points, the Furious TRUE-D actively searches for the greatest level of signal strength via Smooth Switch technology - choosing the highest strength output for maximum video clarity. And with the new V3 system, a higher resolution RSSI is utilized with greater antenna switching capability, offering even better signal resolution & video clarity than any other model on the market today.

With a total of (40) available channels, the TRUE-D is hyper flexible, offering Manual Channel Setup, Auto Search Mode, and Working Channel Mode.  These different selections provide the end user with total control, allowing you to select what works the very best when it comes to your FPV systems.

Complicated and time consuming setup? Not a chance. Step into Easy View - an ultra simple interface that utilizes a high resolution LCD screen for all setup functionality. With the brand new multi button V3 interface, programming your TRUE-D is easier than ever, allowing instantaneous levels of adjustment via the optimized 3 button layout.

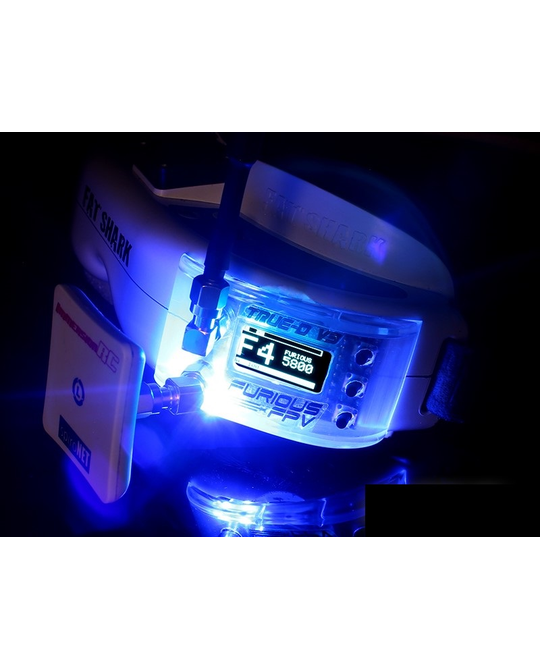

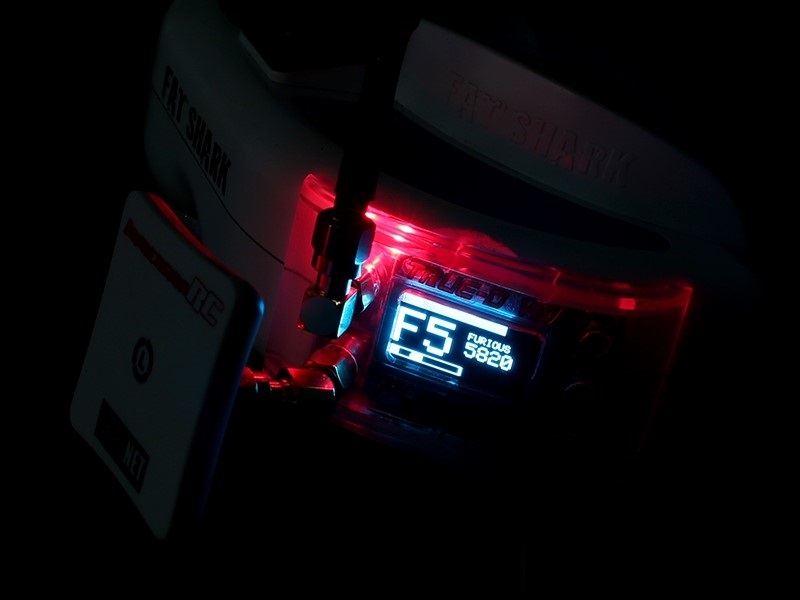

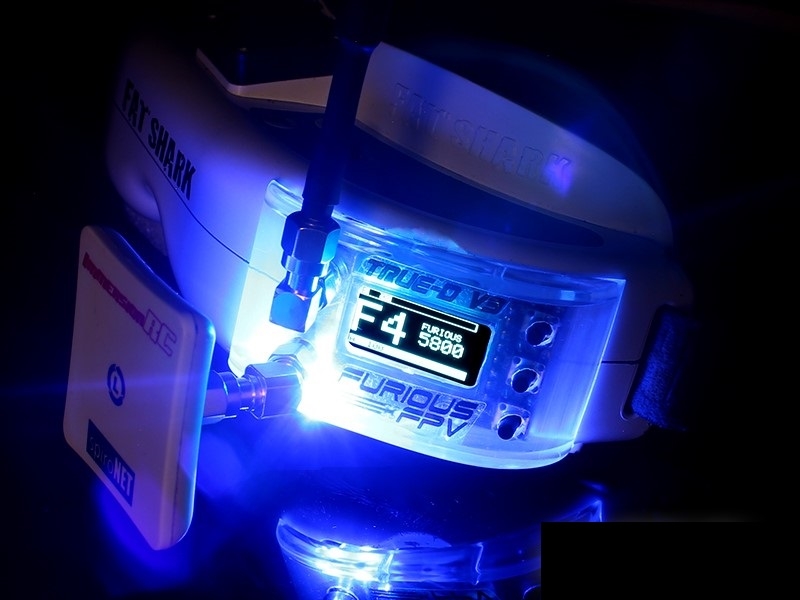

Compact and designed to be housed within the FatShark Dominator goggle sets, the Furious TRUE-D V3 system is a true "plug and play" setup that will pay massive dividends when it comes to pushing your FPV to the limits. With all new V3 capability, you are moments away from the very best FPV upgrade available today, providing epic levels of FPV clarity that must be seen to believe.

A Diversity receiver system is (2) receivers built into (1) package, allowing the pilot to choose (2) very different antenna systems for maximum levels of video range & clarity.

The most common antenna used is an omni-directional circular polarized antenna, which provides a specified element of range all around you. However, this radius of video range is limited, and after a specified distance, the video signal will degrade and fall away.

With a Diversity receiver, a 2nd antenna system can be used, allowing a more directional antenna to be chosen for much greater range. Directional antennas far outpace omni directional antennas in overall distance, and even though the beam pattern is more narrow than an omni antenna, directional antennas will certainly increase the given range available, equating to solid video clarity without frustrating signal losses.

With Diversity, you don't need to choose (1) antenna style over another. By pairing (2) vastly different antenna systems for a perfect mix of range and video clarity, the TRUE-D Diversity system rapidly switches between the (2) built in receivers, allowing the best overall signal strength to be utilized for maximum video clarity.

True Diversity Technology

With (2) receivers working together as (1), your video clarity & overall range is optimized as the TRUE-D Diversity system actively searches for the highest signal quality for maximum video clarity. Add an upgraded & optimized RSSI, and the V3 TRUE-D performs like never before with the very best antenna switching algorithms.

Smooth Switch Video

Instantaneously switching between antennas for optimum signal strength, Smooth Switch technology keeps your head in the race with the very best video quality available.

Updated 3 Button Layout

Stronger, easier and even more functional, we've incorporated an all new 3 button layout, allowing easy access to the entire TRUE-D menu. This allows easy access with the goggles on or off, providing an intuitive and robust interface that is simple and easy to use.

Easy View Simplicity

Make FPV ultra simple with Easy View technology. With Easy View, you are a finger press away from every adjustment you could possibly need, displayed in an easy to ready layout - all with the ease and simplicity of our new 3 button layout.

Push Button Power Up

To better conserve battery power and limit thermal loading, the TRUE-D V3 can be powered on & off via the stock FatShark button interface, or via the TRUE-D system itself. This allows you to have the TRUE-D in use when  you need it and powered down when you don't, saving precious battery power for FPV that matters.

Working Mode

Offering you the ability to save (8) total channels, Working Mode makes it easy for you to choose the best channel based upon past preferences for the best known performance.

Manual Mode

Straightforward and to the point, Manual Mode gives you complete control, allowing you to select any of the (40) channels available for optimum FPV.

Auto Mode

Make life simple. With Auto Mode, the TRUE-D system does all the work for you by locking onto the video frequency being used, allowing you to simply fly without fuss or bother.

40 Channel Ready

Optimized with a total of (40) available channels, the TRUE-D covers all the bases, allowing you to use nearly any video transmitter available today.

Ready, Set, Raceband

Ready to race with built in Raceband frequencies, the TRUE-D incorporates Raceband support for track ready application.

Dominate the Dominators

Designed specifically for the FatShark Dominator V2 & V3 goggles, the TRUE-D optimizes the very best in FPV technology with the pinnacle in video clarity.

Firmware Simplified with All New USB

Making life easy, the all new V3 TRUE-D incorporates a built in USB port, allowing firmware updates to be smooth, simple and to the point. Incorporate this with an all new easier to use updated firmware, the TRUE-D V3 is the easiest and most powerful diversity system on the market today.

Price: $159.90
Availability:
Add to wishlist
Specs

SMA Style: SMA Jack Connector / Female

Working Frequency: 5.8GHz

Application: FatShark Dominator V1, V2 & V3 Goggles

Number of Channels: (40) Channels
