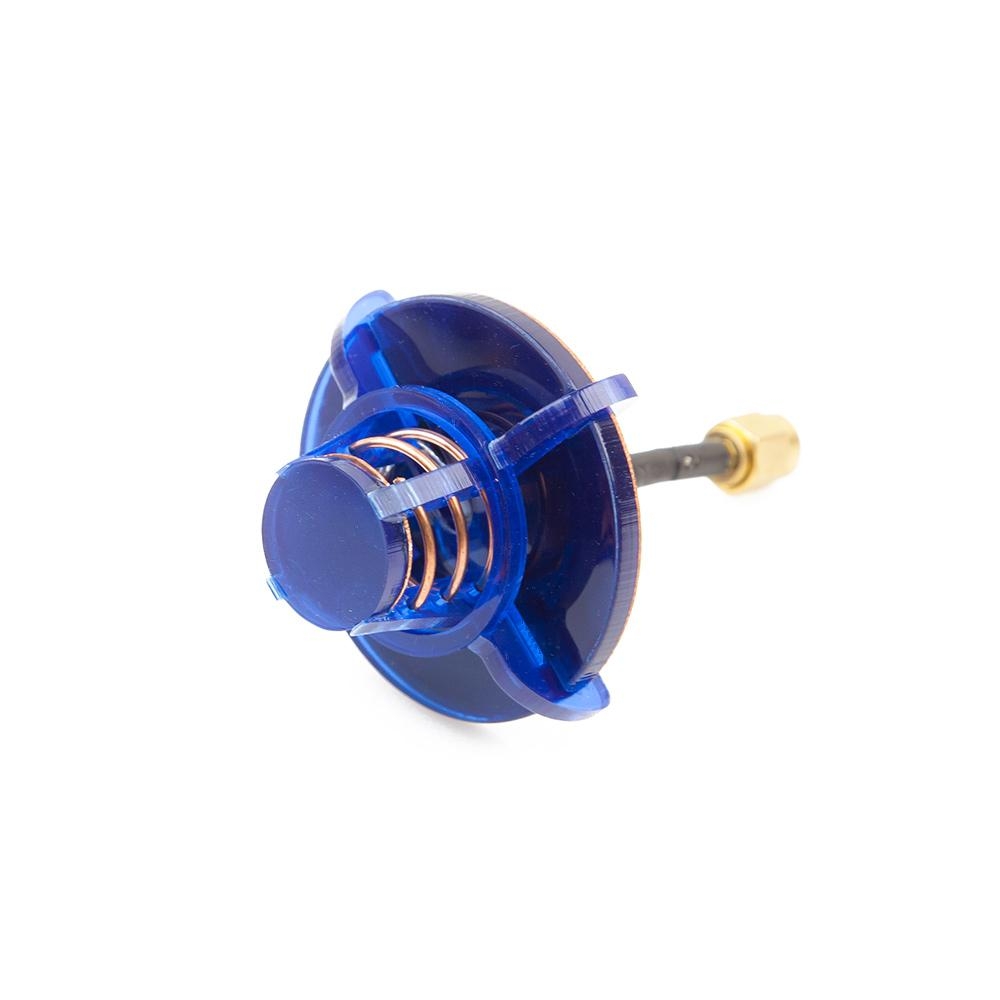

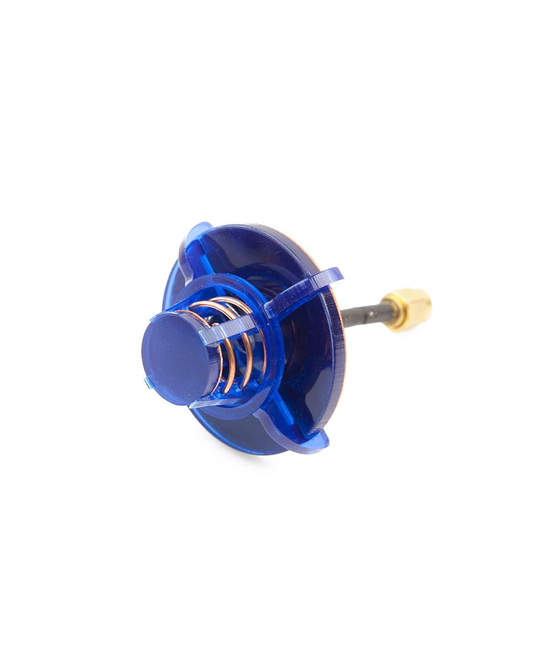

Introducing a brand new type of helical by FPVLR, the 5.8GHz 9.3dBic Parasitic Helix. The antenna is very compact at 2.75 turns, but it has a parasitic disk on top spaced in a way to obtain 9.3dbi gain, on par with a regular helix that is more than twice as long. Constructed from high quality cell cast, trasparant blue 3mm acrylic.
Use this antenna as a compact receiver antenna for your 5.8GHz ground station or FPV goggles.
Specifications
- Dimensions: 45mm bottom diameter, 25mm height (not including SMA cable)
- Weight: 25g
- dbi: 9.3dBic
- FOV: 55°
- RHCP
- Tuned to work with all 5.8GHz band
- Straight 5cm cable to SMA male
- Antenna colors may vary
