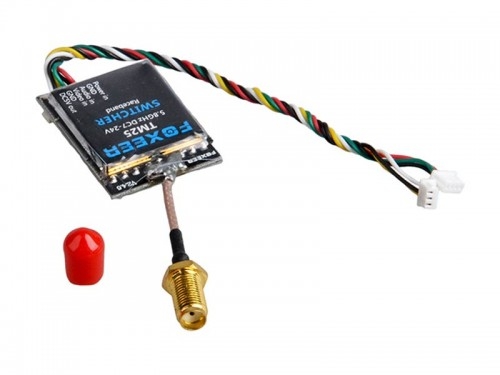

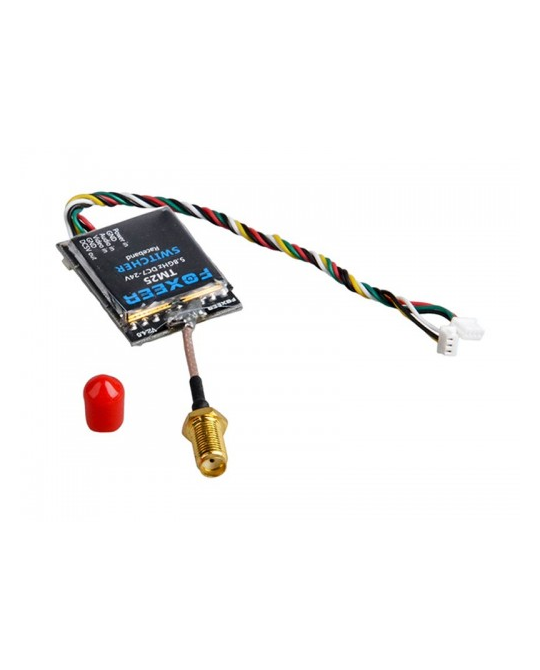

New released Foxeer TM25 SWITCHER 5.8G 25/200/600mW adjustable VTx Piatail, supports 40 channel including race band, VTx is 9.5g without antenna, good capacity of anti-interference, can change frequency/channel/power only by the button, very easy operation.
1. Long press the key for 2 seconds to enter channel setting mode, short press the key to switch 1 to 8
2. Long press the key for 2 seconds to enter channel group setting mode, short press the key to switch channel group from 1 to 5.
3. Long press the key for 2 seconds to enter power setting mode, short press key to switch 1 to 3, "1" stands for 25mW, "2" stands for 200mW, "3" stands for 600mW
4. Long press the key for 2 seconds to quit setting mode, LED display window will show present group and channel alternately, power do not show.
Specification:
Transmitter Frequency(MHz) Wideband FM Modulate
Video Format NTSC/PAL
Output Impedance 50 Ohm
Output Power 25mW 200mW 600mW
Input Voltage 7~24V
Output Voltage DC5V
Operating Temperature -10~ 85°C
Video Band Width 0~8.0 MHz
Audio carrier Frequency 6.5 MHz
Video Input Level 0.8~1.2 Vp-p
Audio Input Level 0.5~2.0 Vp-p
Audio Input Impedance 10K Ohm
Weight 9.5g
Antenna Connector SMA
FRCH CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A(1.) 5865 5845 5825 5805 5785 5765 5745 5725
B(2.) 5733 5752 5771 5790 5809 5828 5847 5866
E(3.) 5705 5685 5665 5645 5885 5905 5925 5945
F(4.) 5740 5760 5780 5800 5820 5840 5860 5880
R(5.) 5658 5695 5732 5769 5806 5843 5880 5917
