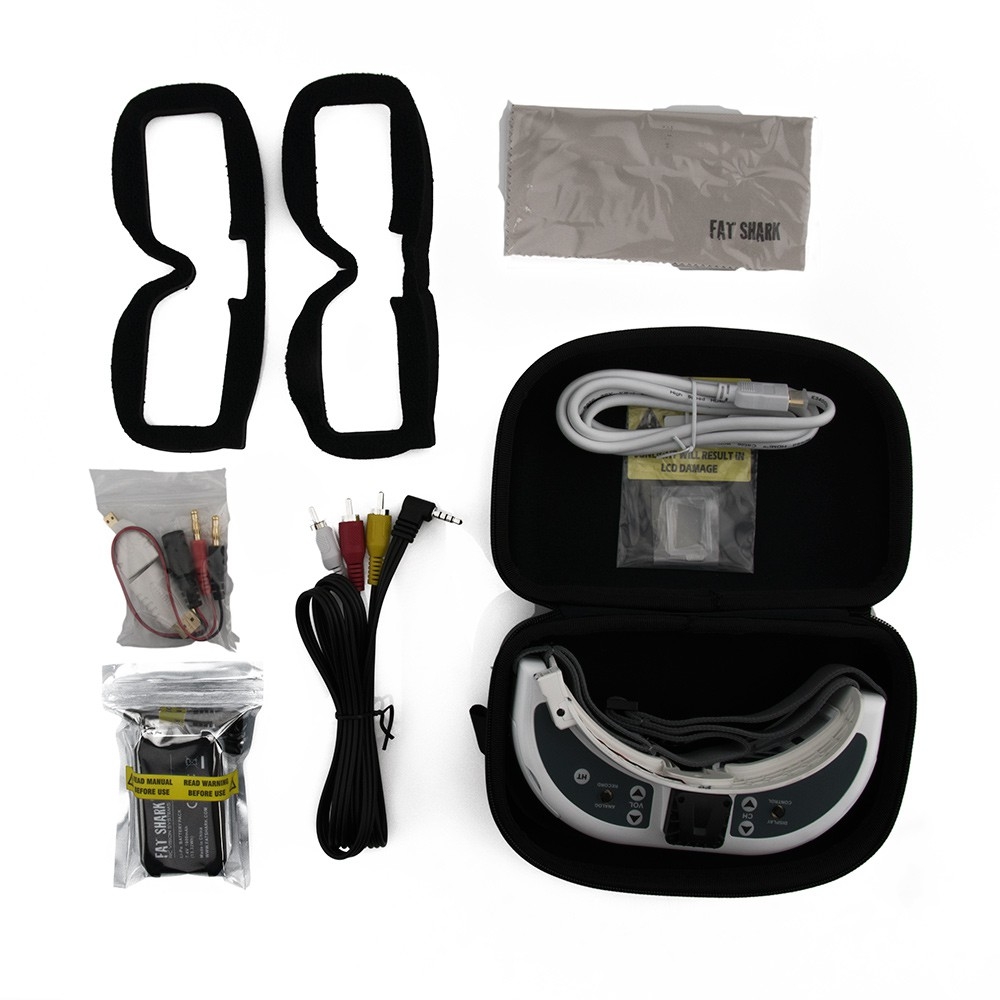

Key Features
- 3m AV cable
- HDMI cable with mini to micro and mini to standard adapters
- 1800mAh Battery with LED indicator
- Battery charge adapter
- Zipper carry case
- DC DIY cable
Overview

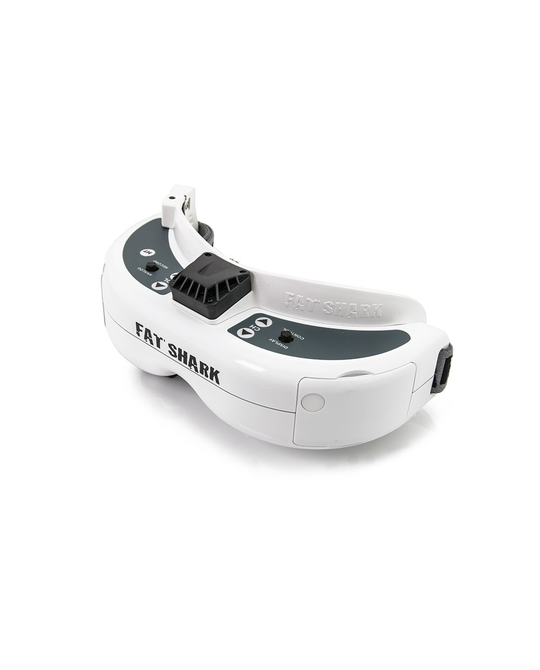

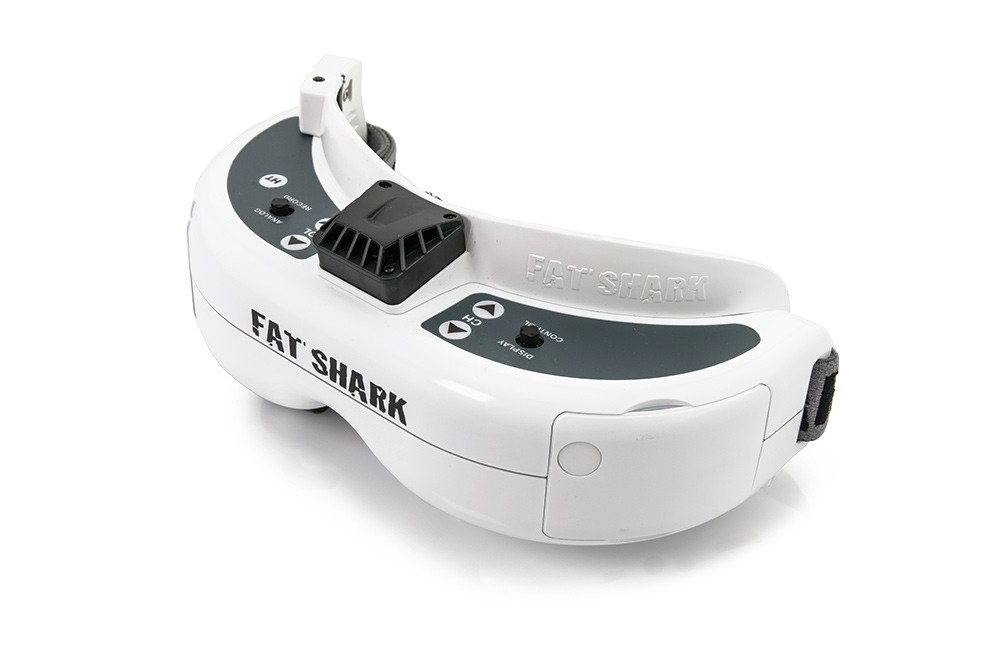

The Dominator HD V2 gets a makeover to ensure its continued dominance as the world’s premier FPV goggle. In addition to increasing eye relief and optical alignment tolerance, the image size has been enlarged to a massive 50 degree FOV. DVR can now tolerate switching between NTSC and PAL sources while recording (starts new file) and will auto save open files if power is interrupted. The HDMI port was beefed up to Mini HDMI to ensure solid connection on HD receivers. To be the best, you need to fly with the best.
Specifications

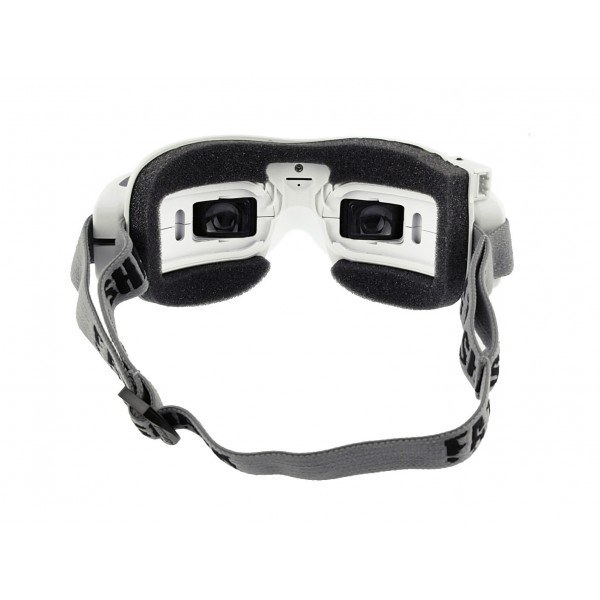

- Optics:
- FOV (field of view): 32 degrees diagonal
- Plastic optics (binocular 6p direct view optical engine)
- Interpupillary (IPD) distance: 57 to 73 mm (adjustable)
- Optional diopter lens inserts: -2, -4, -6 dpt
- Audio:

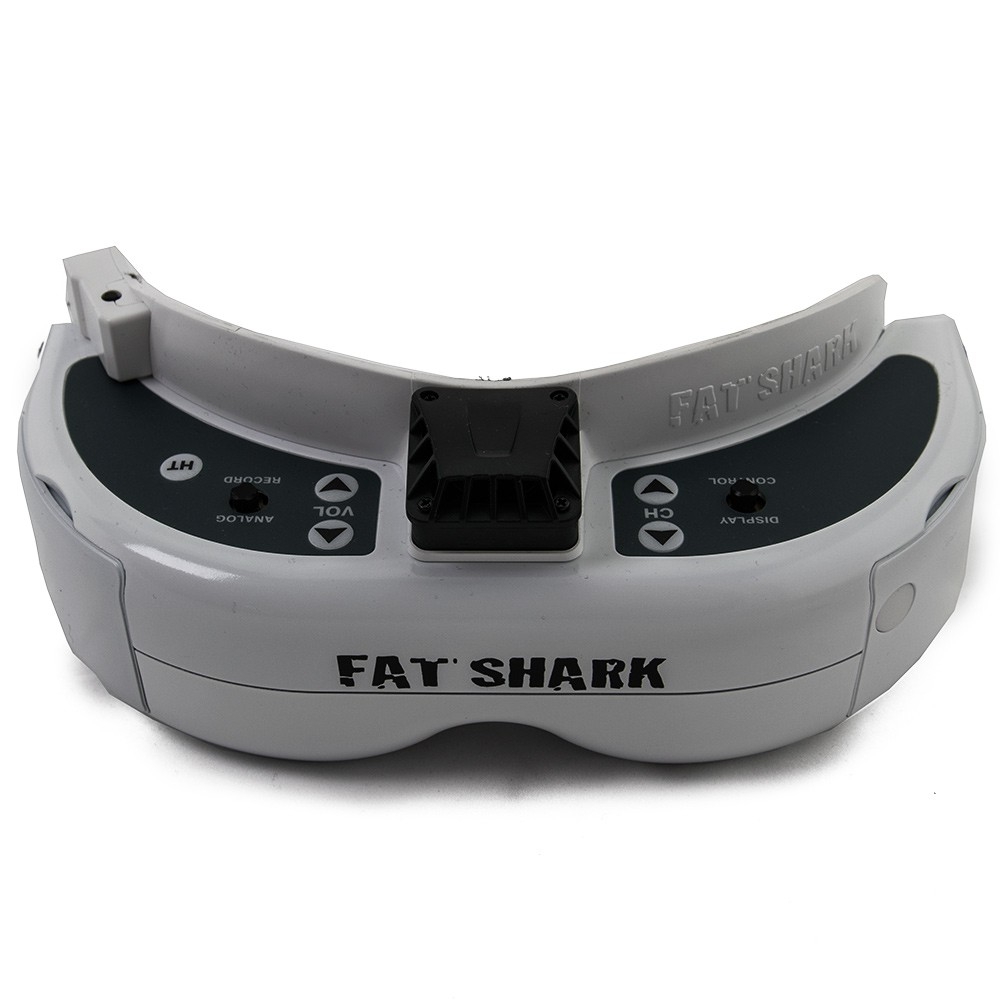

- User Controls:
- Channel selection
- Volume control
- Mode selection (wired/wireless)
- Contrast/ brightness control
- DVR control
- HT control
- Electrical:
- Power supply: 7–13V (2S/3S supply)
- Power consumption (@7.4V nominal):
- 360mA wireless mode
- 210mA direct mode (no RX)
- RF Modules (optional):
- 43 channel support on 6 bands (1G3, 2G4, 4 x 5G8)
- Mechanical:
- Ergonomic molded headset with adjustable headband
- Secured rubber eye cups for ambient light reduction
- Weight: 181g
- Display
- Full color Kopin CyberDisplay
- 600 X 480 VGA
- NTCS/PAL auto selecting
- HDMI support: 720x480p
- Head Tracker
- Modular (sold separately)
- DVR:
- MicroSD support to 32Gb
- Record rate: 6Mbps
- MJPG compression, 30 fps, AVI
- File playback (no codec support other than native recording)
- Upgradeable via SD card
- Battery:
- 1000mAh, 7.4V Lithium Polymer

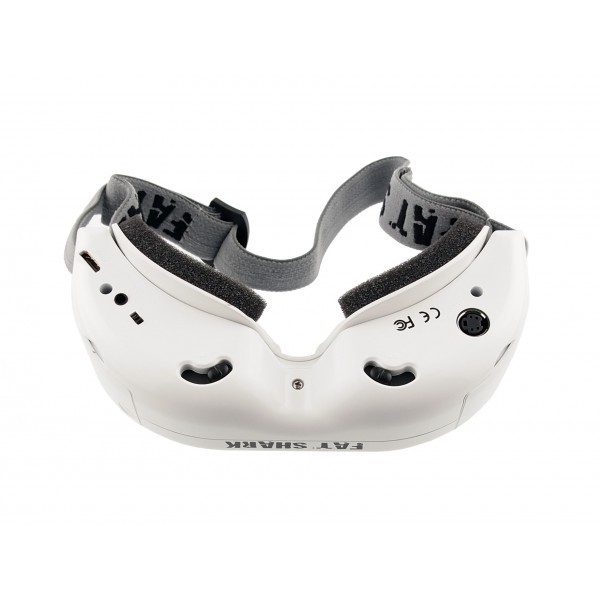

- Interface
- 3.5mm AV in/out port
- Power in port
- 3.5mm 3p earphone port
- MiniDIN4 data port (head tracking)
- MicroSD
- MicroHDMI
- RF module port
Warning: Exposing the lens to direct sunlight will result in LCD damage.
