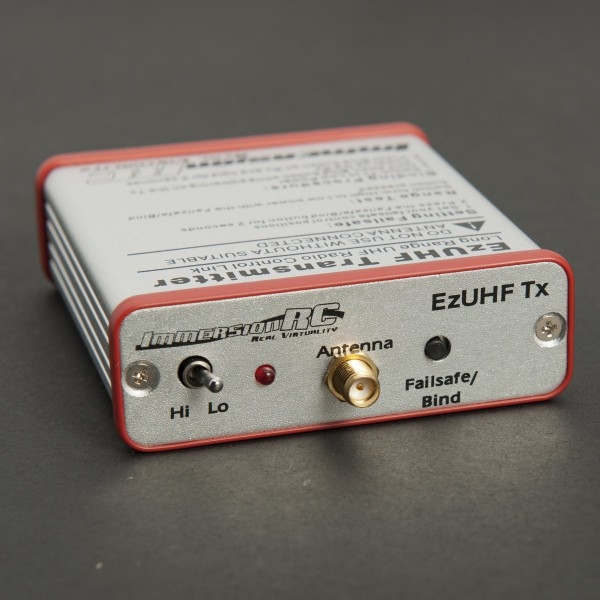

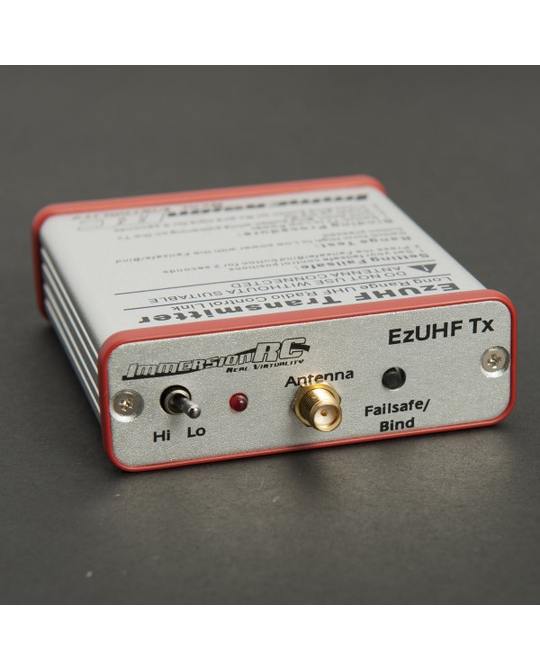

EzUHF Transmitter

-Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
-433MHz/70cm Ham band operation
-GFSK modulation
-600mW (~28dBm) output power
-Direct head-tracker input, adding head-tracker compatibility to most radios
-Power switch, boost power when at long range
-Standard SMA antenna connector, compatibility with 70cm antennas
-Flexible buffered, AC-coupled, PPM input, ensures compatibility with 3.3v thru 9.6v PPM levels
-Standard USB port (Mini-A) for firmware upgrades, and system configuration
-Single pushbutton learning of failsafe positions
-Binding function, which allows binding Single Tx->Rx, Multi Tx->Rx, and Single Tx->Multi Rx
-Mates with 8 channel, and 4 channel EzUHF receivers
-Power sourced directly from the R/C Tx (Futaba), or optional DC power jack
-Built in receiver, for future expansion
-Custom extruded brushed aluminum enclosure
