ImmersionRC

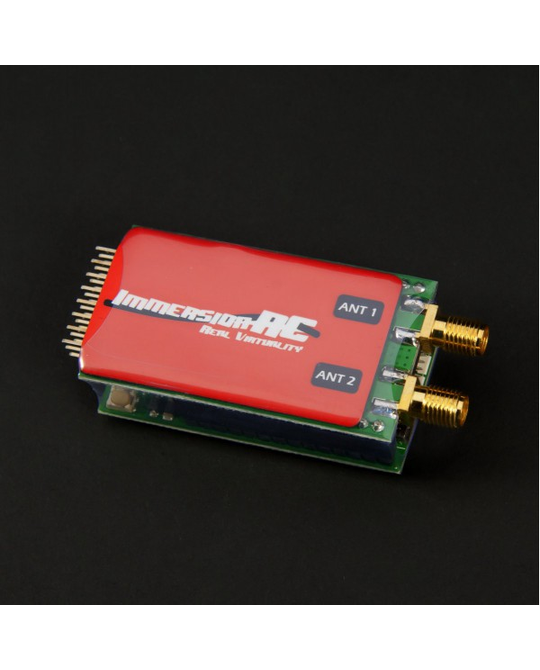

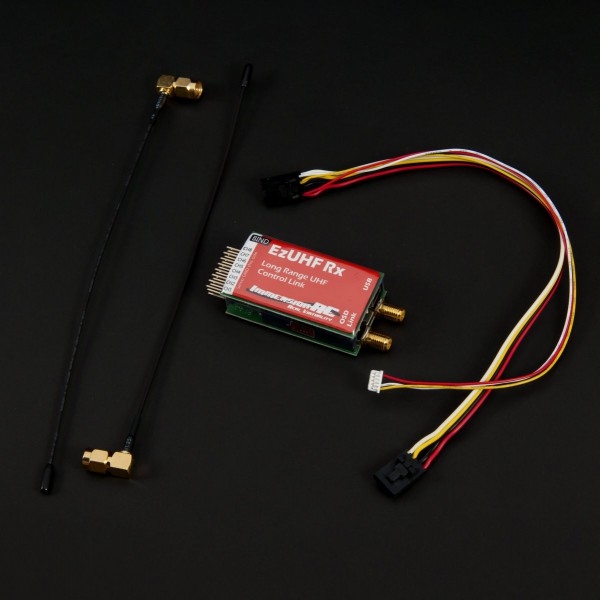

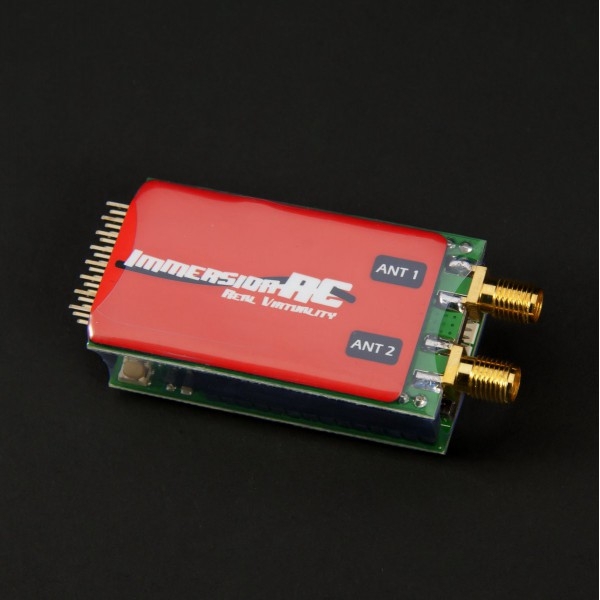

EzUHF Receiver - 8 channel diversity

$54.90
Code:EZUHF8DIV
EzUHF Receiver - 8 channel diversity

Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
433MHz/70cm Ham band operation
-112dBm Sensitivity
Bi-directional ready (contains onboard transmitter)
Diversity Antenna configuration
ceramic filtered inputs, eliminates nearby high-power video Tx interference
Mikrokopter mode, emits PPM on a chosen channel
Vehicle mode, couples two chosen channels (ideal for coupling steering servos on monster trucks)
USB Connection for easy firmware upgrades, and advanced configuration
EzLink connection to a EzOSD, providing in-flight display, and telemetry down-linked parameters:
-RSSI Ant 1, Ant 2
-Frequency Error
-SNR for each freq. bin
-Link Quality
Standard SMA antenna connectors, compatibility with standard 433/70cm band antennas
8 standard servo connectors
Failsafe, preset by button on the EzUHF transmitter
Price: $54.90
