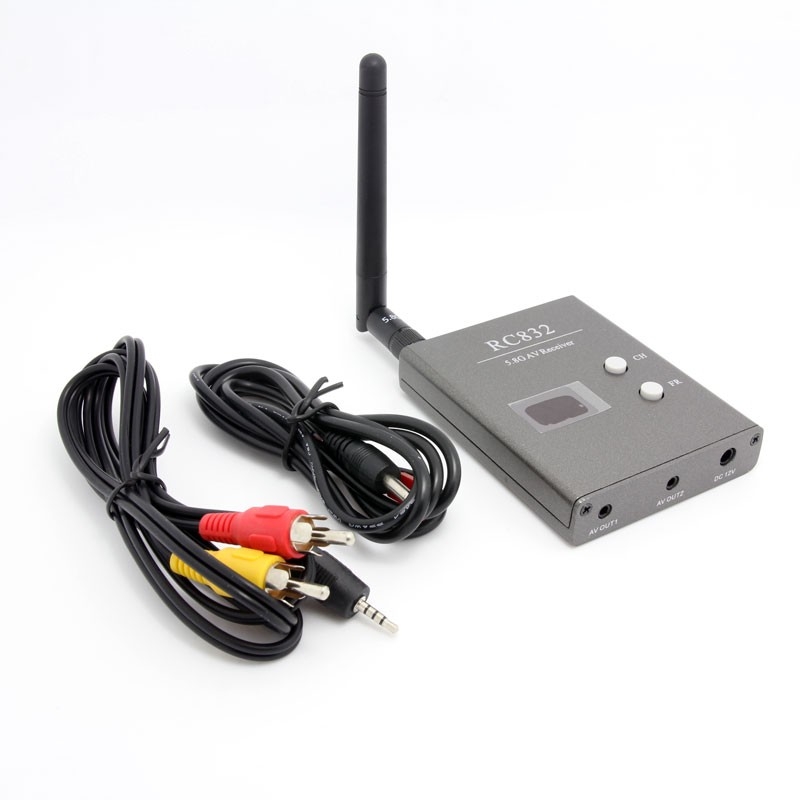

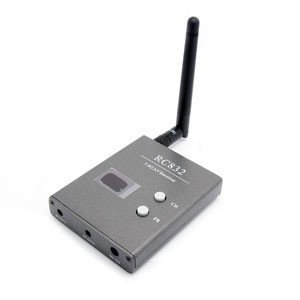

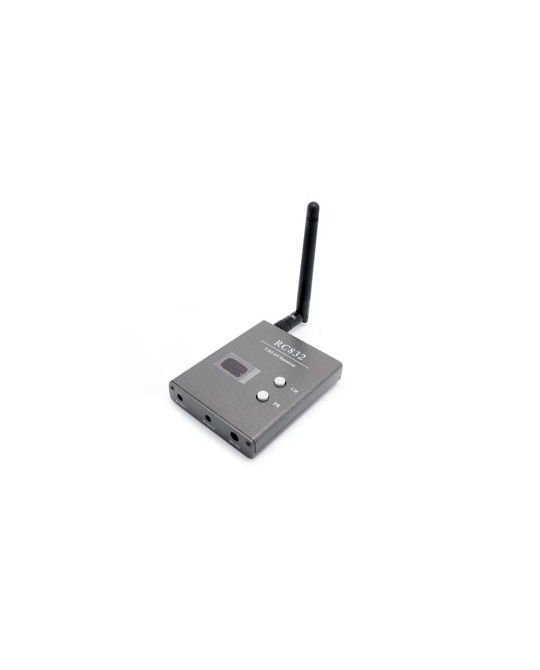

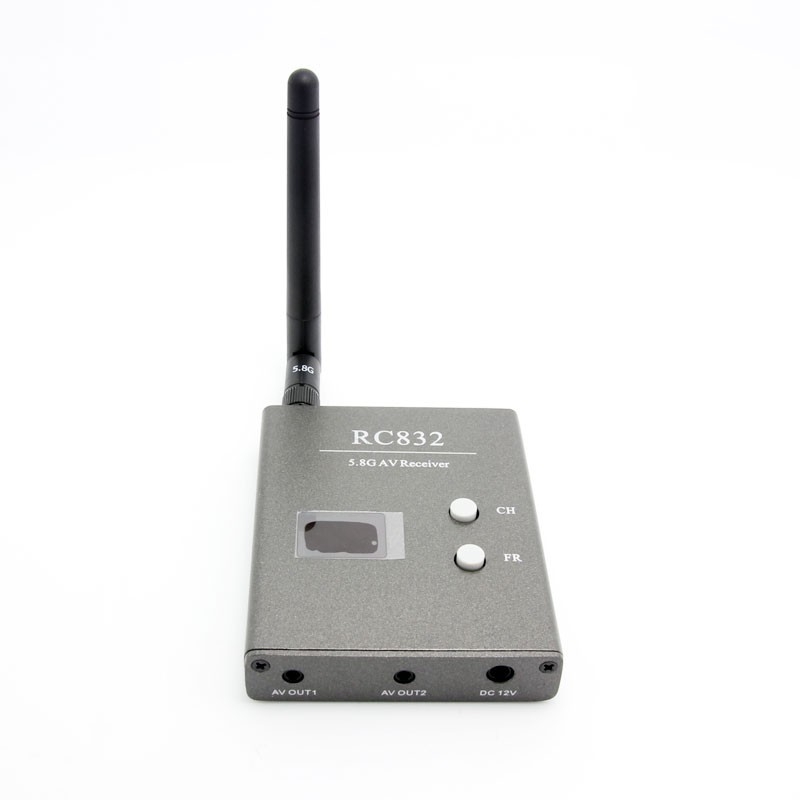

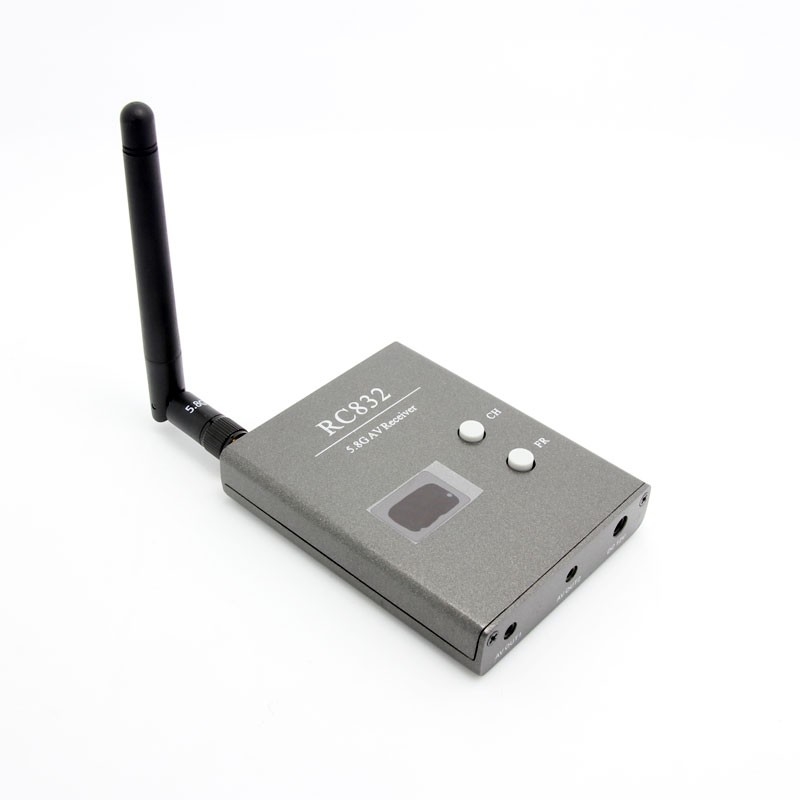

Emax Boscam 5.8G 32CH RC832 FPV Receiver - BSM- FP- 0536

$67.90
Code:EMBSMFP0536

Boscam has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.

Ideal for a wide range of aircraft, Boscam designed the RC832 Receiver to be conveniently small for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter, making channel swapping a breeze. It incorporates two independent AV outputs for both audio and video, so you have several options:  you can use a monitor and/or set of goggles, or maybe even a DVR to record your flight. Powering the receiver at the field is as easy as plugging in a 3S Li-Po battery into the included pre-wired cable with mini JST.  It just doesn’t get any simpler than this!


Features:

  • 32 channels: Cover A, B, E bands and F bands

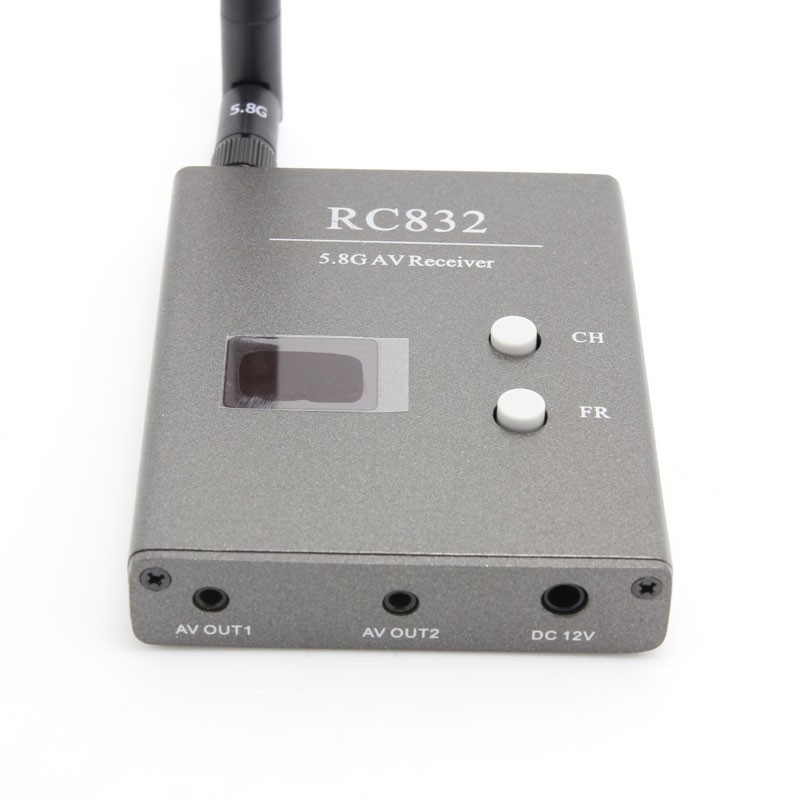

  • Two switching buttons for the band and channel
  • Two digits display for  the band and channel
  • Power off memory for last channel and band
  • dual Independent video and audio signal outputs



Frequency range:

  • FR1 5865,5845,5825,5805,5785,5765,5745,5725
  • FR2 5733,5752,5771,5790,5809,5828,5847,5866
  • FR3 5707,5685,5665,5645,5885,5905,5925,5945
  • FR4 5740,5760,5780,5800,5820,5840,5860,5880
Price: $67.90
Availability:
Add to wishlist
Specs
  • Video format supported: NTSC/PAL

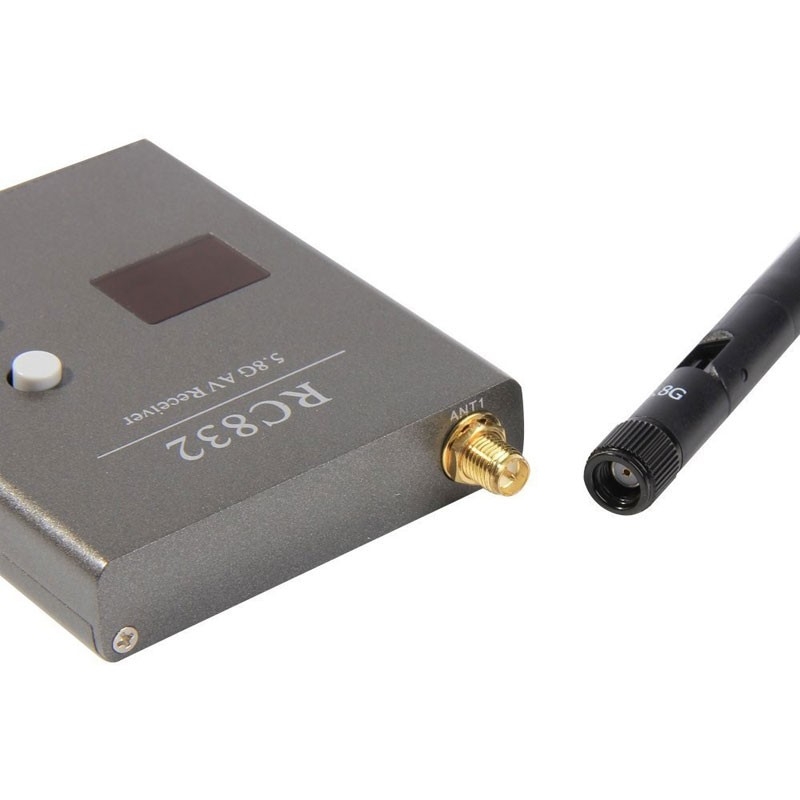

  • Antenna connection: RP-SMA
  • Power input: 12V
  • Working current: 200mA max
  • Antenna impedance: 50Ω
  • Antenna gain: 2db
  • Rx sensitivity -90dBm
  • Video impedance: 75Ω
  • Video format: NTSC/PAL auto
  • Dimension: 80x 65 x15mm
  • Weight: 85g
