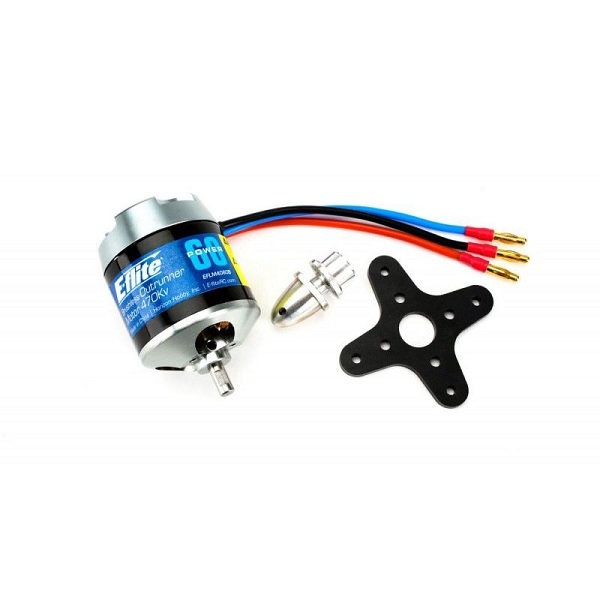

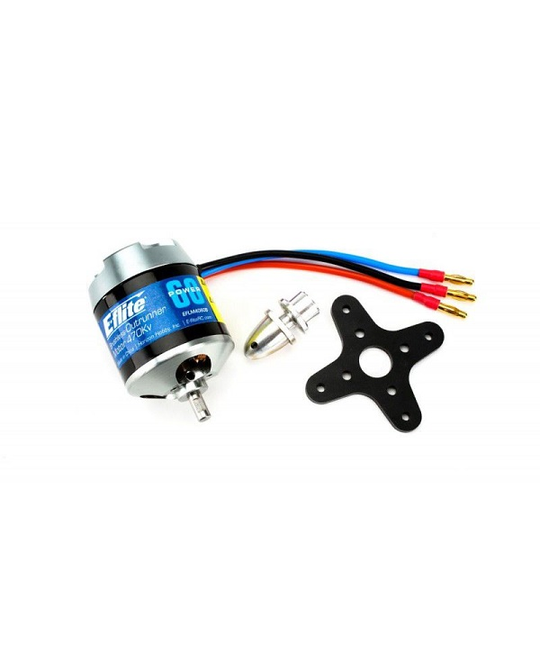

Power 60 Brushless Outrunner Motor 470Kv - EFLM4060B

Key Features

Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
High torque, direct drive alternative to brushless inrunner motors
Includes mount, prop adapter and mounting hardware
Quiet, efficient operation
External radial rotor design

Overview
Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.

Application: Airplane
Motor Type: Brushless Sensorless Outrunner
Bearings or Bushings: One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings
Connector Type: 4mm Bullet
Idle Current (Io): 2.1A @ 20V
RPM/Volt (Kv): 470Kv
Recommended Prop Range: 15 x 8 - 17 x 7 electric propeller
Recommended Speed Control: 80A brushless
Resistance: 0.02 ohm
Shaft Diameter: 0.24 in (6.0mm)
Size: Replacement for 60-size glow engines
Voltage: 22.2V (6S LiPo, 4400-5000mAh)
Wire Gauge: 14 AWG
