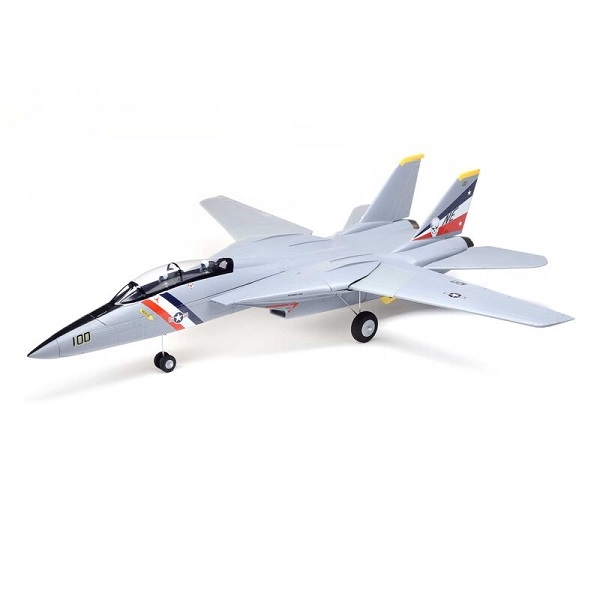

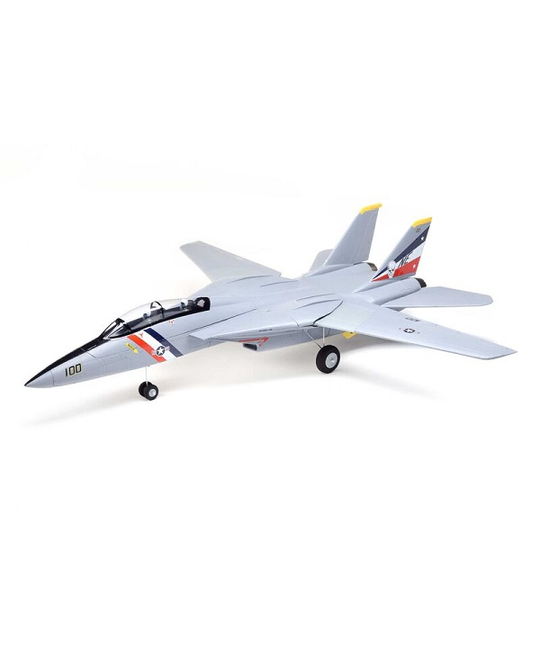

F-14 Tomcat Twin 40mm EDF BNF Basic
Roll over to zoom in or click to enlarge
F-14 Tomcat Twin 40mm EDF BNF Basic

F-14 Tomcat Twin 40mm EDF BNF Basic

F-14 Tomcat Twin 40mm EDF BNF Basic

F-14 Tomcat Twin 40mm EDF BNF Basic

F-14 Tomcat Twin 40mm EDF BNF Basic

F-14 Tomcat Twin 40mm EDF BNF Basic

EFLITE

F-14 Tomcat Twin 40mm EDF BNF Basic

$659.90
Code:EFL01450

The E-flite® F-14 Tomcat Twin 40mm EDF is scaled to be practical for more pilots to afford and fly. Functional variable-sweep wings deliver an authentic experience while AS3X® and SAFE® Select technologies make it easier to fly than any other Tomcat model yet!

Key Features
  • Scale replica of one of the most iconic and recognizable fighters ever flown by the U.S. Navy
  • The most affordable and practical to fly F-14 Tomcat EDF (Electric Ducted Fan) jet model yet
  • Functional 3-position variable-sweep wings plus full-flying stabs for an authentic and unique flying experience
  • Twin 40mm fans and high RPM outrunner motors compatible with popular 4S 2200mAh 30+C batteries
  • Real-time battery voltage, current, RPM and other telemetry data via compatible transmitters

In The Box
  • (1) E-flite® F-14 Tomcat Twin 40mm EDF
  • (2) Brushless Outrunner Motors (installed)
  • (2) 40mm EDF units (installed)
  • (3) Linear Servos (installed)
  • (1) 3-Position Linear Actuator (installed)
  • (1) Spektrum™ Receiver with (2) Brushless ESCs (installed)
  • (1) Product Manual

Needed to Complete
  • (1) Full-range 6+ Channel Spektrum™ DSMX®/DSM2® Compatible Computer Transmitter
  • (1) 4S 14.8V 2200mAh 30+C LiPo with EC3™ or IC3® Connector
  • (1) Compatible LiPo Charger

GRADUATE "TOPGUN" WITH FLYING COLORS

With the E-flite® F-14 Tomcat Twin 40mm EDF (Electric Ducted Fan) jet, more pilots can enjoy flying a replica of the iconic fighter than ever before! Developed for the U.S. Navy, the Grumman F-14 Tomcat made its first deployment in 1974 aboard the USS Enterprise, replacing the McDonnell Douglas F-4 Phantom II. This E-flite model is based on the F-14D Super Tomcat variant and the factory-applied finish pays homage to Strike Fighter Squadron 2 (VFA-2), also known as the famous "Bounty Hunters". During its 2002-2003 deployment — the final cruise with the Tomcat — VF-2 participated in Operation Iraqi Freedom flying reconnaissance, close air support, CAP and strike missions. The F-14 Tomcat Twin 40mm EDF recreates the VF-2 fighter down to the functional variable-sweep wings and full-flying stabs to deliver an authentic and unique flying experience. It's scaled to be practical for more pilots to fly and afford because it's compatible with popular 4S 2200mAh batteries. Plus it's equipped with exclusive AS3X® and optional-use SAFE® Select technologies — making it easier to fly than any other TOPGUN Tomcat EDF model yet!

Features

  • Scale replica of one of the most iconic and recognizable fighters ever flown by the U.S. Navy
  • The most affordable and practical to fly F-14 Tomcat EDF (Electric Ducted Fan) jet model yet
  • Functional 3-position variable-sweep wings plus full-flying stabs for an authentic and unique flying experience
  • Twin 40mm fans and high RPM outrunner motors compatible with popular 4S 2200mAh 30+C batteries
  • Real-time battery voltage, current, RPM and other telemetry data via compatible transmitters
  • Spektrum receiver with fly-by telemetry and industry-leading 2.4GHz DSMX® technology
  • Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Factory-installed servos for taileron and variable-sweep wing control
  • Take off from and land on smooth surfaces using the included landing gear plus steerable nose wheel
  • Remove the landing gear to hand launch then land on grass or other suitable surfaces
  • Completely factory-assembled and nearly ready to fly right out of the box
  • Factory-applied VF-2 "Bounty Hunters" squadron finish
  • Durable, fully-molded EPO airframe

THE MOST PRACTICAL F-14 EDF YET

Many RC pilots have dreamed of flying an F-14 one day — and the E-flite® F-14 Tomcat Twin 40mm EDF makes that dream a reality! It arrives fully-assembled and nearly ready to fly right out of the box including a factory-installed receiver with exclusive Spektrum AS3X® and optional-use SAFE® Select technologies. It's ready to bind to your 6+ channel DSMX®/DMS2® equipped computer transmitter, plus you'll receive real-time telemetry data including battery voltage, current, motor RPM and more via compatible Spektrum AirWare equipped radios. The twin 40mm fans and brushless outrunner motors are compatible with affordable and common 4S 2200mAh 30+C batteries to deliver an excellent blend of performance and flight times. Full-flying stabs and functional 3-position variable-sweep wings deliver an incomparable flying experience you can't get anywhere else. The fully-molded EPO airframe is durable, lightweight, and factory-finished to pay tribute to the U.S. Navy's VF-2 "Bounty Hunters" squadron. The fixed landing gear plus steerable nose wheel makes it easy to taxi, takeoff and land on smooth surfaces — or remove the landing gear for more speed and vertical performance when hand launching over and landing on grass. With the F-14 Tomcat Twin 40mm EDF you're closer to being a TOPGUN than ever before!

Video Overview



Bind-N-Fly Completion Level Advantage
Bind-N-Fly® Completion Level Advantage

Already own a Spektrum transmitter? Bind-N-Fly® (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!



Exclusive Technologies
Exclusive Technologies

This is the first F-14 Tomcat model equipped with exclusive Spektrum AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make this an easier to fly Tomcat!



Telemetry Capability
Telemetry Capability

The F-14 Tomcat Twin 40mm EDF is equipped with a control unit including a receiver and ESCs that provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more to compatible Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX20 and others) while you fly.



High Power EDFs
High Power EDFs

The factory-installed brushless power systems feature 40mm fans with high RPM outrunner motors. This twin power system setup is designed to deliver excellent performance with popular 4S 2200mAh 30+C batteries.



Functional Features
Functional Features

The full-flying stabs offers crisp and precise taileron control, and along with the functional 3-position variable sweep wings, deliver an authentic and unique F-14 flying experience.



Gear Options
Gear Options

You can use the included fixed landing gear with steerable nose wheel to taxi, take off and land on smooth surfaces. Or you can leave the landing gear off for more speed and vertical performance when hand launching over and landing on grass.



Durable Design
Durable Design

Construction with fully molded EPO material makes it possible to replicate complex details and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience.



Unique Trim Scheme
Unique Trim Scheme

The factory-applied paint and decal finish pays tribute to the U.S. Navy's VF-2 "Bounty Hunters" squadron so you'll be proud to show off your model everywhere you go.



Fully Factory-Assembled
Fully Factory-Assembled

The F-14 Tomcat Twin 40mm EDF arrives 100% factory-assembled and nearly ready to fly right out of the box! It's equipped with industry-leading Spektrum 2.4GHz technology that binds to your 6+ channel DSMX®/DSM2® equipped computer transmitter.



Bind-N-Fly Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly and fly!

This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X® (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence so you enjoy a sense of stability and precision that makes it feel like you're flying a much larger, expertly tuned aircraft.

If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required.


With SAFE Select enabled, you get:

Pitch and Bank Angle Limits

  • These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.

Automatic Self-Leveling

  • The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.

Easy Switch Assignment—No Complex Programming Required

  • The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds. For models like this one, SAFE Select is automatically assigned to channel 5 (Gear) so you can turn it on an off with any switch assigned to that channel (switch A by default on most Spektrum computer transmitters).



BatterySold Separately
ChargerSold Separately
Completion LevelBind-N-Fly Basic
Fan Size40mm EDF
Power TypeElectric
Landing GearTricycle Configuration, Removeable
MaterialEPO
Minimum Required Radio6-channel Computer (With Flight Modes)
Motor TypeBrushless
Product Length29.5" (749 mm)
Product Weight18oz (510g) w/o Battery
RadioSold Separately
ReceiverIncluded
Recommended Motor Battery4S, 2200mAh LiPo
ServosIncluded
Skill LevelLevel 3
Speed ControlIncluded
TechnologyAS3X and SAFE
Wingspan30" (762 mm)
