Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015 - HS-5245MG
Roll over to zoom in or click to enlarge
Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015 - HS-5245MG

Hitec

Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015 - HS-5245MG

$77.50
Code:HS-5245MG

HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12, 32.4x16.8x30.8mm. PRO12

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features

  • High Speed and High Torque in a Mini Package
  • Durable Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • Fast, High Torque

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset
Price: $77.50
Availability:
Enter a quantity:
Add to wishlist
Specs
Performance Specifications
Operating Voltage Range (Volts DC)4.8V 6.0V
Speed (Second @ 60°)0.15 0.12
Maximum Torque Range oz. / in.61  76
Maximum Torque Range kg. / cm.4.4  5.5
Current Draw at Idle3 mA
No Load Operating Current Draw300 mA
Stall Current Draw1,200 mA
Dead Band Width4 µs
Physical Specifications

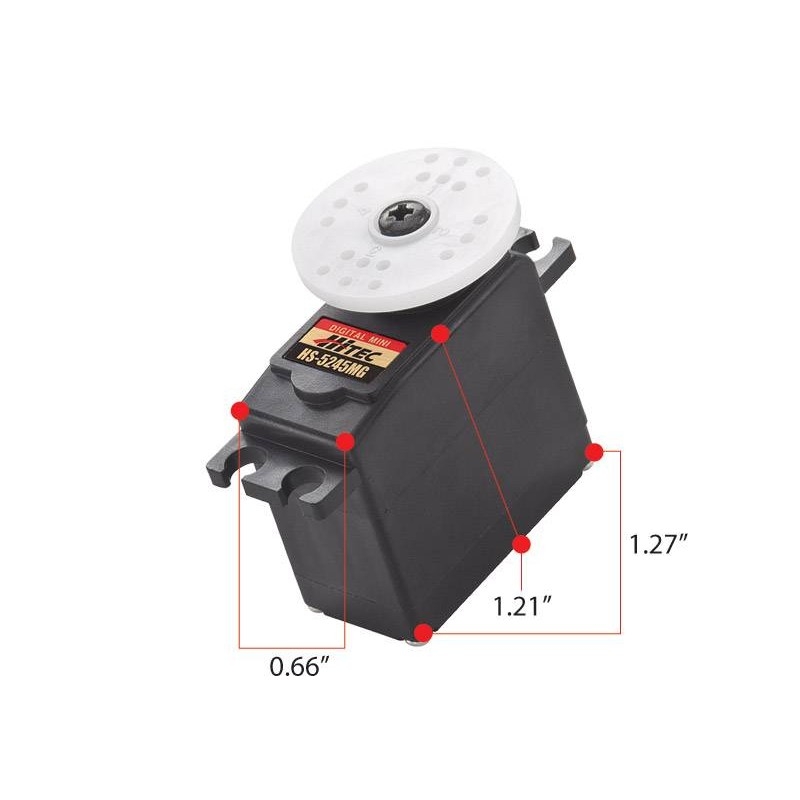

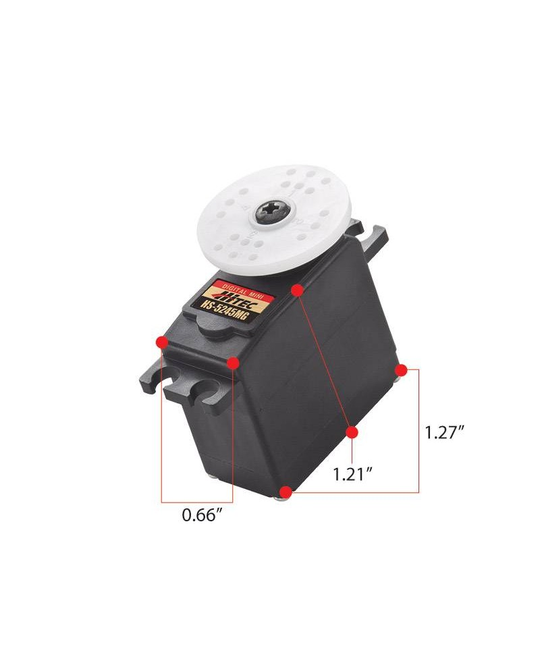

Dimensions (Inches)1.27 x 0.66 x 1.21
Dimensions (Metric)32.4 x 16.8 x 30.8
Weight (Ounces)1.12
Weight (Gram)32.0
Circuit TypeG1 Programable Digital
Motor Type3 Pole Metal Brush Ferrite
Gear MaterialMetal
Bearing TypeDual Ball Bearing
Output Shaft (type / Ømm)Standard 24
Case MaterialPlastic
Dust / Water ResistanceN / A
Connector Gauge (AWG) / Strand Count25 / 40
