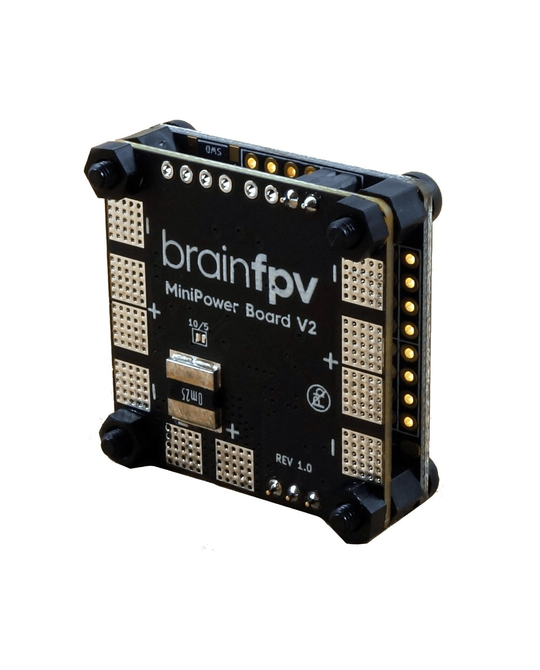

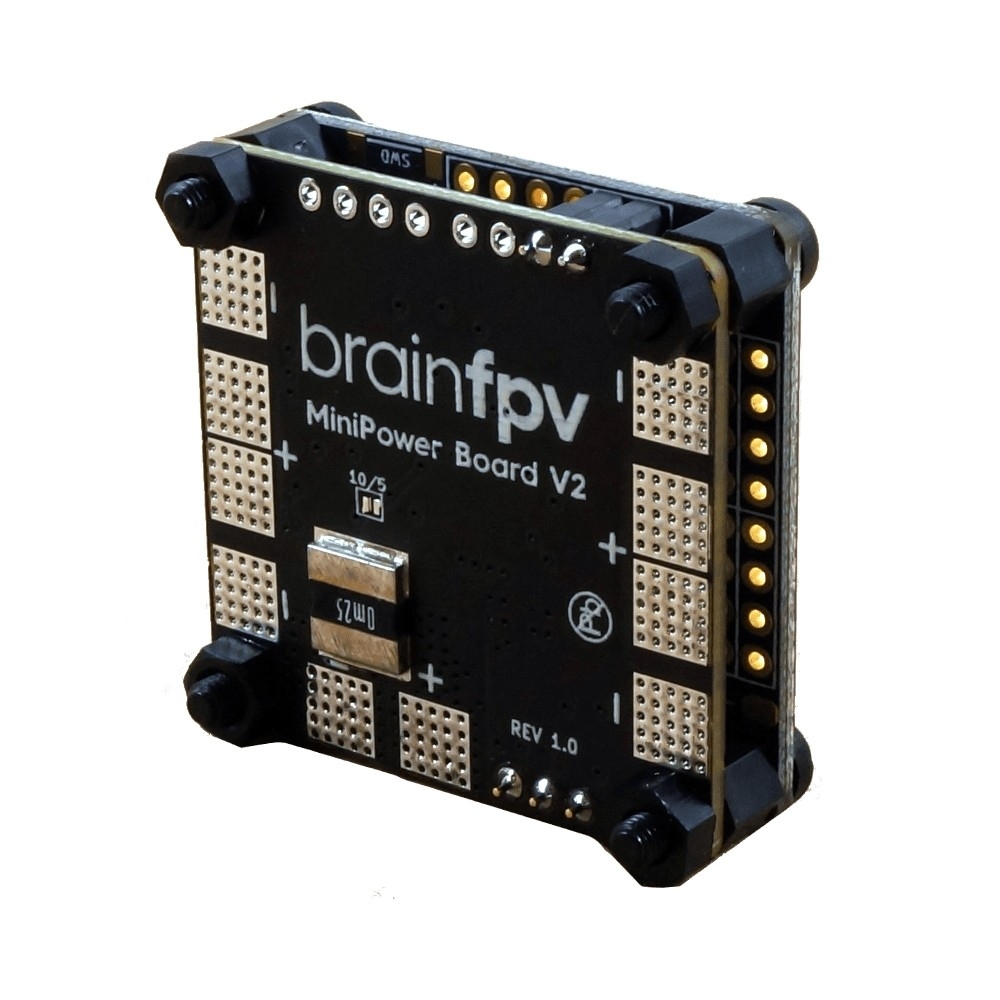

BrainFPV Mini Power Board - RE1-mPB v2
Roll over to zoom in or click to enlarge
BrainFPV Mini Power Board - RE1-mPB v2

BrainFPV

BrainFPV Mini Power Board - RE1-mPB v2

$69.90
Code:GF7353
Mini Power Board Version 2 (mPB V2) is RE1’s companion. The RE1 can be directly plugged into this UPDATED power distribution board, enabling a simple, clean build requiring no wiring between the two. Unlike competing products, MPB provides clean power for a noise-free FPV experience and includes highly accurate current/voltage sensing so you always know how much battery power you have left.
Price: $69.90
Availability:
Add to wishlist
Specs

Specifications

Power Outputs: 5V (1A), 10V (1A), filtered output (1A)
10V output can be switched to be a second 5V (1A) output by bridging a jumper
Power Input: 10V - 26V (3S - 6S LiPo battery)
Voltage Measurement: 91mV/V output (1:11 divider ratio)
Current Measurement: 25mV/A output
Filtering: LC filter to reduce motor noise and protect components from voltage spikes
Copper thickness: 4 oz (140 μm); 4-layer PCB
Maximum total Current to ESCs:80A constant, 130A burst (10 seconds)
Stacking Height: 5mm
