BLHeli_32 32bit 35A 4-in-1 ESC 2-4s w/ BEC 3A/12v, 1A/5v, DSHOT 1200
Roll over to zoom in or click to enlarge
Lumenier

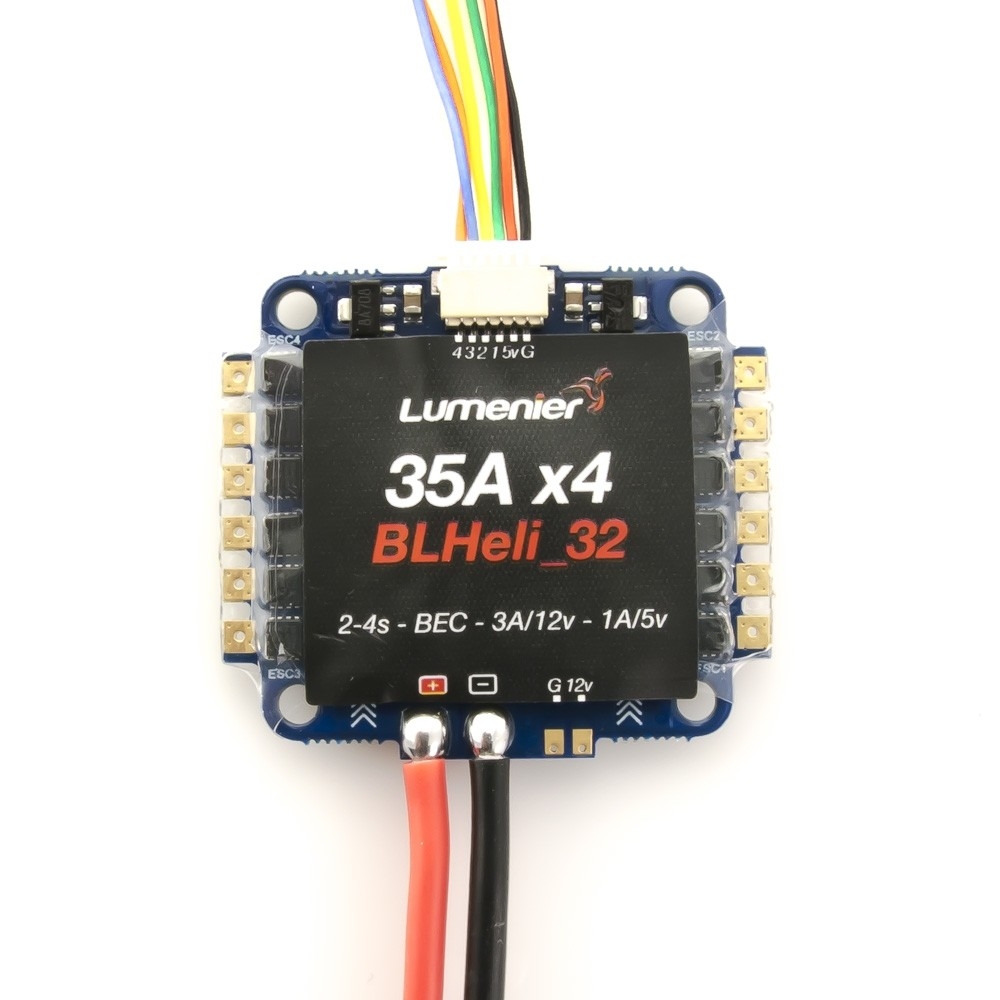

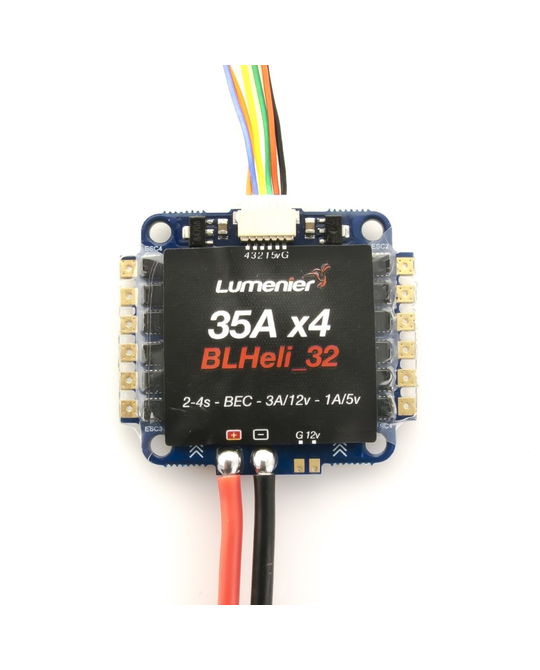

BLHeli_32 32bit 35A 4-in-1 ESC 2-4s w/ BEC 3A/12v, 1A/5v, DSHOT 1200
$119.50
Code:
GF7413
The Lumenier BLHeli_32 35A 4-in-1 ESC 2-4s w/ BEC 3A/12v, 1A/5v features the latest gen. BLHeli_32 firmware, and it is compatible with the newest DSHOT 1200 protocol. The 32bit archetecture enables the ESC to run at incredible speeds resulting in better performance, faster input signals and lower latency compared to older 8bit ESCs.
The 4-in-1 ESC is low profile and compact in size, saving weight and making builds easy. This ESC includes a powerful on board 12v 3A BEC as well as a 5v 1A BEC. The ESC features new BLHeli_32 firmware pre-installed on them.
Benefits of BLHeli_32 Firmware on 32-bit ESC
32bit processors run faster than 8bit, at which we can expect better performance from the new 32bit ESC’s. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols!
The 32-bit platform also allows more functionality and features that simply wasn’t possible on 8bit ESC’s, such as
Programmable PWM frequency of up to 48KHz
Auto-timing for higher efficiency and realiability
Voltage/Current limiting
Adjustable “Brake on Stop” force
Improve direction change in Bidirectional mode
ESC Telemetry
Configuring from FC using DShot commands
Note: Not all of these features have been implemented yet. They are ideas from the developer (aka sskaug).
Features
New 32bit Cortex-M0 running at 48MHz
On board BEC 3A/12v, 1A/5v
Latest Gen. firmware using BLHeli_32
Supports DSHOT 1200, Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection.
Lightweight, and compact size
Adaptive timing, compatible with a wide range of motors and Kv
Sychronous rectification technology adds efficiency, damped light
Powerful regenerative braking / active braking.
2-4s LiPo battery compatible
DSHOT 1200 compatible!
Specs
Input: 2-4s LiPoly
Constant: 35 Amps (per channel)
Burst: 45 Amps (per channel)
BEC: 3A/12v, 1A/5v
Dimensions: 36x42x7mm
Signal wire: 15cm
Weight: 15g (without motor wires)
Includes
1x Lumenier BLHeli_32 35A 4-in-1 ESC 2-4s w/ BEC 3A/12v, 1A/5v, DSHOT 1200
1x Set of plastic standoffs
1x 6p mini signal wire (35mm)
